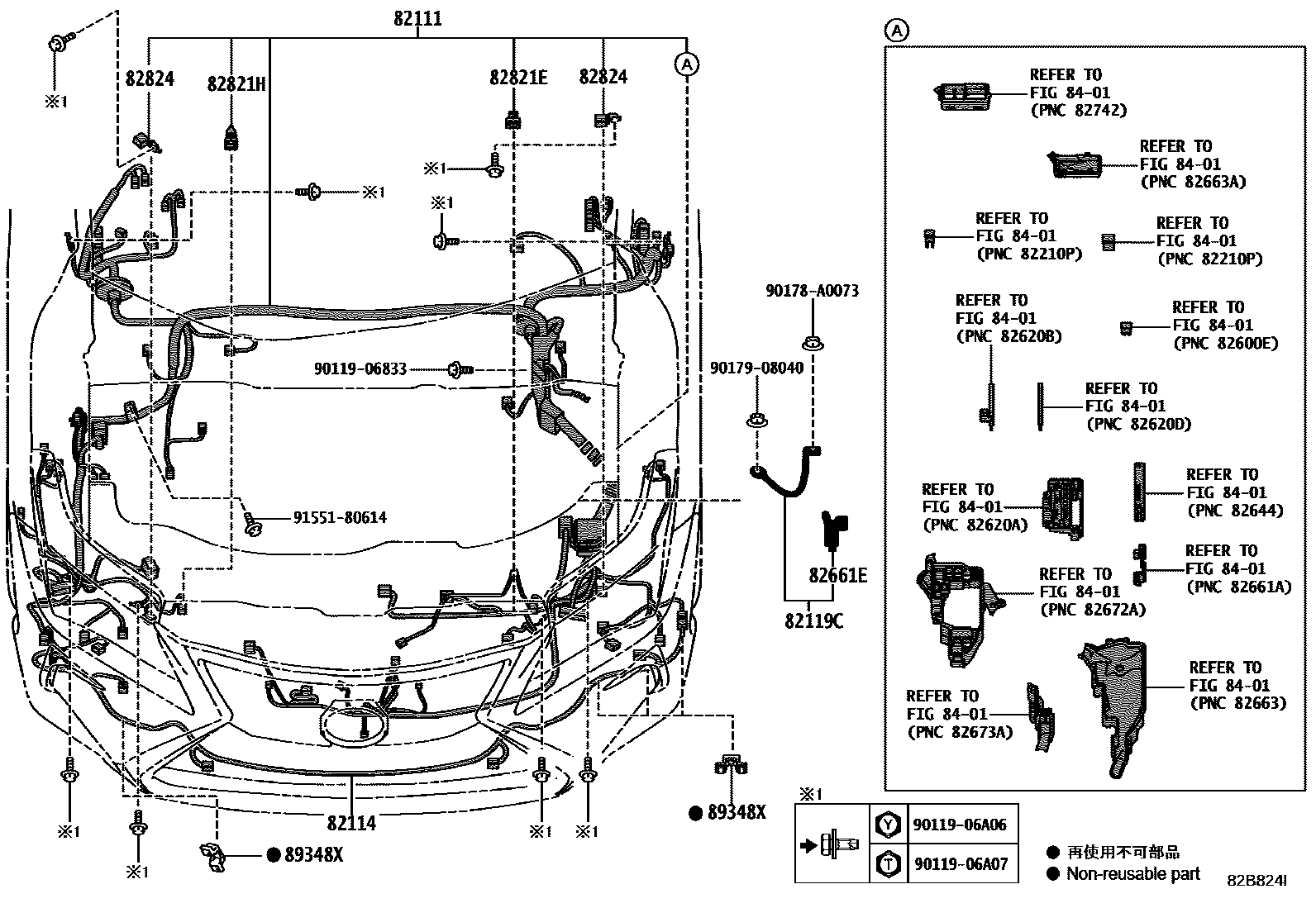

WIRING & CLAMP

0001 1�������� 0002 1����� 0003 1������������ 0004 1��� 0005 1���&��� 0006 1��������� 0007 1��� 0008 1�����&������ 0009 1�����&������ 0010 1���� 1/2 0011 1���� 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-4D860iGYL26201712-201908

main82111-4DE60iGYL26201908-202007

main82111-4DK40iGYL26202007-202209

82114WIRE, ENGINE ROOM, NO.4

main82114-48060iGYL26201712-201908

main82114-48100iGYL26201908

82119CWIRE, ENGINE ROOM, NO.5

main82119-48030iGYL26201712-201908

82661ECOVER, RELAY BLOCK, SIDE NO.2

main82661-48150iGYL26201712-201908

82821ECOVER, CONNECTOR

main82821-30650iGYL26201712-201908

82821HCOVER, CONNECTOR

main82821-42040iGYL26201712-201908

82824CONNECTOR, WIRING HARNESS

main82824-48020iGYL26201712-201908

8401

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iGYL26201908

9011906833

main90119-06833

9011906A06

main90119-06A06

9011906A07

main90119-06A07

90178A0073

main90178-A0073

9017908040

main90179-08040

9155180614

main91551-80614

15 parts on this diagram · 11 diagrams in section
