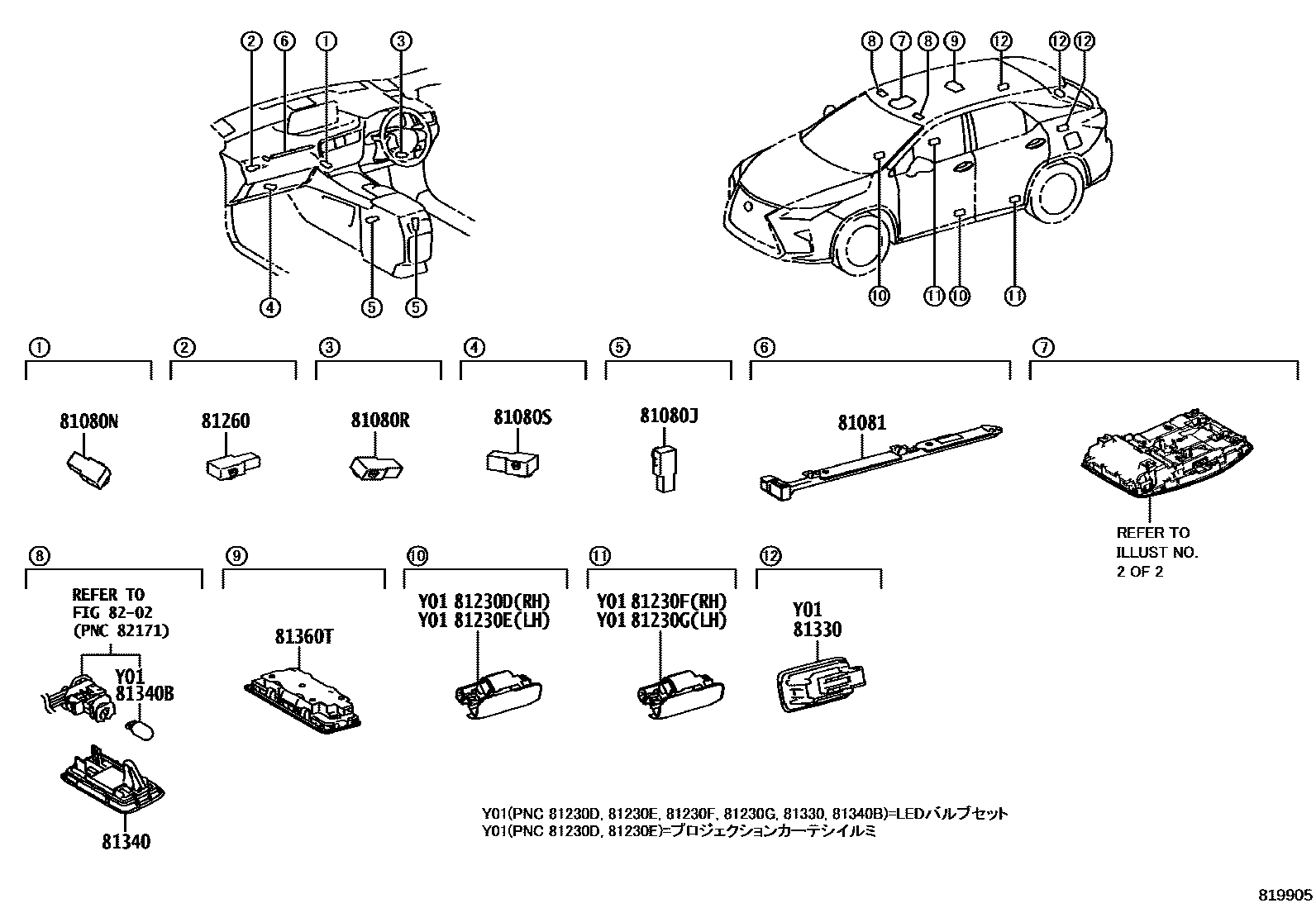

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230FLAMP ASSY, REAR DOOR COURTESY, RH
81230GLAMP ASSY, REAR DOOR COURTESY, LH
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
81360TLAMP ASSY, SPOT
8202
15 parts on this diagram · 2 diagrams in section
