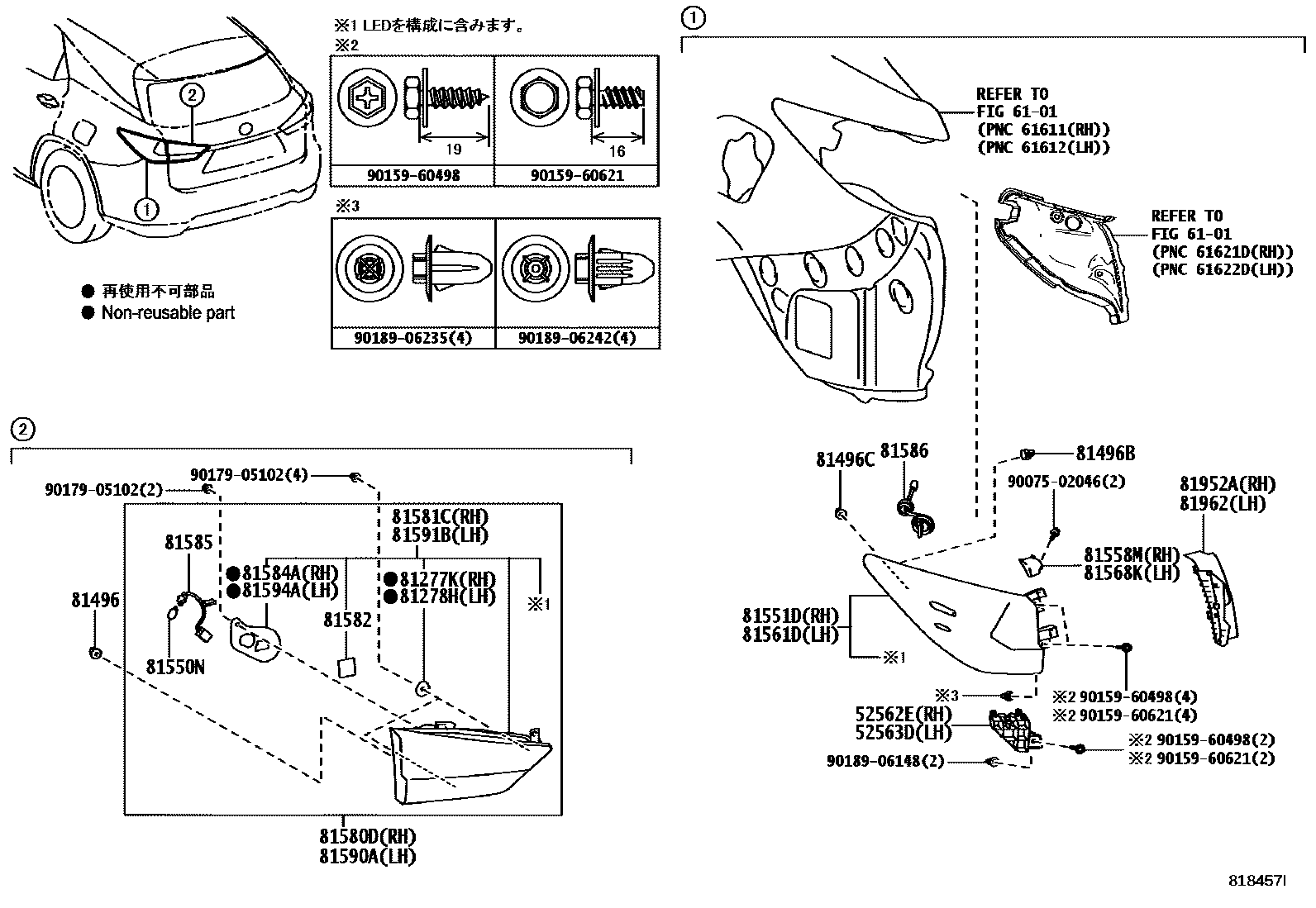

REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81277KSHADE, LICENSE PLATE LAMP, RH
81278HSHADE, LICENSE PLATE LAMP, LH
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LAMP ASSY, REAR COMBINATION, RH
81550NBULB, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81558MBRACKET, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81568KBRACKET, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81581CLENS AND BODY, REAR LAMP, RH
81582GASKET, REAR LAMP
81586CORD, REAR LAMP
81590ALAMP ASSY, REAR, LH
81591BLENS AND BODY, REAR LAMP, LH
9007502046
main90075-02046
9015960498
main90159-60498
9015960621
main90159-60621
9017905102
main90179-05102
9018906148
main90189-06148
9018906235
main90189-06235
9018906242
main90189-06242
32 parts on this diagram · 2 diagrams in section
