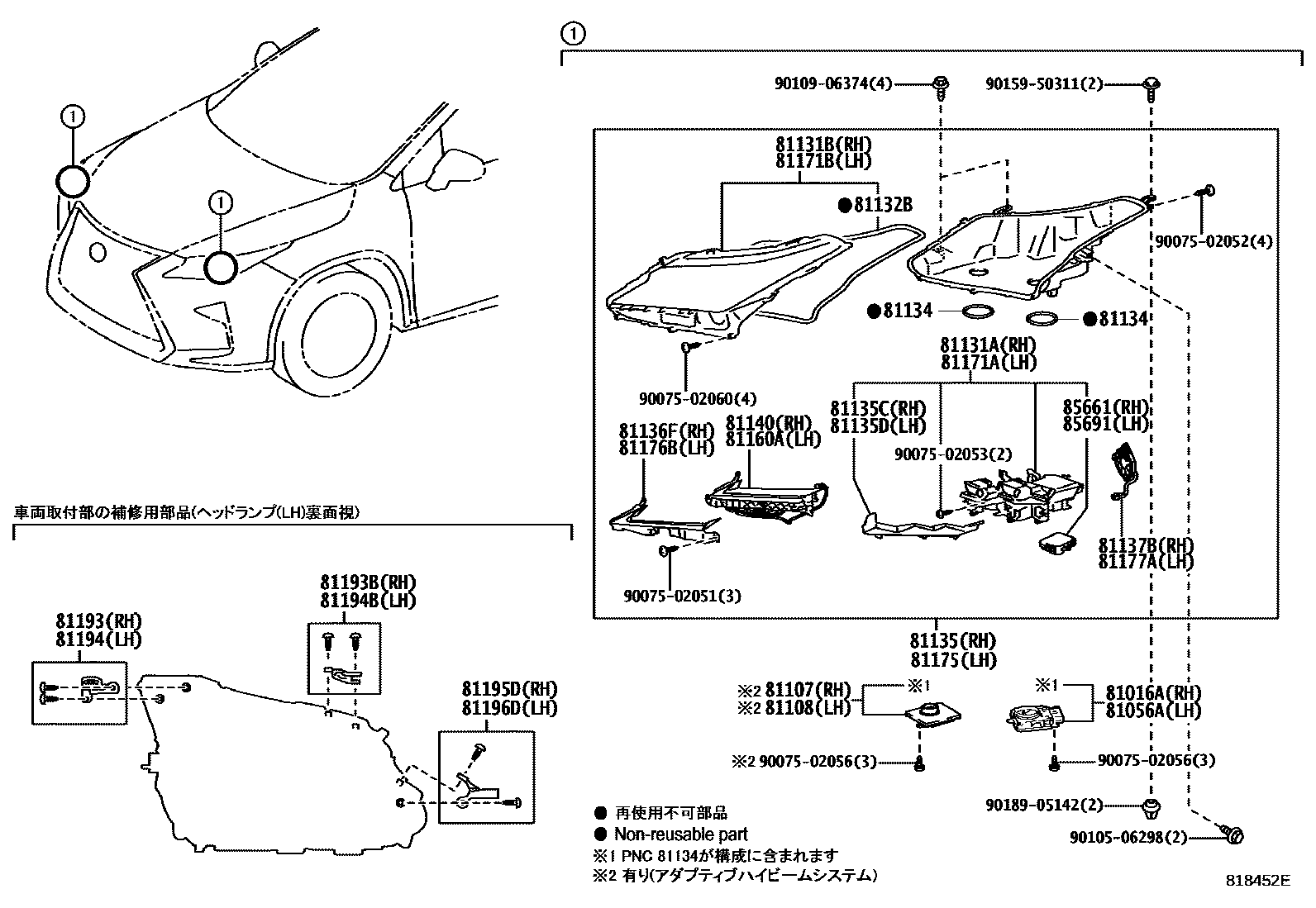

HEADLAMP
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81131AUNIT, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81135DCOVER, HEADLAMP BACK, NO.2
81136FCOVER, HEADLAMP, NO.2 RH
81137BFAN, HEADLAMP, RH
81140UNIT ASSY, HEADLAMP LED, RH
81160AUNIT ASSY, HEADLAMP LED, LH
81171AUNIT, HEADLAMP, LH
81171BHEAD LAMP LENS, LH
81175UNIT ASSY, HEADLAMP, LH
81176BCOVER, HEADLAMP, NO.2 LH
81177AFAN, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502053
main90075-02053
9007502056
main90075-02056
9007502060
main90075-02060
9010506298
main90105-06298
9010906374
main90109-06374
9015950311
main90159-50311
9018905142
main90189-05142
37 parts on this diagram · 3 diagrams in section
