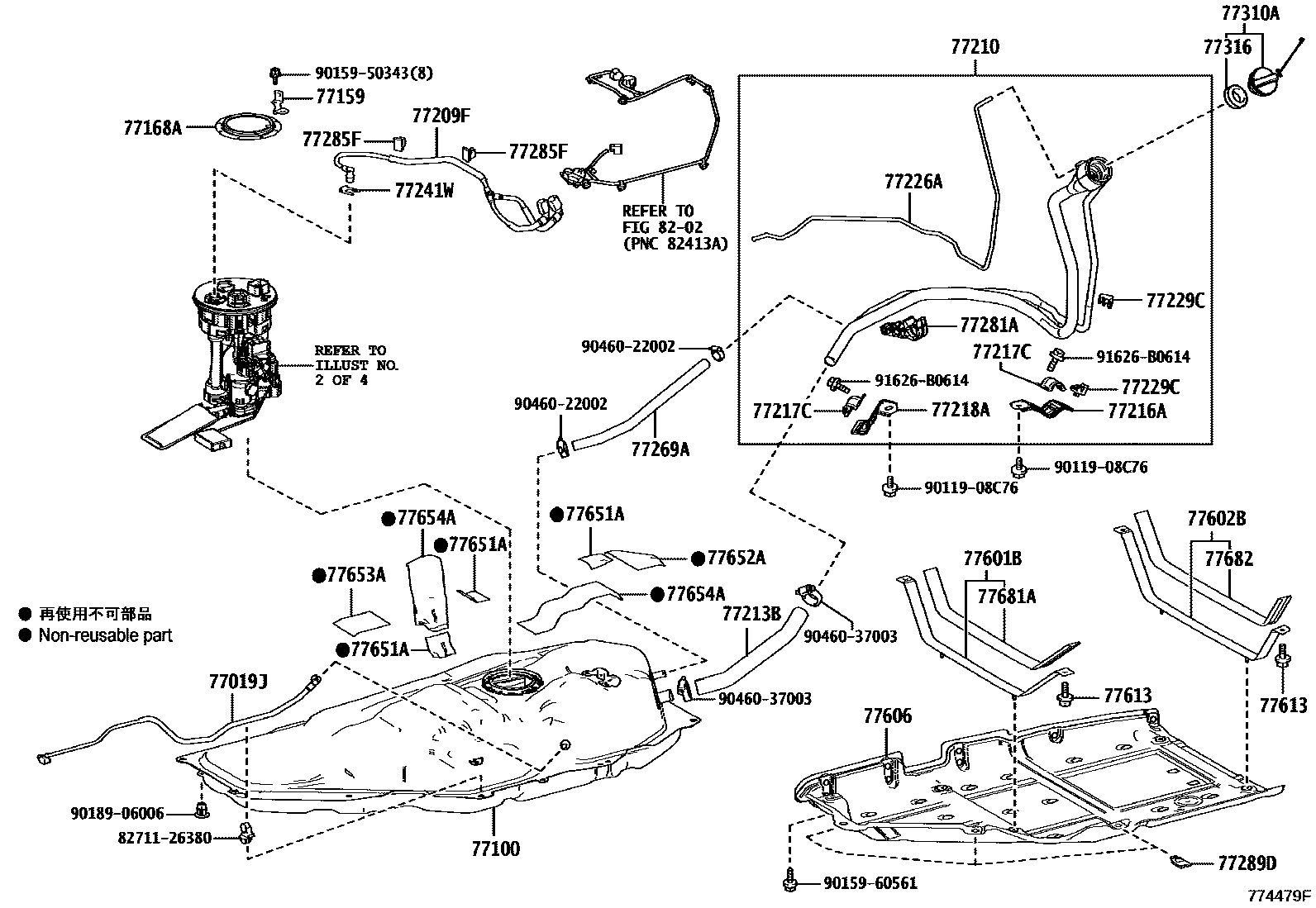

FUEL TANK & TUBE
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77100TANK ASSY, FUEL
77159PLATE, SUCTION TUBE SUPPORT
77168APLATE, FUEL TANK VENT TUBE SET
77210PIPE ASSY, FUEL TANK FILLER
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77281ACLAMP, FUEL FILLER PIPE
77285FCLAMP, FUEL TUBE, NO.1
77289DCLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
8202
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
9011908C76
main90119-08C76
9015950343
main90159-50343
9015960561
main90159-60561
9018906006
main90189-06006
9046022002
main90460-22002
9046037003
main90460-37003
91626B0614
main91626-B0614
38 parts on this diagram · 4 diagrams in section
