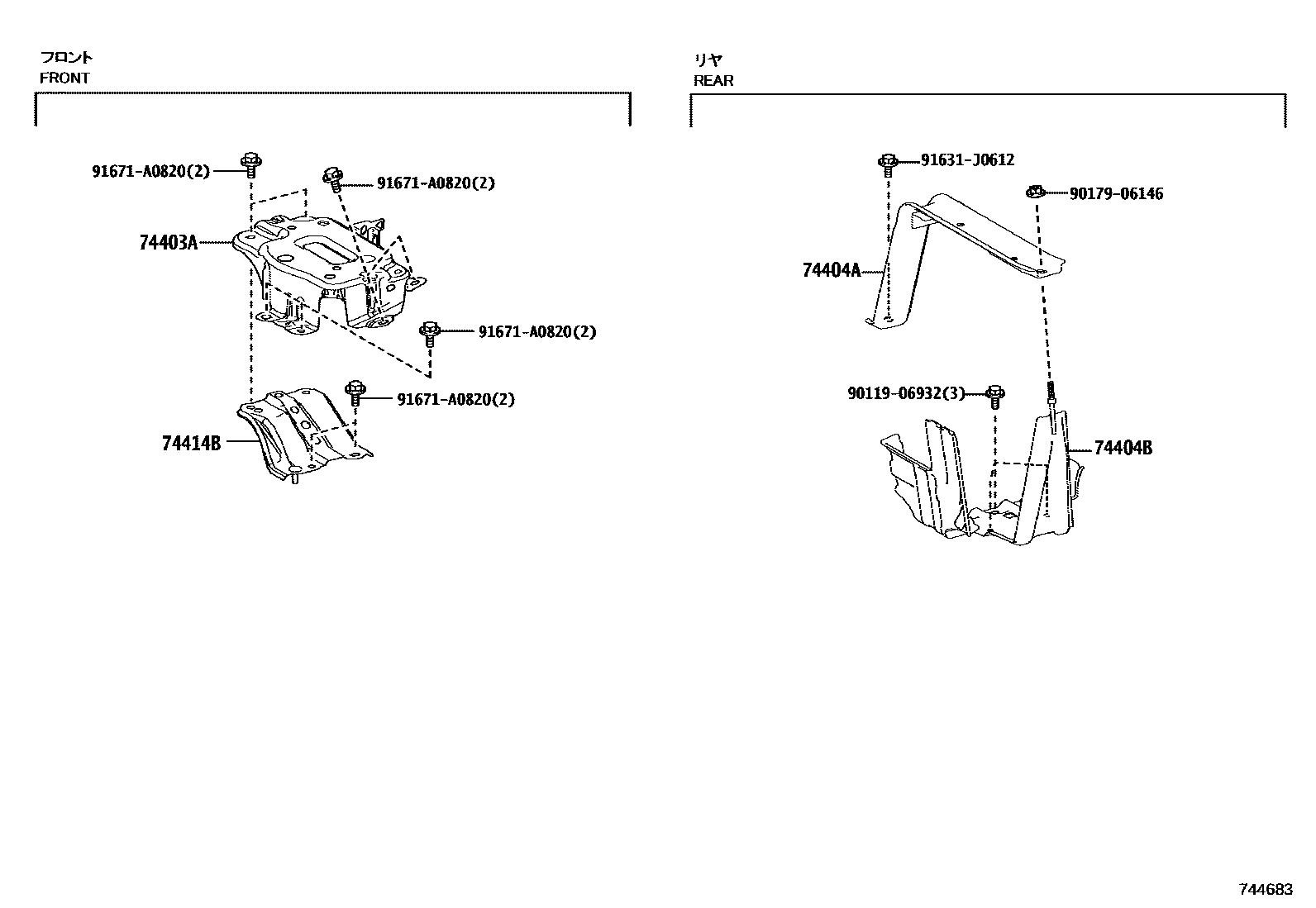

BATTERY CARRIER

74403ACARRIER SUB-ASSY, BATTERY

main74403-48090iGYL26201712-201908

74404ACLAMP SUB-ASSY, BATTERY

main74404-48190iGYL26201712-201908

74404BCLAMP SUB-ASSY, BATTERY

main74440-48020iGYL26201712-201908

74414BREINFORCEMENT, BATTERY BRACKET

main74414-48020iGYL26201712-201908

9011906932

main90119-06932

9017906146

main90179-06146

91631J0612

main91631-J0612

91671A0820

main91671-A0820

8 parts on this diagram · 1 diagram in section
