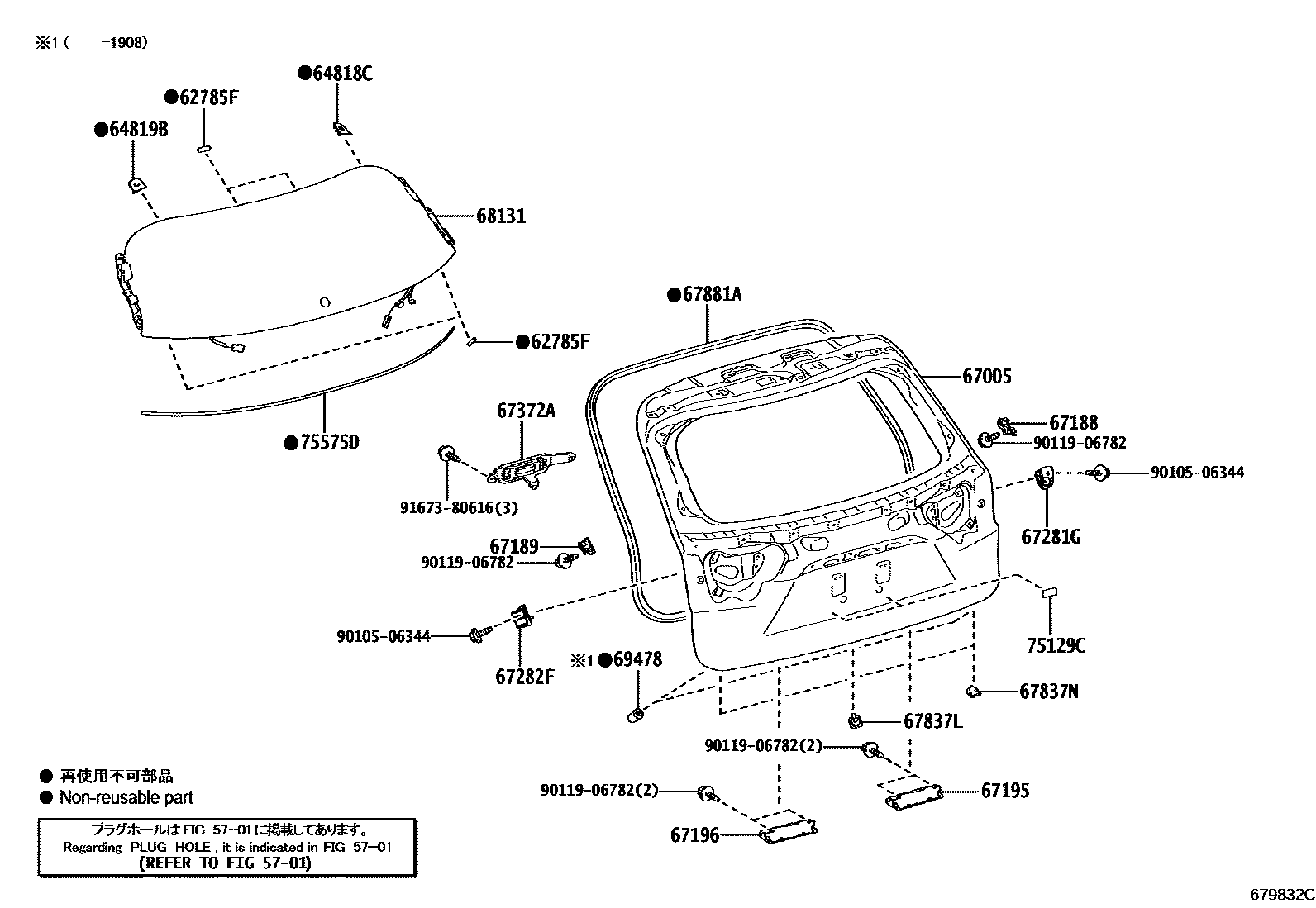

BACK DOOR PANEL & GLASS
5701
62785FSPACER, BACK DOOR GLASS
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67188REINFORCEMENT, BACK DOOR STAY, RH
67189REINFORCEMENT, BACK DOOR STAY, LH
67195REINFORCEMENT, BACK DOOR STAY, LOWER RH
67196REINFORCEMENT, BACK DOOR STAY, LOWER LH
67281GSTOPPER, BACK DOOR, LOWER RH
67282FSTOPPER, BACK DOOR, LWR LH
67372AWEIGHT, BACK DOOR
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
69478CUSHION, BACK DOOR LOWER STOPPER
75129CCUSHION, REAR LICENCE PLATE
75575DMOULDING, BACK WINDOW, LOWER
9010506344
9011906782
9167380616
22 parts on this diagram · 2 diagrams in section
