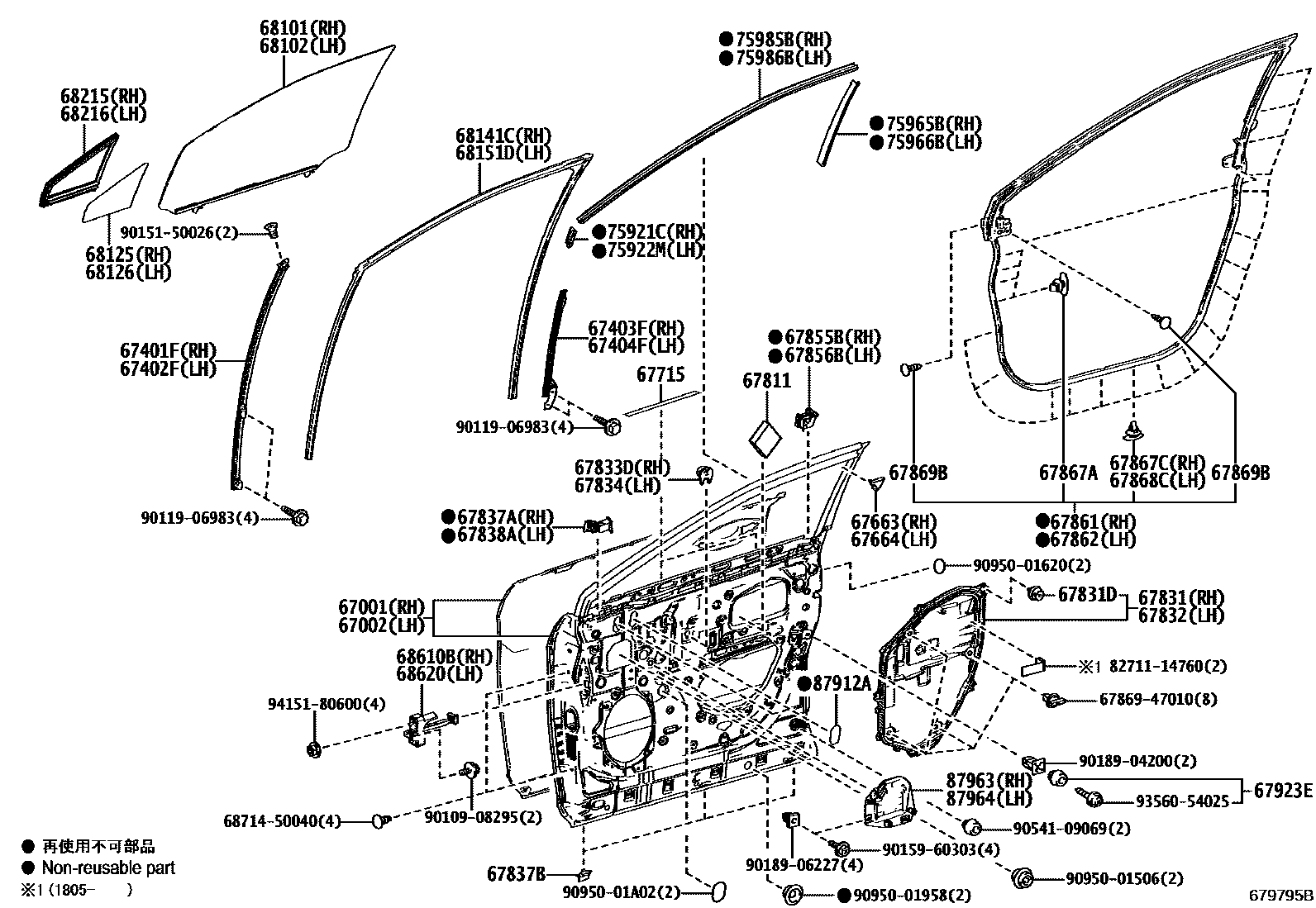

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663GARNISH, DOOR FRAME, UPPER RH
67664GARNISH, DOOR FRAME, UPPER LH
67715PAD, DOOR TRIM, NO.1
67811PAD, FRONT DOOR SILENCER
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67837ASEAL, FRONT DOOR VENT, RH
67837BSEAL, FRONT DOOR DUST PROOF
67838ASEAL, FRONT DOOR VENT, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923ECUSHION, FRONT DOOR STIFFENER, NO.1
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75965BSTRIPE, FRONT DOOR NO.4 RH
75966BSTRIPE, FRONT DOOR NO.4 LH
75985BSTRIPE, FRONT DOOR, NO.3 RH
75986BSTRIPE, FRONT DOOR, NO.3 LH
87912APROTECTOR, OUTER MIRROR
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-47010
6871450040
main68714-50040
8271114760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14760
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9015960303
main90159-60303
9018904200
main90189-04200
9018906227
main90189-06227
9054109069
main90541-09069
9095001506
main90950-01506
9095001620
main90950-01620
9095001958
main90950-01958
9095001A02
main90950-01A02
9356054025
main93560-54025
9415180600
main94151-80600
62 parts on this diagram · 2 diagrams in section
