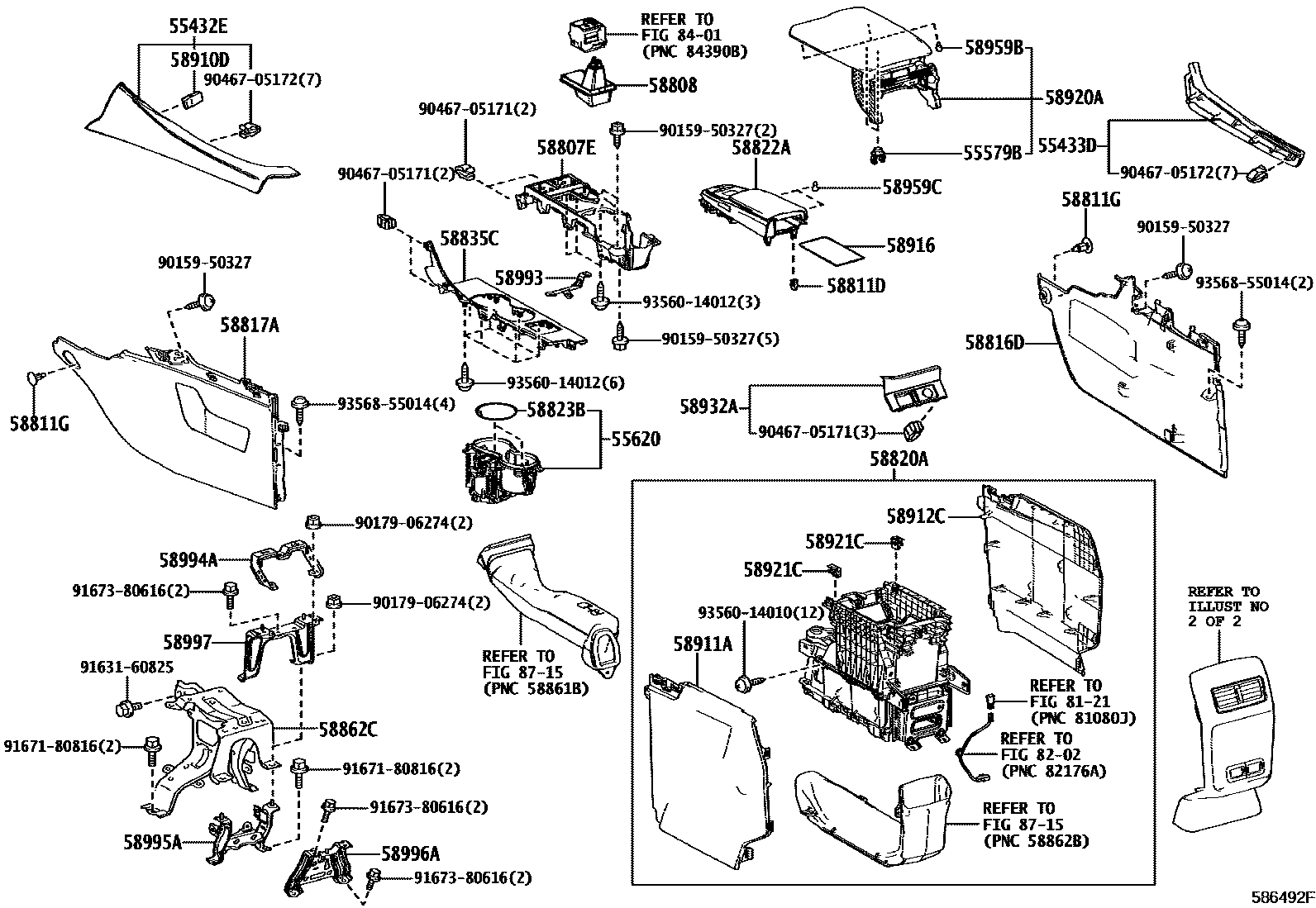

CONSOLE BOX & BRACKET
55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55579BBAND, GLOVE COMPARTMENT BOX
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/CRIMSON,TRIM4#
BLACK/LT.GRAY,TRIM0#,1#,2#,5#,6#
BLACK/LT.GRAY,TRIM1#,2#
BLACK/LT.GRAY,TRIM00,01,02,03,1#,2#,5#,6#
NOBLE BROWN/IVORY,TRIM00,01,02,03
NOBLE BROWN/IVORY,TRIM0#,5#,6#
58811DCLIP(FOR CONSOLE BOX)
58811GCLIP(CONSOL BOX)
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#,6#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#,6#
58820ABOX ASSY, CONSOLE COMPARTMENT
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
NOBLE BROWN,TRIM0#,5#,6#
58822APANEL, CONSOLE, UPPER REAR
RICH CREAM,TRIM6#
IVORY,TRIM0#
BLACK/LT.GRAY,TRIM1#,2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
RICH CREAM/TERRA COTTA,TRIM6#
IVORY,TRIM0#
BLACK/LT.GRAY,TRIM2#
NOBLE BROWN/CRIMSON,TRIM4#
TOPAZ BROWN,TRIM5#
58823BBOX, CONSOLE COMPARTMENT
58835CORNAMENT, CONSOLE BOX
DK.GRAY AND SILVER,TRIM00,1#,20,40,50,60
DK.BROWN,TRIM03,23,42,53,62
DK.BROWN,TRIM01,21,41,51,61
NATURAL BROWN,TRIM02,22,52
DK.GRAY AND SILVER,TRIM00,20,40,50,60
BLACK,TRIM1#
DK.BROWN,TRIM01,21,41,51,61
OPEN PORE,TRIM03,23,42,53,62
NATURAL BROWN,TRIM02,22,52
58862CSUPPORT, CONSOLE BOX, NO.2
58910DCLIP(FOR CONSOLE BOX)
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
NOBLE BROWN,TRIM0#,5#,6#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
NOBLE BROWN,TRIM0#,5#,6#
58916MAT, BOX BOTTOM
58920AARMREST ASSY, REAR CONSOLE
58921CPLATE, BOX, UPPER NO.1
58932AGARNISH, REAR CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121
8202
8401
8715
9015950327
main90159-50327
9017906274
main90179-06274
9046705171
main90467-05171
9046705172
main90467-05172
9163160825
main91631-60825
9167180816
main91671-80816
9167380616
main91673-80616
9356014010
main93560-14010
9356014012
main93560-14012
9356855014
main93568-55014
43 parts on this diagram · 4 diagrams in section
