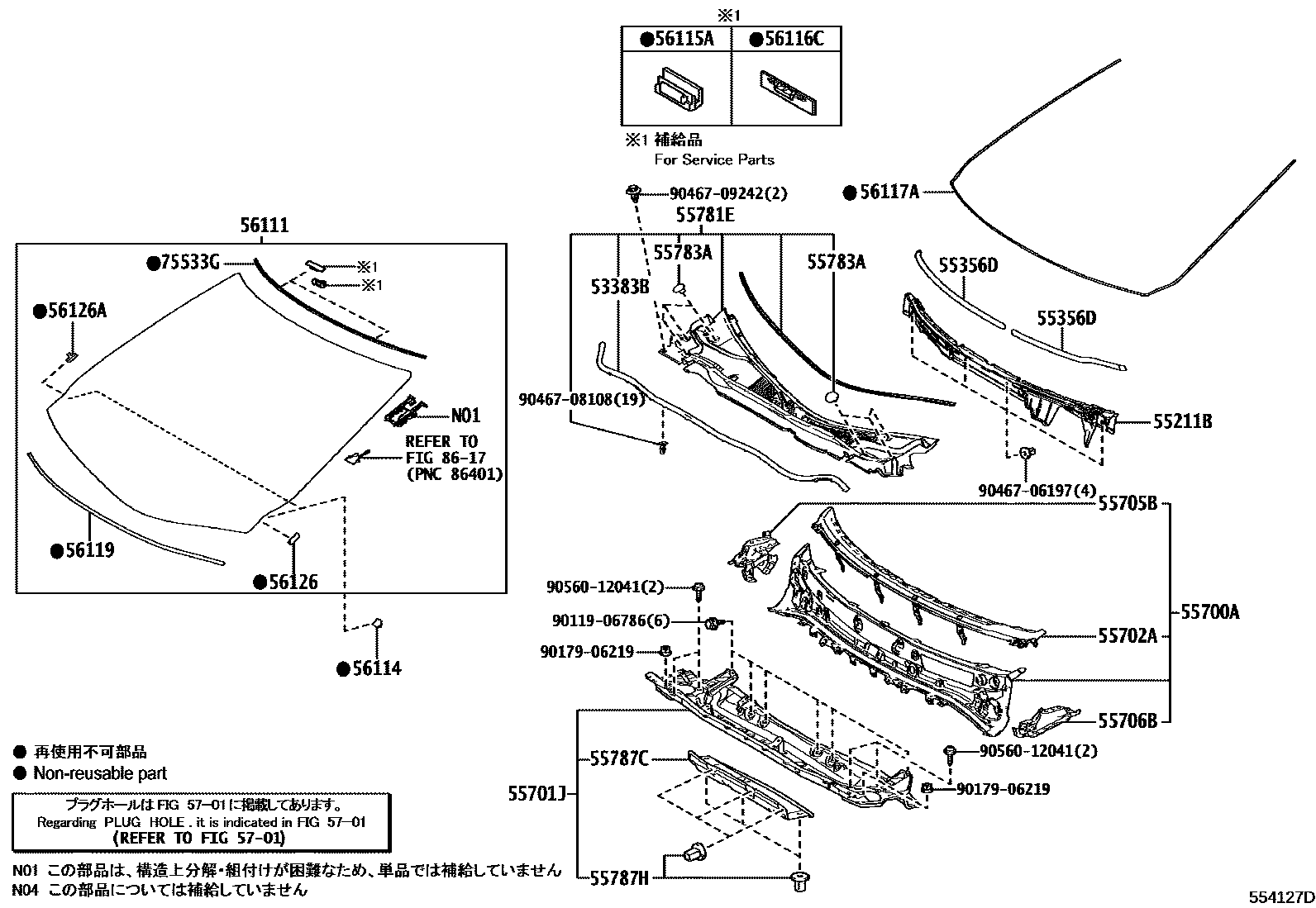

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48070iGYL26201712-201908

55211BSILENCER, FRONT PANEL

main55211-48130iGYL26201712-201908

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-48110iGYL26201712-201908

55700APANEL ASSY, COWL TOP

main55700-48140iGYL26201712-201908

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-48170iGYL26201712-201908

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-48100iGYL26201712-201908

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-48040iGYL26201712-201908

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-48040iGYL26201712-201908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-48220iGYL26201712-201908

sub55708-48221

55783APAD, COWL TOP SILENCER

main55783-48070iGYL26201712-201908

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-48060iGYL26201712-201908

55787HCLIP, COWL TOP PANEL INSULATOR

main90467-06158iGYL26201712-201908

main90467-06158-C0iGYL26201908

BLACK

56111GLASS, WINDSHIELD

main56101-48590iGYL26201908

main56101-48792iGYL26201712-201908

56114RETAINER, WINDSHIELD GLASS

main56114-48010iGYL26201712-201905

main56114-48020iGYL26201906-201908

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iGYL26201712-201908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGYL26201712-201908

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iGYL26201712-201908

main56117-50130iGYL26201712-201908

56119SEAL, WINDSHIELD GLASS

main56119-48090iGYL26201712-201908

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-48010iGYL26201712-201908

56126ASPACER, WINDSHIELD GLASS, NO.1

main56127-48010iGYL26201712-201908

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-48130iGYL26201712-201908

8617

9011906786

main90119-06786

9017906219

main90179-06219

9046706197

main90467-06197

9046708108

main90467-08108

9046709242

main90467-09242

9056012041

main90560-12041

29 parts on this diagram · 1 diagram in section
