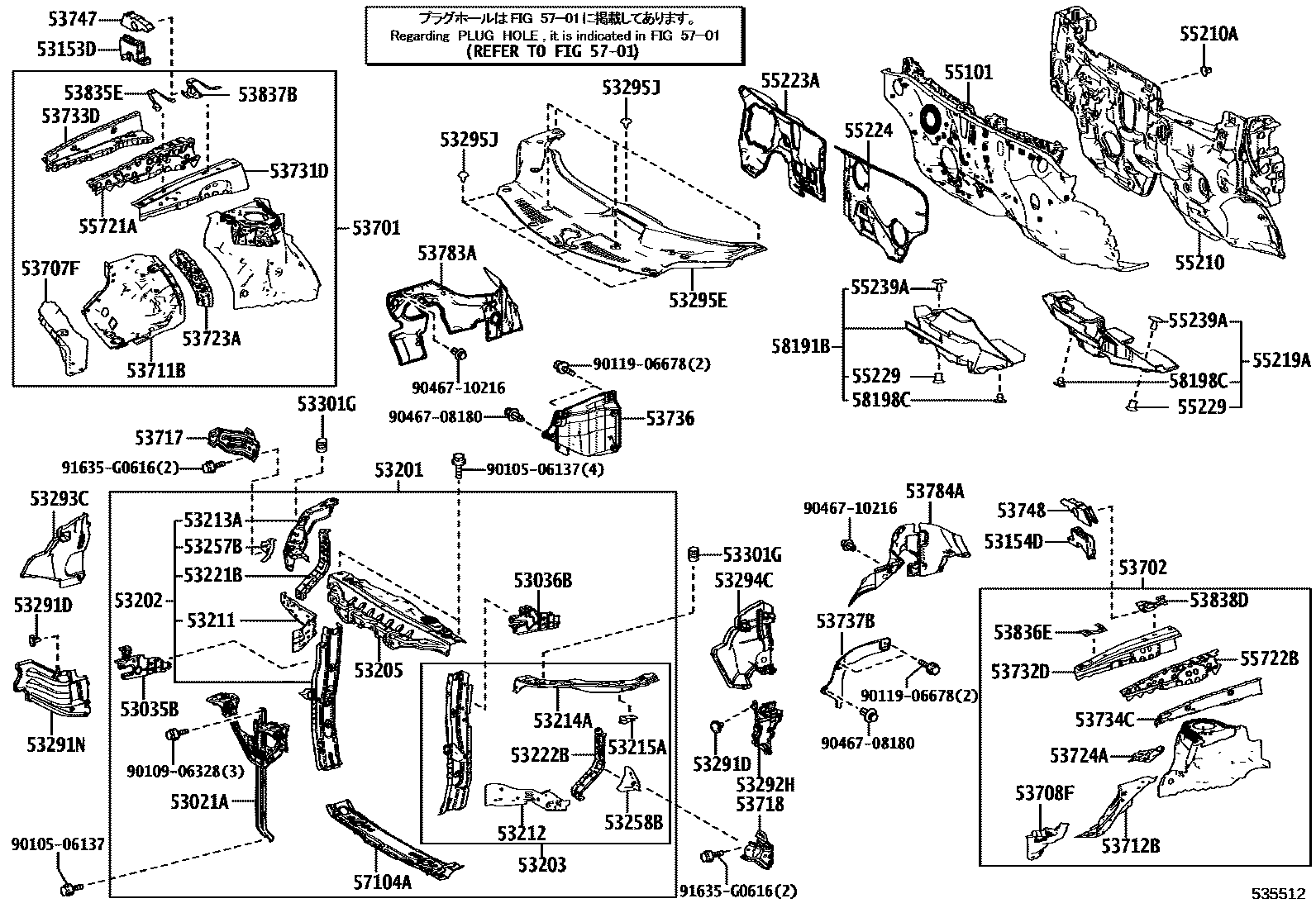

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53021AMOULDING SUB-ASSY, RADIATOR GRILLE

main53021-48010iGYL26201712-201908

53035BBRACKET SUB-ASSY, HEADLAMP MOUNTING, RH

main53035-48010iGYL26201712-201908

main53035-48020iGYL26201908

53036BBRACKET SUB-ASSY, HEADLAMP MOUNTING, LH

main53036-48010iGYL26201712-201908

main53036-48020iGYL26201908

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-48030iGYL26201712-201908

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-48030iGYL26201712-201908

53201SUPPORT SUB-ASSY, RADIATOR

main53201-48160iGYL26201712-201908

main53201-48180iGYL26201908

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-48100iGYL26201712-201908

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-48140iGYL26201712-201908

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-48070iGYL26201712-201908

53211SUPPORT, RADIATOR, RH

main53211-48030iGYL26201712-201908

53212SUPPORT, RADIATOR, LH

main53212-48050iGYL26201712-201908

53213ASUPPORT, RADIATOR, UPPER RH

main53213-48090iGYL26201712-201908

53214ASUPPORT, RADIATOR, UPPER LH

main53214-48100iGYL26201712-201908

53215AEXTENSION, RADIATOR SUPPORT, UPPER

main53215-48050iGYL26201712-201908

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-48030iGYL26201712-201908

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-48030iGYL26201712-201908

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-48070iGYL26201712-201908

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-48070iGYL26201712-201908

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07220iGYL26201712-201908

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-48020iGYL26201712-201908

main53291-48040iGYL26201908

53292HSEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-48010iGYL26201712-201908

main53292-48030iGYL26201908

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-48140iGYL26201712-201908

main53293-48160iGYL26201908

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-48140iGYL26201712-201908

main53294-48160iGYL26201908

53295ESEAL, COOL AIR INTAKE DUCT

main53295-48060iGYL26201712-201908

main53295-48061iGYL26201908

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217iGYL26201712-201908

53301GCUSHION, HOOD BUMPER

main90541-15004iGYL26201712-201908

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-48100iGYL26201712-201908

main53701-48110iGYL26201908

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-48070iGYL26201712-201908

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-48020iGYL26201712-201908

main53707-48030iGYL26201908

53708FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-48010iGYL26201712-201908

53711BAPRON, FRONT FENDER, FRONT RH

main53711-48050iGYL26201712-201908

53712BAPRON, FRONT FENDER, FRONT LH

main53712-48040iGYL26201712-201908

53717PLATE, FENDER APRON, RH

main53717-48070iGYL26201712-201908

53718PLATE, FENDER APRON, LH

main53718-48070iGYL26201712-201908

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-48010iGYL26201712-201908

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-48010iGYL26201712-201908

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-48050iGYL26201712-201908

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-48040iGYL26201712-201908

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-48040iGYL26201712-201908

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-48050iGYL26201712-201908

53736SEAL, FRONT FENDER APRON, RH

main53736-48030iGYL26201712-201908

53737BSEAL, FRONT FENDER APRON, LH

main53737-48060iGYL26201712-201908

53747PLATE, AIR SEALED, RH

main53747-48020iGYL26201712-201908

53748PLATE, AIR SEALED, LH

main53748-48020iGYL26201712-201908

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-48020iGYL26201712-201908

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-48020iGYL26201712-201908

53835EBRACE, FRONT FENDER TO APRON, RH

main53835-48060iGYL26201712-201908

53836EBRACE, FRONT FENDER TO APRON, LH

main53836-48050iGYL26201712-201908

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-48040iGYL26201712-201908

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-48040iGYL26201712-201908

55101PANEL SUB-ASSY, DASH

main55101-48222iGYL26201712-201908

55210INSULATOR ASSY, DASH PANEL

main55210-48200iGYL26201712-201908

55210ACLIP

main90467-06197iGYL26201712-201908

55219APACKING, DASH PANEL HOLE COVER

main55219-48040iGYL26201712-201908

55223AINSULATOR, DASH PANEL, OUTER

main55223-48210iGYL26201712-201908

55224INSULATOR, DASH PANEL, OUTER LH

main55224-48021iGYL26201712-201908

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48020iGYL26201712-201908

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020iGYL26201712-201908

55721ABRACE, COWL TOP TO COWL, INNER NO.1

main55721-48030iGYL26201712-201908

55722BBRACE, COWL TOP TO COWL, INNER NO.2

main55722-48050iGYL26201712-201908

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-48060iGYL26201712-201908

58191BFOOTREST, FRONT FLOOR

main58191-48150iGYL26201712-201908

58198CCLIP, DASH PANEL INSULATOR PAD

main58198-48040iGYL26201712-201908

9010506137

main90105-06137

9010906328

main90109-06328

9011906678

main90119-06678

9046708180

main90467-08180

9046710216

main90467-10216

91635G0616

main91635-G0616

70 parts on this diagram · 2 diagrams in section
