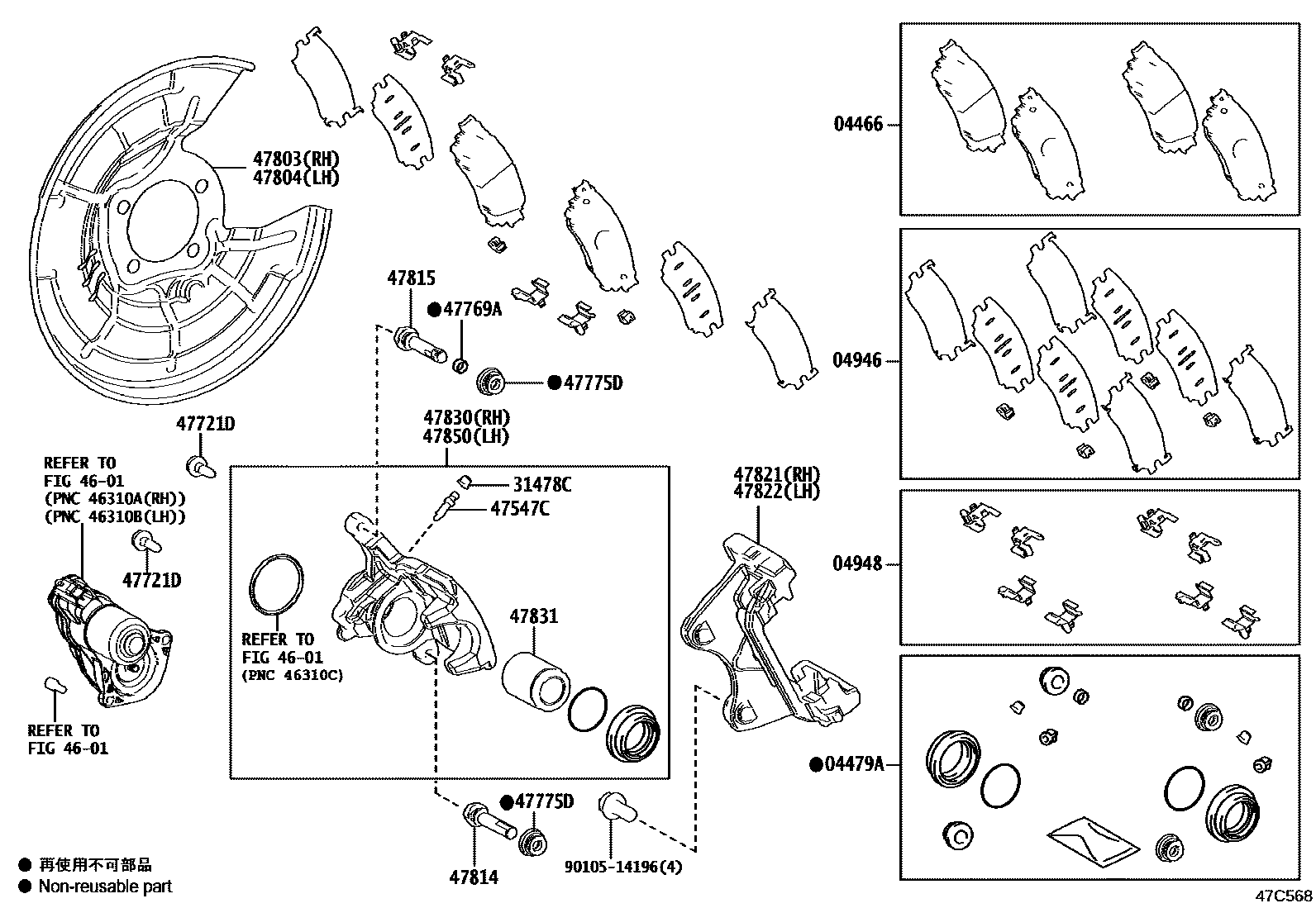

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48160iGYL26201712-202209

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48171iGYL26201712-201908

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iGYL26201712-201908

04948FITTING KIT, DISC BRAKE, REAR

main04948-48110iGYL26201712-201908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGYL26201712-201908

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGYL26201712-201908

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGYL26201712-201908

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iGYL26201712-201908

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iGYL26201712-201908

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-48010iGYL26201712-201908

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-48010iGYL26201712-201908

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iGYL26201712-201908

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iGYL26201712-201908

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48130iGYL26201712-201908

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-48130iGYL26201712-201908

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-48130iGYL26201712-201908

47831PISTON, REAR DISC BRAKE

main47831-48130iGYL26201712-201908

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48130iGYL26201712-201908

9010514196

main90105-14196

20 parts on this diagram · 1 diagram in section
