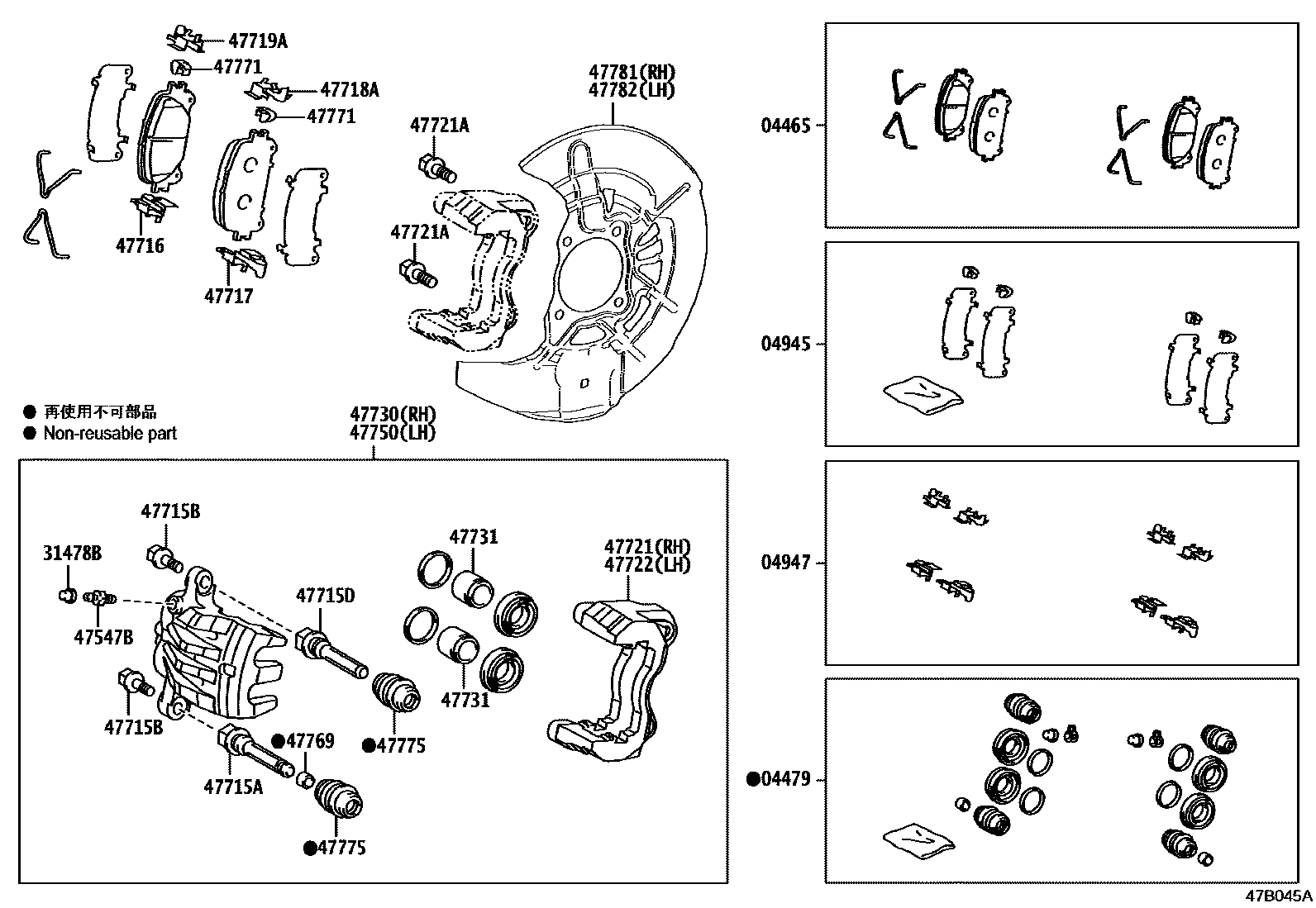

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48210iGYL26201712-201908

main04465-78010iGYL26201908-202209

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48150iGYL26201712-201908

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iGYL26201712-201908

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iGYL26201712-201908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGYL26201712-201908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iGYL26201712-201908

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iGYL26201712-201908

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90015-AA602iGYL26201712-201908

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iGYL26201712-201908

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48150iGYL26201712-202002

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48150iGYL26201712-202002

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-48150iGYL26201712-202002

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-48150iGYL26201712-202002

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48170iGYL26201712-201908

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-14196iGYL26201712-201908

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48090iGYL26201712-201908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48170iGYL26201712-201908

47731PISTON, FRONT DISC BRAKE

main47731-48150iGYL26201712-201908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48090iGYL26201712-201908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iGYL26201712-201908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iGYL26201712-201908

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iGYL26201712-201908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48050iGYL26201712-201908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48050iGYL26201712-201908

24 parts on this diagram · 1 diagram in section
