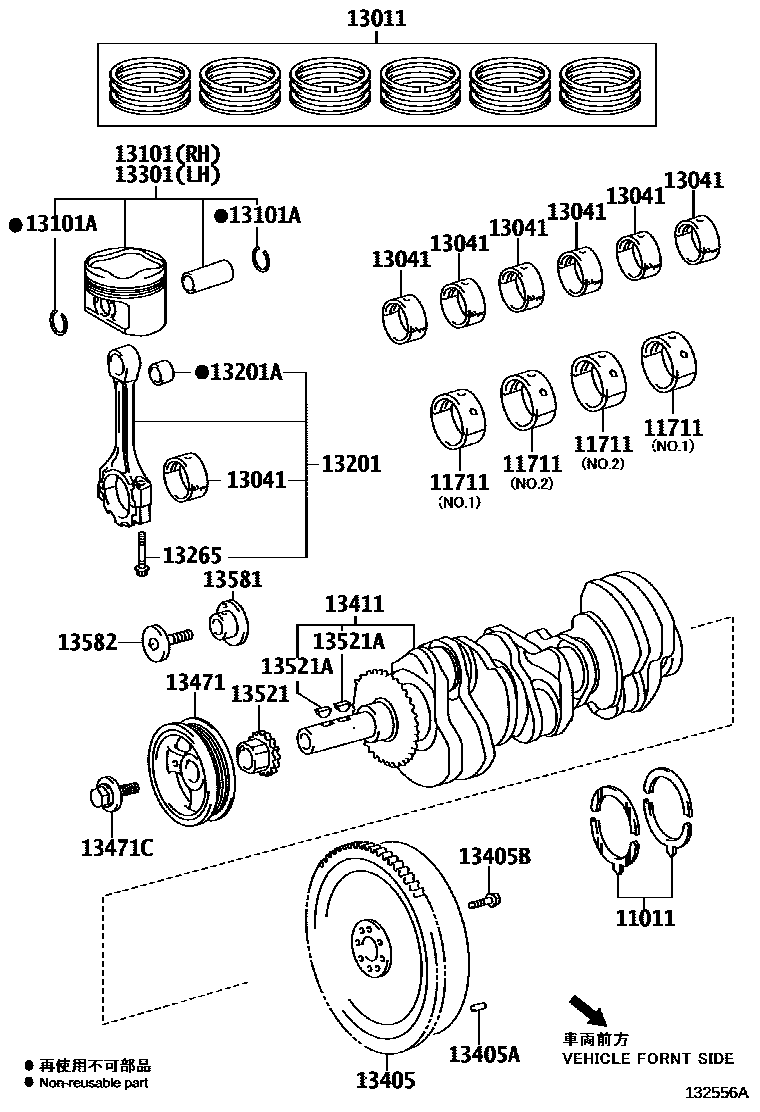

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11711BEARING, CRANKSHAFT
sub11071-31060
sub11071-31060
sub11071-31060
sub11071-31060
sub11071-31060
sub11071-31060
sub11071-31060
sub11071-31060
sub11071-31060
sub11701-31100
sub11701-31100
sub11701-31100
sub11701-31100
sub11701-31100
sub11701-31100
sub11701-31100
sub11701-31100
sub11701-31100
13011RING SET, PISTON
sub13011-31290
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13301PISTON SUB-ASSY, W/PIN, LH
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
sub13401-31080
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
20 parts on this diagram · 1 diagram in section
