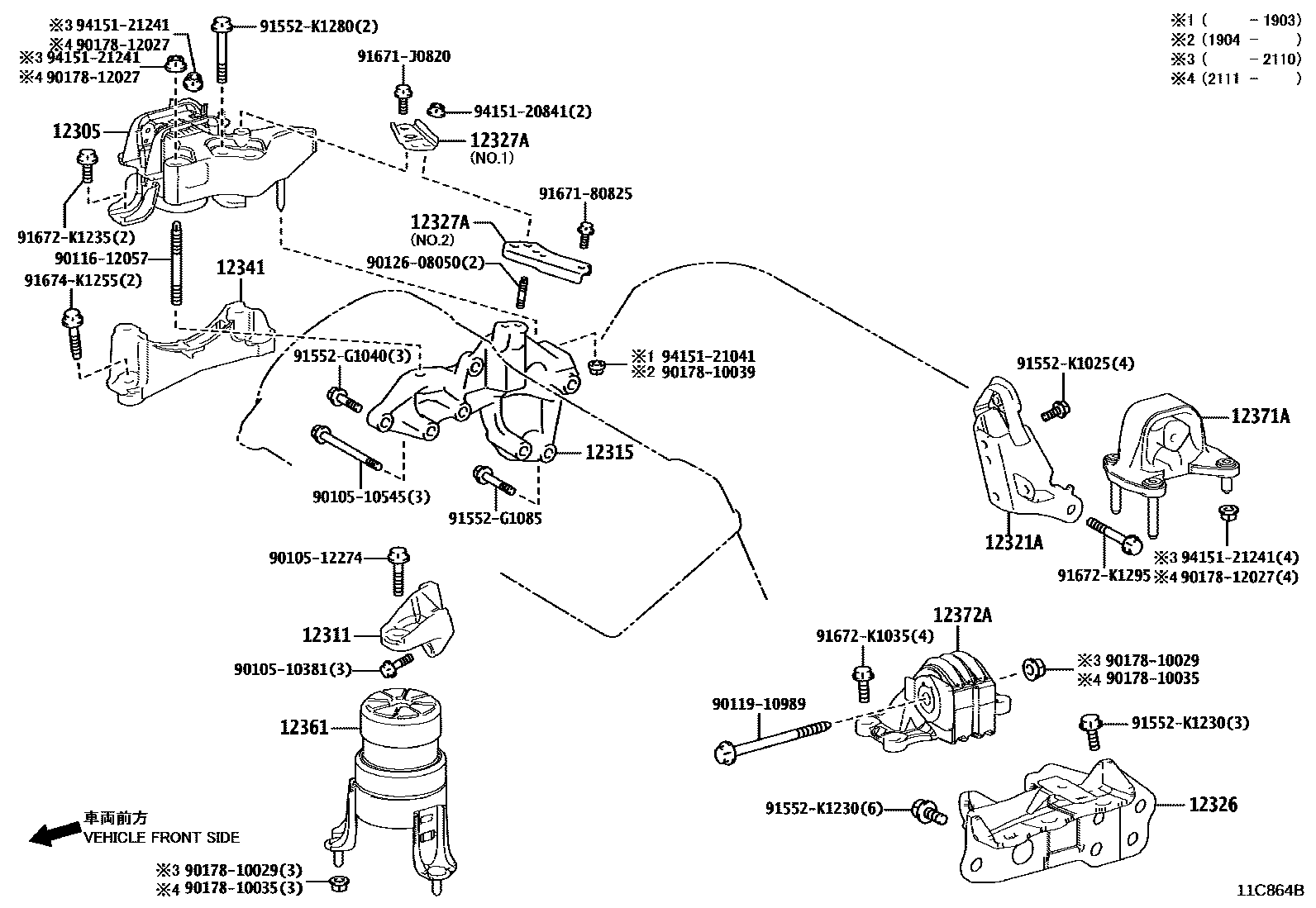

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-31080i2GRFXS..GYL26201712-201908

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31200i2GRFXS..GYL26201712-201908

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31160i2GRFXS..GYL26201712-201908

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-31210i2GRFXS..GYL26201712-201908

12326BRACKET, ENGINE MOUNTING STAY

main12325-31060i2GRFXS..GYL26201712-201908

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-31110i2GRFXS..GYL26201712-201908

main12327-31120i2GRFXS..GYL26201712-201908

12341SPACER, ENGINE MOUNTING

main12341-31040i2GRFXS..GYL26201712-201908

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31480i2GRFXS..GYL26201712-201908

main12361-31540i2GRFXS..GYL26201908

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31440i2GRFXS..GYL26201712-201908

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-31110i2GRFXS..GYL26201712-201908

9010510381

main90105-10381

9010510545

main90105-10545

9010512274

main90105-12274

9011612057

main90116-12057

9011910989

main90119-10989

9012608050

main90126-08050

9017810029

main90178-10029

9017810035

main90178-10035

9017810039

main90178-10039

9017812027

main90178-12027

91552G1040

main91552-G1040

91552G1085

main91552-G1085

91552K1025

main91552-K1025

91552K1230

main91552-K1230

91552K1280

main91552-K1280

9167180825

main91671-80825

91671J0820

main91671-J0820

91672K1035

main91672-K1035

91672K1235

main91672-K1235

91672K1295

main91672-K1295

91674K1255

main91674-K1255

9415120841

main94151-20841

9415121041

main94151-21041

9415121241

main94151-21241

34 parts on this diagram · 1 diagram in section
