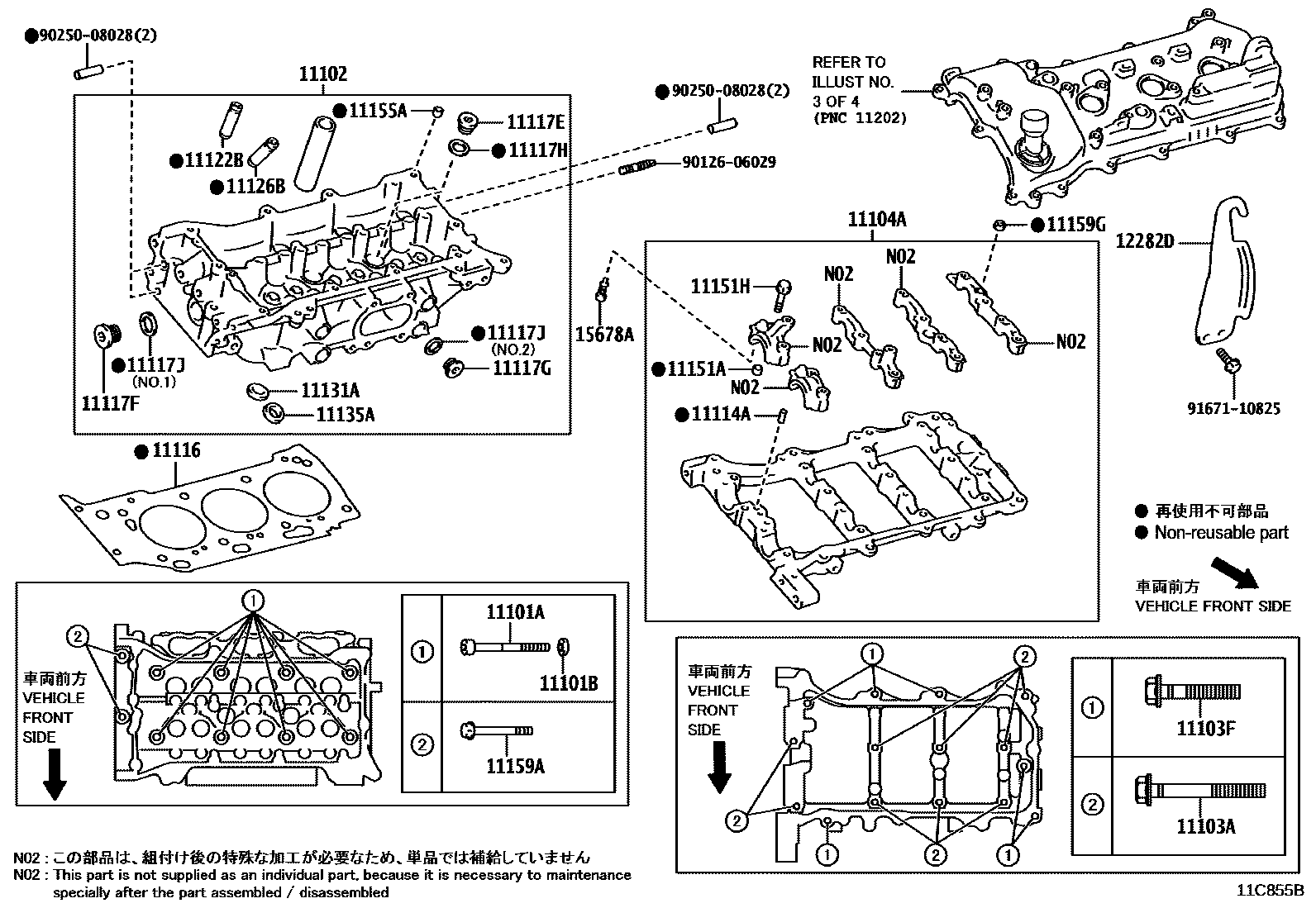

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-39866
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11102HEAD, CYLINDER, LH
sub11102-39296
11103HOUSING SUB-ASSY, CAMSHAFT
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103FBOLT(FOR CAMSHAFT HOUSING SET)
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11114APIN, STRAIGHT
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11135SEAT, EXHAUST VALVE
11135ASEAT, EXHAUST VALVE, NO.2
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12282DHANGER, ENGINE, NO.2
15678AFILTER, OIL CONTROL VALVE
9012606029
main90126-06029
9025008028
main90250-08028
9167110825
main91671-10825
33 parts on this diagram · 4 diagrams in section
