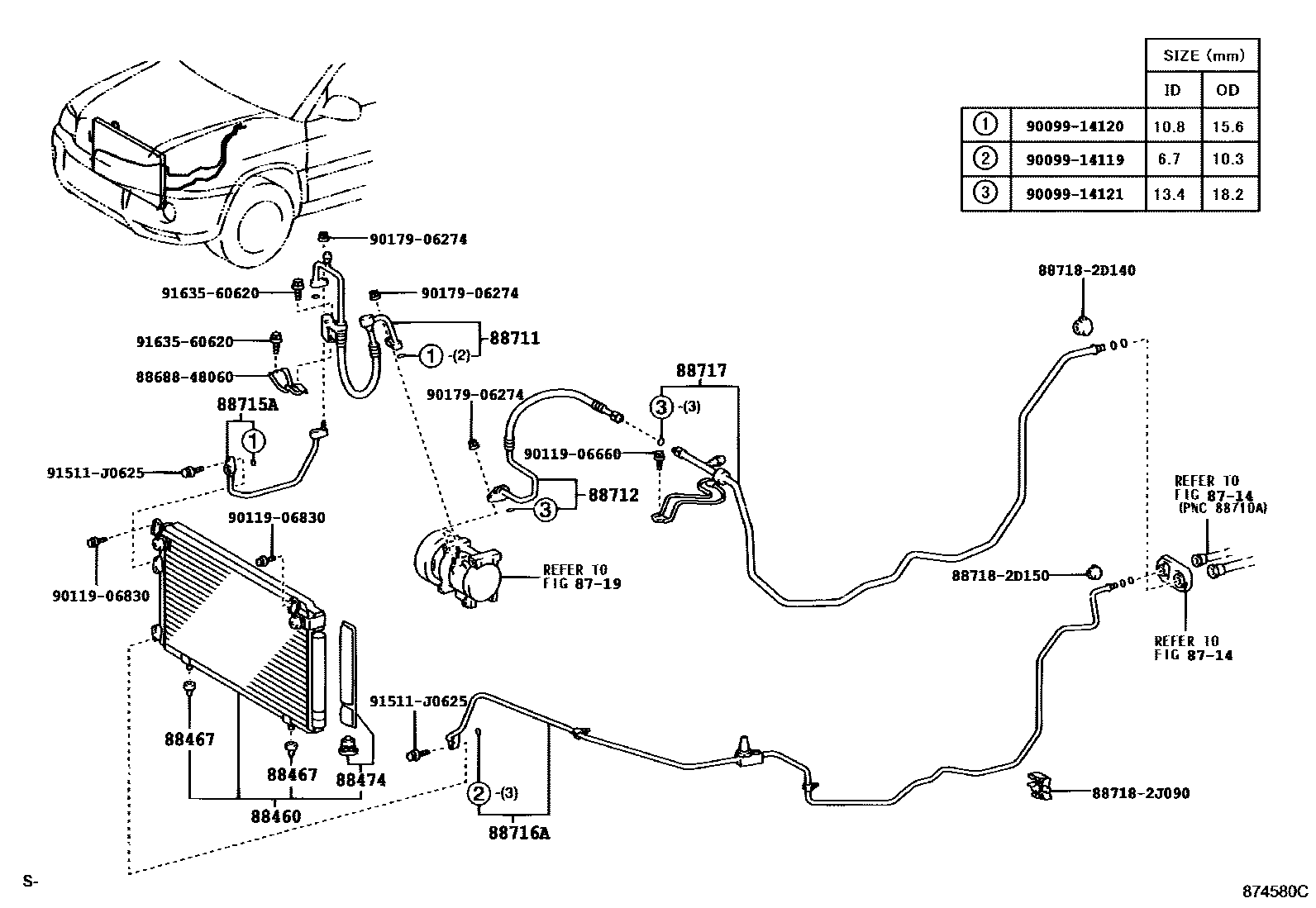

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714

8719

88460CONDENSER ASSY, COOLER

main88460-48020iACU2#,MCU2#200011-200308

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28040iACU2#,MCU2#200011-200308

88474DRYER, COOLER

main88474-47010iACU2#,MCU2#200011-200308

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48050iMCU2#200011-200308

main88703-48060iACU2#200011-200308

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-48050iMCU2#200011-200308

main88712-48090iACU2#200011-200308

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88705-48030iACU2#,MCU2#200011-200308

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-48070iACU2#,MCU2#200011-200308

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88707-48030iACU2#,MCU2#200011-200308

8868848060BRACKET, COOLER DIAPHRAGM

main88688-48060

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906660

main90119-06660

9011906830

main90119-06830

9017906274

main90179-06274

91511J0625

main91511-J0625

9163560620

main91635-60620

22 parts on this diagram · 4 diagrams in section
