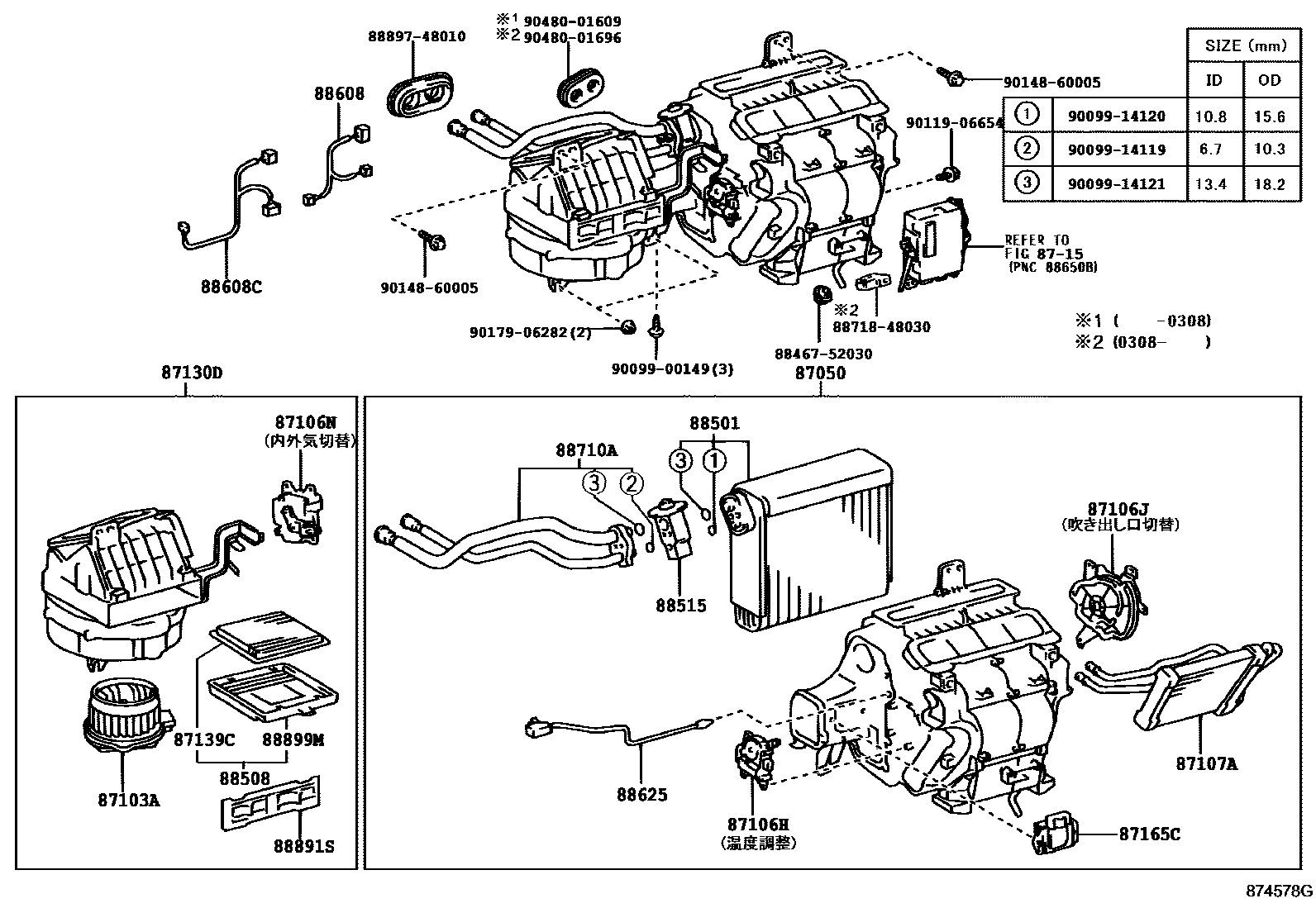

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48030iACU2#,MCU2#200011-200207

sub87050-48031

main87050-48031iACU2#,MCU2#200207-200212

sub87050-48032

sub88608-48080

main87050-48032iACU2#,MCU2#200212-200308

main87050-48110iACU2#,MCU2#200308-200507

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-48010iACU2#,MCU2#200011-200507

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-41050iACU2#,MCU2#200011-200308

sub87106-41051

main87106-48050iACU2#,MCU2#200308-200312

sub87106-48150

main87106-48150iACU2#,MCU2#200312

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-48030iACU2#,MCU2#200011-200308

main87106-48060iACU2#,MCU2#200308

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-53010iACU2#,MCU2#200011-200507

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48030iACU2#,MCU2#200011-200308

main87107-48070iACU2#,MCU2#200308

87130DBLOWER ASSY

main87130-48030iACU2#,MCU2#200011-200508

main87130-48031iACU2#,MCU2#200508

87139CFILTER, CLEAN AIR

main87139-48030iACU2#,MCU2#200011-200705

8715

87165CCONTROL, BLOWER MOTOR

main87165-48010iACU2#,MCU2#200011-200705

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48020iACU2#,MCU2#200011-200308

main88501-48210iACU2#,MCU2#200308

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iACU2#,MCU2#200011-200507

88515VALVE, COOLER EXPANSION

main88515-28160iACU2#,MCU2#200308

main88515-48040iACU2#,MCU2#200011-200308

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-48030iACU2#,MCU2#200011-200507

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-48040iACU2#,MCU2#200011-200212

main88608-48080iACU2#,MCU2#200212-200507

88625THERMISTOR, COOLER, NO.1

main88625-0C010iACU2#,MCU2#200011-200308

88710ATUBE ASSY, AIR CONDITIONER

main88710-48090iACU2#,MCU2#200011-200308

88891SCOVER, COOLER, NO.1

main88891-30680iACU2#,MCU2#200011-200308

88899MPLATE, COVER(FOR AIR FILTER)

main88899-30870iACU2#,MCU2#200308

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48030

8889748010VALVE, COOLER MAGNET

main88897-48010

9009900149

main90099-00149

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906654

main90119-06654

9014860005

main90148-60005

9017906282

main90179-06282

9048001609

main90480-01609

9048001696

main90480-01696

31 parts on this diagram · 1 diagram in section
