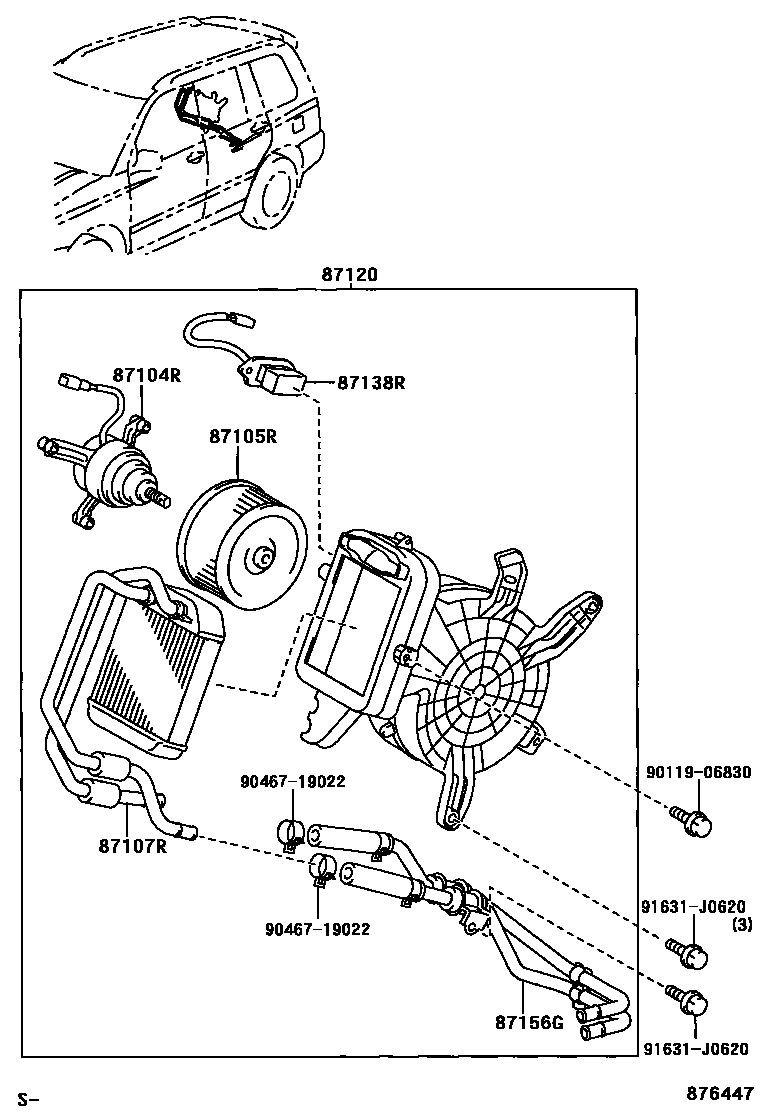

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104RMOTOR SUB-ASSY, REAR HEATER BLOWER

main87104-44030iACU2#,MCU2#..07S200308-200607

sub87104-48010

main87104-48010iACU2#,MCU2#..07S200608

87105RFAN SUB-ASSY, REAR HEATER BLOWER

main87105-28030iACU2#,MCU2#..07S200308

87107RUNIT SUB-ASSY, REAR HEATER

main87107-48090iACU2#,MCU2#..07S200308

87120HEATER ASSY, REAR

main87110-48010iACU2#,MCU2#..07S200308

87138RRESISTOR, REAR HEATER BLOWER

main87138-48050iACU2#,MCU2#..07S200308

87156GPIPE, HEATER WATER, NO.1

main87207-48010iACU2#,MCU2#..07S200308

9011906830

main90119-06830

9046719022

main90467-19022

91631J0620

main91631-J0620

9 parts on this diagram · 1 diagram in section
