ABS & VSC

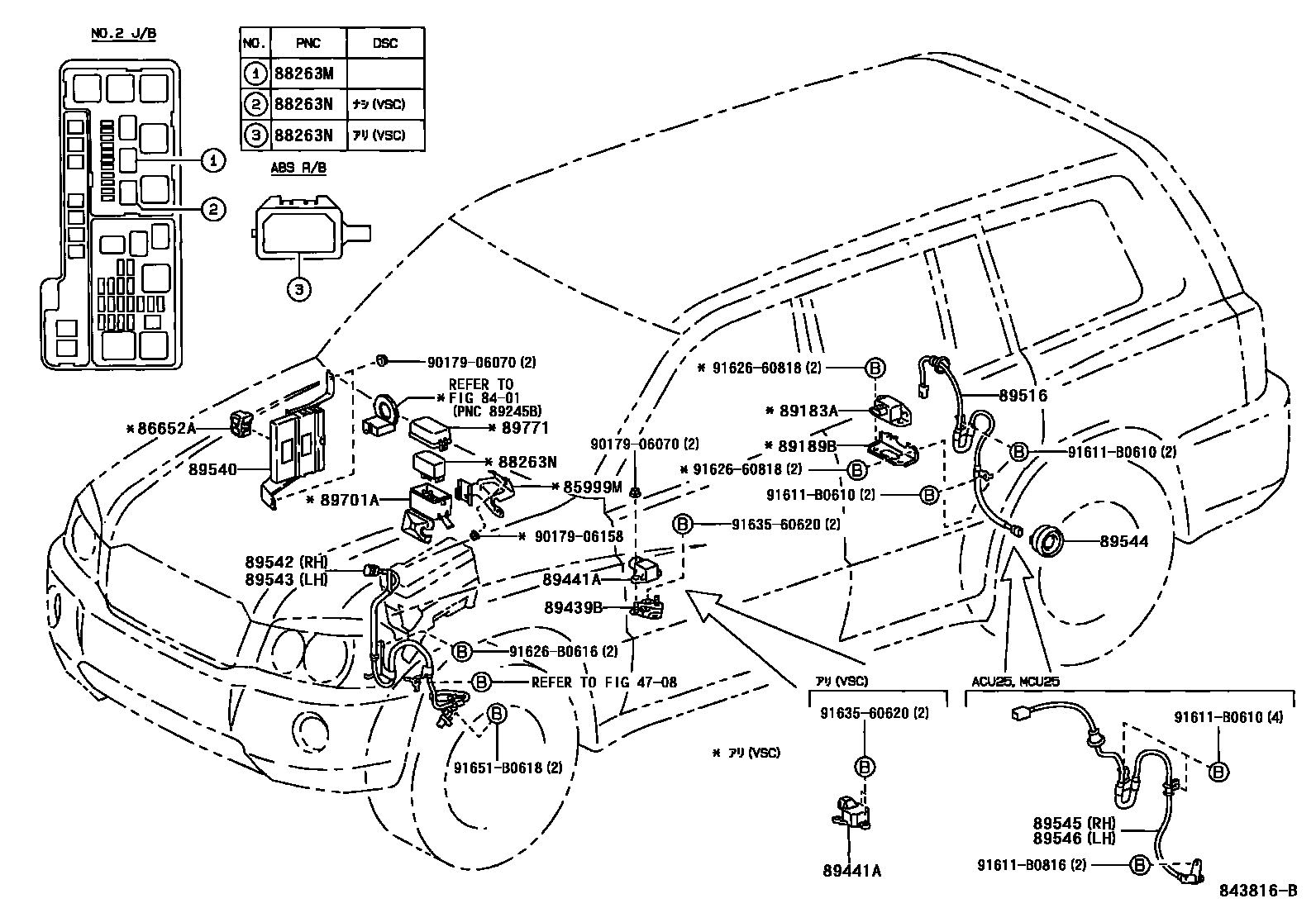

Parts diagram

4708

8401

85999MBRACKET, RELAY

main85999-48040i200011-200308

86652ABUZZER ASSY, SKID CONTROL

main86652-48010i200308

main86652-51010i200011-200308

88263MRELAY, ABS SOLENOID

main88263-32070i200011-200308

88263NRELAY, ABS MOTOR

main88263-21010i200308

main88263-30150i200011-200308

main88263-32070i200011-200308

89183ASENSOR, YAWRATE

main89180-48010i200308

main89183-50010i200011-200308

89189BBRACKET, YAWRATE SENSOR

main89189-48010i200011-200308

89439BBRACKET, SENSOR

main89439-48010i200011-200308

89441ASENSOR, DECELERATION

main89440-48010i200308

main89441-30050i200011-200308

main89441-60020i200011-200308

89516WIRE, SKID CONTROL SENSOR

main89516-48010i200011-200308

main89516-48020i200011-200308

main89516-48030i200308

main89516-48040i200308

89540COMPUTER ASSY, SKID CONTROL

main89540-48160i200011-200308

main89540-48180i200011-200308

main89540-48200i200011-200308

main89540-48220i200011-200308

main89540-48320i200308

main89540-48330i200308

89542SENSOR, SPEED, FRONT RH

main89542-48020i200011-200308

main89542-48030i200308-200705

89543SENSOR, SPEED, FRONT LH

main89543-48020i200011-200308

main89543-48030i200308-200705

89544SENSOR, SKID CONTROL

main89544-48010i200011-200308

main89544-48030i200308-200705

89545SENSOR, SPEED, REAR RH

main89545-48020i200011-200308

main89545-48030i200308-200705

89546SENSOR, SPEED, REAR LH

main89546-48020i200011-200308

main89546-48030i200308-200705

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-21020i200308-200705

main89701-48010i200011-200308

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020i200308

main89771-48010i200011-200308

9017906070

main90179-06070

9017906158

main90179-06158

91611B0610

main91611-B0610

91611B0816

main91611-B0816

9162660818

main91626-60818

91626B0616

main91626-B0616

9163560620

main91635-60620

91651B0618

main91651-B0618

27 parts on this diagram · 2 diagrams in section
