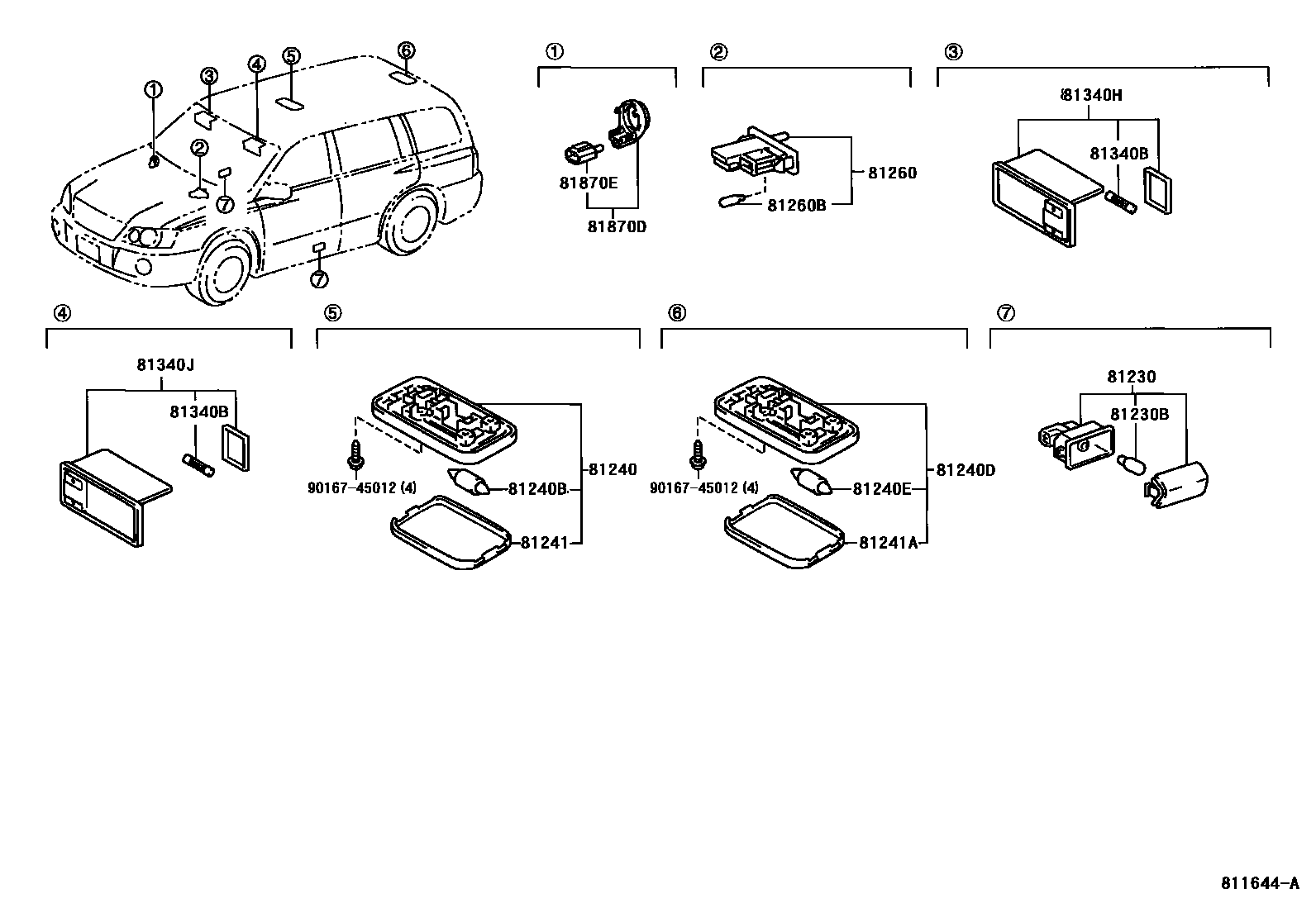

INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81240LAMP ASSY, ROOM, NO.1
GRAY,TRIM1#,2#
81240BBULB, ROOM LAMP, NO.1
81240DLAMP ASSY, ROOM, NO.2
GRAY,TRIM1#,2#
81240EBULB, ROOM LAMP, NO.2
81241ALENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
81340BBULB (FOR VANITY LAMP)
81340HLAMP ASSY, VANITY, RH
LT.GRAY,TRIM15
MD.CHARCOAL,TRIM14
81340JLAMP ASSY, VANITY, LH
LT.GRAY,TRIM15
MD.CHARCOAL,TRIM14
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
9016745012
main90167-45012
16 parts on this diagram · 2 diagrams in section
