SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

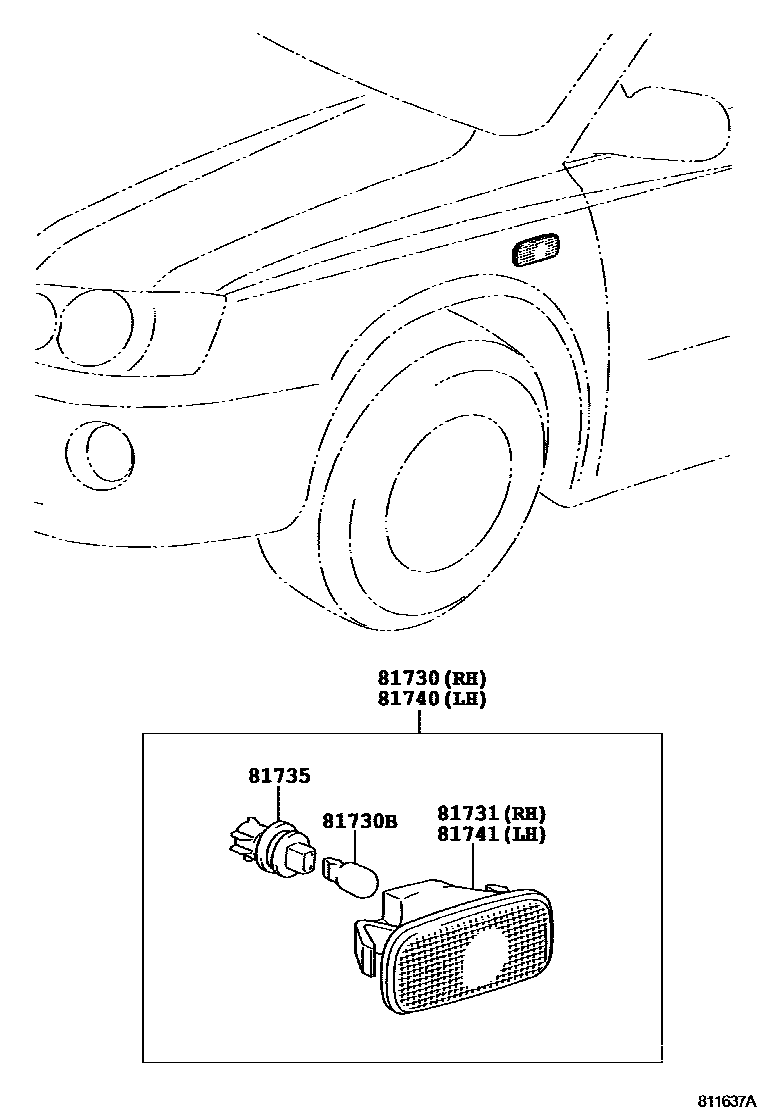

Parts diagram
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-53010i200011-200607
sub81730-53011
main81730-53011i200607-200705
81730BBULB (FOR SIDE TURN SIGNAL LAMP)
main99132-12050i200011-200308
81731LENS, SIDE TURN SIGNAL LAMP, RH
main81731-53010i200011-200308
sub81731-53011
main81731-53011i200308
81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
main90075-60001i200011-200308
81740LAMP ASSY, SIDE TURN SIGNAL, LH
main81730-53010i200011-200607
sub81730-53011
main81730-53011i200607-200705
81741LENS, SIDE TURN SIGNAL LAMP, LH
main81731-53010i200011-200308
sub81731-53011
main81731-53011i200308

6 parts on this diagram · 1 diagram in section
