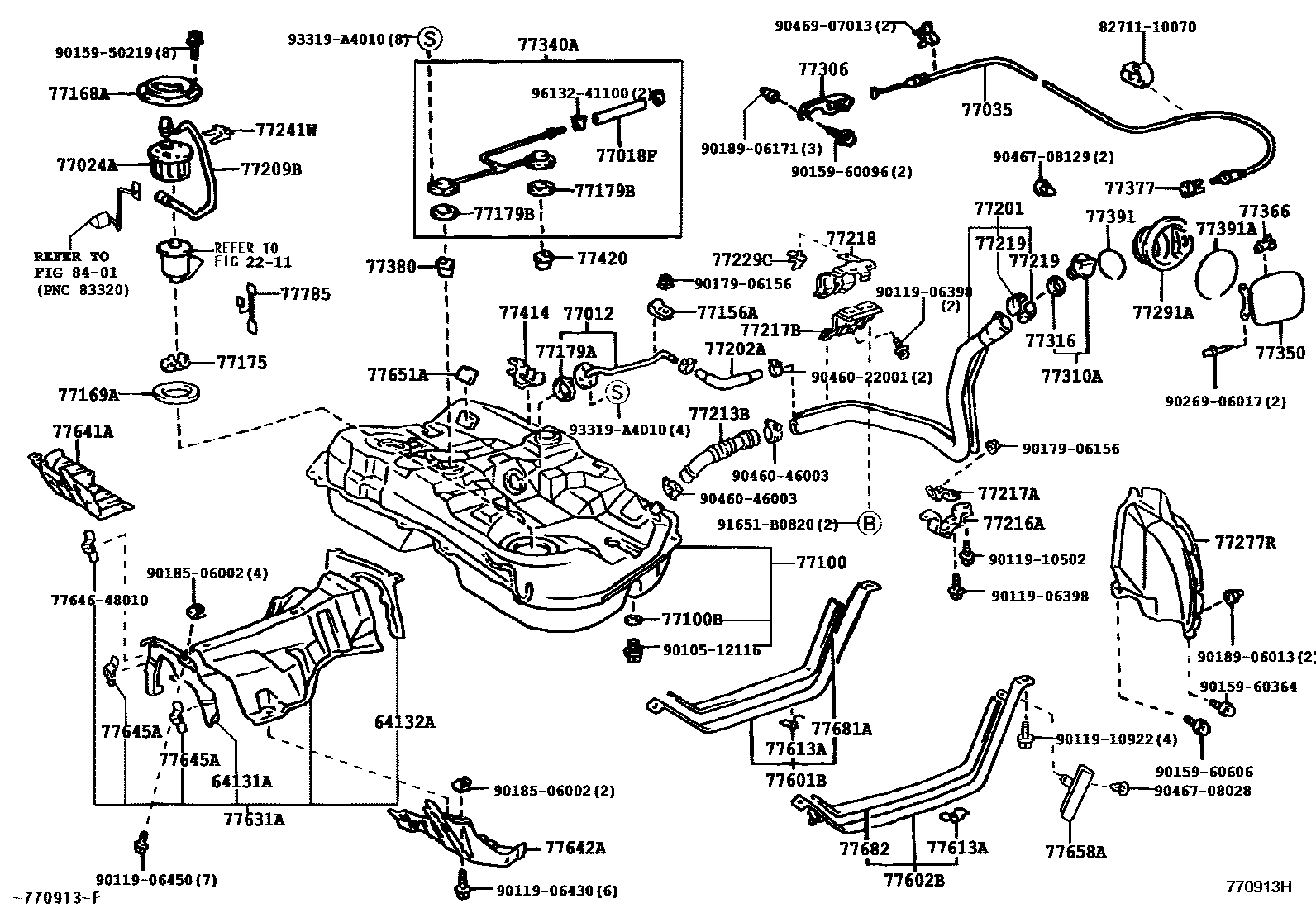

FUEL TANK & TUBE
2211
64131ABRACKET, FUEL TANK PROTECTOR, UPPER NO.1
64132ABRACKET, FUEL TANK PROTECTOR, UPPER NO.2
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77018FHOSE, FUEL TANK EVAPORATION VENT
sub95337-06020
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100BGASKET(FOR FUEL TANK)
77156APLATE, BREATHER TUBE SUPPORT, NO.2
77168APLATE, FUEL TANK VENT TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77217BHOSE, FUEL TANK INLET
77218PLATE, FUEL INLET PIPE SET
77219COVER, FUEL TANK FILLER PIPE
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77414SUPPORT, FUEL TUBE GROMMET, NO.4
77420VALVE ASSY, FUEL CUT OFF, NO.2
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613ABRACKET, FUEL TANK BAND, NO.1
77631APROTECTOR, FUEL TANK, LOWER CENTER
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77645ARETAINER, FUEL TANK PROTECTOR
77651ACUSHION, FUEL TANK, NO.1
77658APROTECTOR, FUEL TANK EDGE, NO.1
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
8401
7764648010PACKING, FUEL TANK BRACKET LOWER, B
main77646-48010
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
9010512116
main90105-12116
9011906398
main90119-06398
9011906430
main90119-06430
9011906450
main90119-06450
9011910502
main90119-10502
9011910922
main90119-10922
9015950219
main90159-50219
9015960096
main90159-60096
9015960364
main90159-60364
9015960606
main90159-60606
9017906156
main90179-06156
9018506002
main90185-06002
9018906013
main90189-06013
9018906171
main90189-06171
9026906017
main90269-06017
9046022001
main90460-22001
9046046003
main90460-46003
9046708028
main90467-08028
9046708129
main90467-08129
9046907013
main90469-07013
91651B0820
main91651-B0820
93319A4010
main93319-A4010
9613241100
main96132-41100
78 parts on this diagram · 4 diagrams in section
