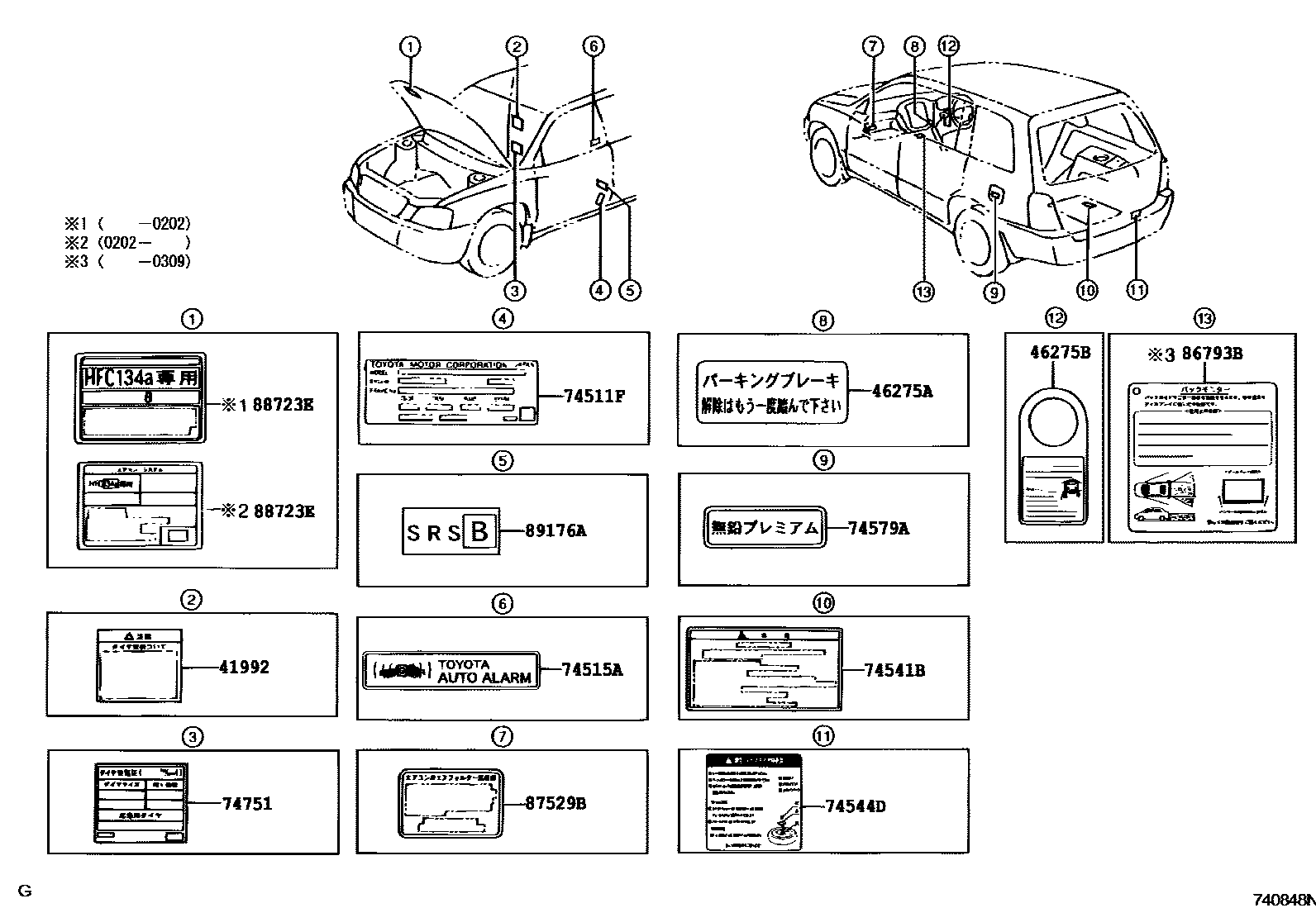

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iACU25,MCU25200011-200308

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-22010-A0iACU2#,MCU2#200301-200308

WHITE,TRIM14

main46275-22010-B0iACU2#,MCU2#200308-200705

GRAY,TRIM23

main46275-33010-A0iACU2#,MCU2#200011-200301

WHITE,TRIM14

main46275-33010-B0iACU2#,MCU2#200011-200301

GRAY,TRIM15

46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2

main46275-47010iACU2#,MCU2#200011-200308

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iACU2#,MCU2#200112-200308

74515APLATE, THEFT WARNING

main74515-30020×2iACU2#,MCU2#200308-200705

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-28060iACU2#,MCU2#200308

74544DPLATE, TIRE CARRIER CAUTION

main74544-48010iACU2#,MCU2#200308

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-24010iMCU2#200011-200308

74751LABEL, TIRE PRESSURE INFORMATION

main42661-48070iACU2#,MCU2#200011-200308

86793BLABEL, TELEVISION CAMERA INFORMATION

main86793-13010iACU2#,MCU2#200103-200308

sub86793-52010

87529BLABEL, A/C FILTER INFORMATION

main87529-50020iACU2#,MCU2#200011-200308

88723ELABEL, COOLER SERVICE CAUTION

main88723-42050iACU2#,MCU2#200011-200202

sub88733-51010

main88733-27010iACU2#,MCU2#200202-200308

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-51010iACU2#,MCU2#200011-200308

13 parts on this diagram · 2 diagrams in section
