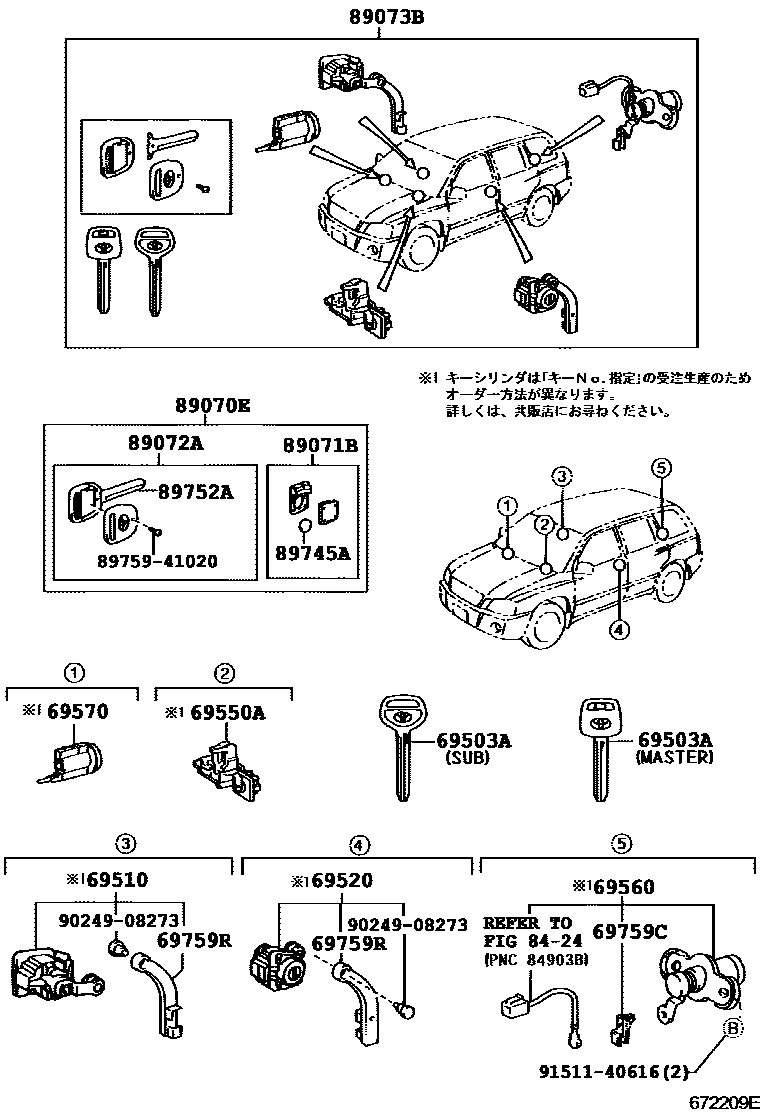

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-48200iACU2#,MCU2#200308-200606

main69005-48201iACU2#,MCU2#200606

69503AKEY, BLANK

main90999-00188iACU2#,MCU2#200011-200308

main90999-00199iACU2#,MCU2#200011-200308

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-22280iACU2#,MCU2#200011-200308

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-22240iACU2#,MCU2#200011-200308

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-22110iACU2#,MCU2#200011-200308

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-48040iACU2#,MCU2#200011-200308

main69560-48050iACU2#,MCU2#200308

sub69560-48040

sub84903-48010

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12190iACU2#,MCU2#200011-200605

sub69570-12250

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080iACU2#,MCU2#200011-200308

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-50110iACU2#,MCU2#200011-200308

main69759-50120iACU2#,MCU2#200011-200308

8424

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-12010iACU2#,MCU2#200011-200103

main89070-12011iACU2#,MCU2#200103-200308

sub89070-44070

main89070-48A10iACU2#,MCU2#200308-200705

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12020iACU2#,MCU2#200011-200103

main89071-12021iACU2#,MCU2#200103-200308

main89071-48270iACU2#,MCU2#200308-200705

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020iACU2#,MCU2#200011-200705

sub04873-47010

89073BCYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-48190iACU2#,MCU2#200011-200308

89745ABATTERY, TRANSMITTER

main89745-26010iACU2#,MCU2#200011-200308

sub89745-41010

89752ACASE, TRANSMITTER HOUSING

main89752-46020iACU2#,MCU2#200308-200705

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9024908273

main90249-08273

9151140616

main91511-40616

19 parts on this diagram · 2 diagrams in section
