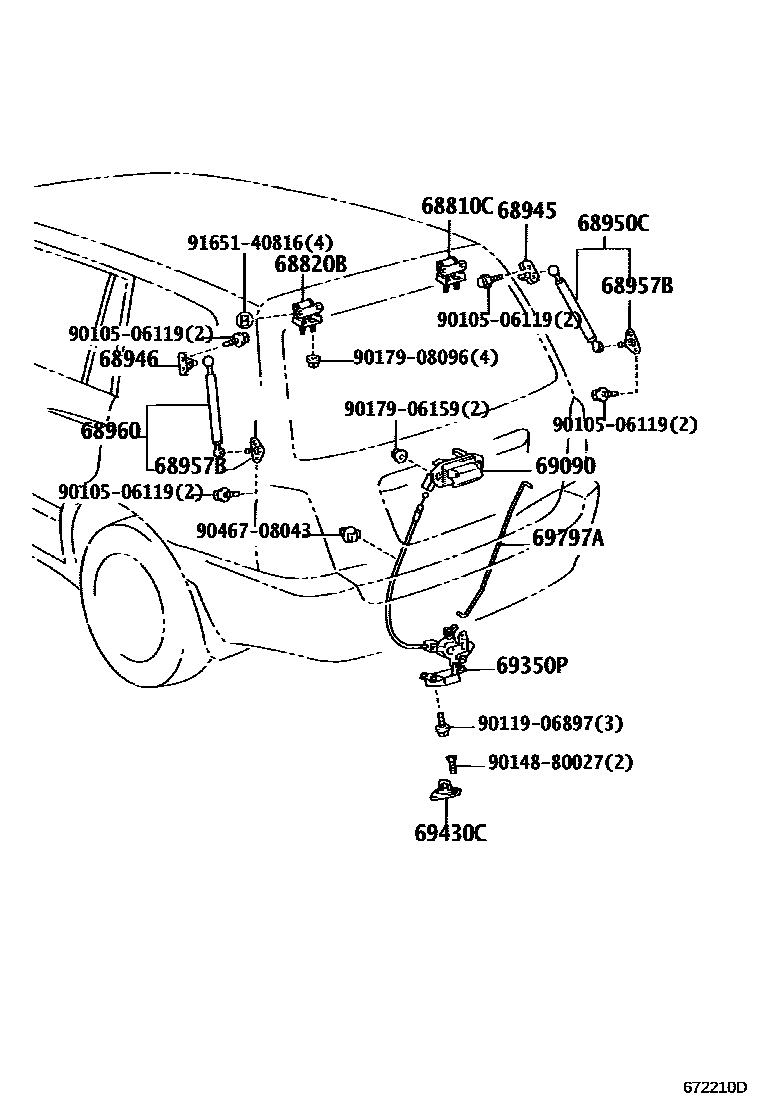

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-44010iACU2#,MCU2#200011-200311

main68810-52060iACU2#,MCU2#200312-200705

68820BHINGE ASSY, BACK DOOR, LH

main68810-44010iACU2#,MCU2#200011-200311

main68810-52060iACU2#,MCU2#200312-200705

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-48020iACU2#,MCU2#200011-200209

sub68945-48030

main68945-48030iACU2#,MCU2#200209-200308

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-48020iACU2#,MCU2#200011-200209

sub68945-48030

main68945-48030iACU2#,MCU2#200209-200308

68950CSTAY ASSY, BACK DOOR, RH

main68950-49025iACU2#,MCU2#200011-200308

main68950-49155iACU2#,MCU2#200308

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-13020iACU2#,MCU2#200011-200308

68960STAY ASSY, BACK DOOR, LH

main68960-49025iACU2#,MCU2#200011-200308

main68960-49155iACU2#,MCU2#200308

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-48010iACU2#,MCU2#200011-200308

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-48020iACU2#,MCU2#200011-200705

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48010iACU2#,MCU2#200011-200308

69797ALINK, BACK DOOR CYLINDER TO LOCK CONTROL

main69797-48010iACU2#,MCU2#200011-200308

9010506119

main90105-06119

9011906897

main90119-06897

9014880027

main90148-80027

9017906159

main90179-06159

9017908096

main90179-08096

9046708043

main90467-08043

9165140816

main91651-40816

18 parts on this diagram · 1 diagram in section
