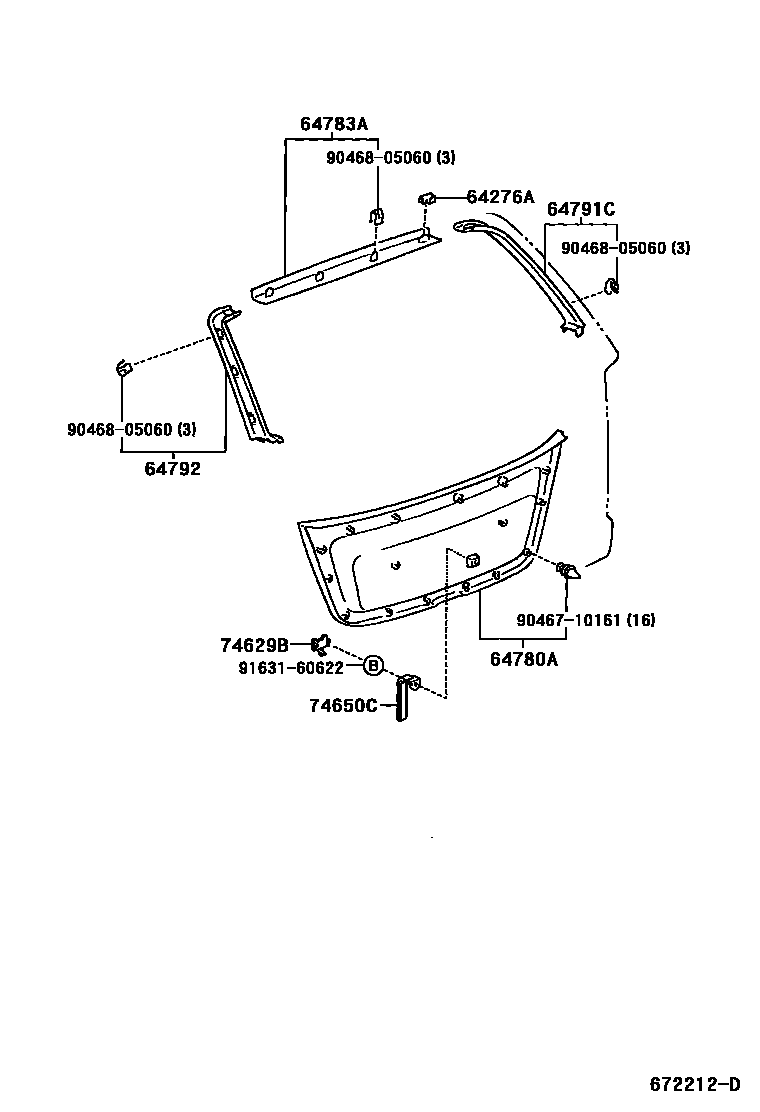

BACK DOOR PANEL & GLASS

0001 1 0002 1

64276ABRACKET, BACK PANEL TRIM, UPPER

main64276-42010iACU2#,MCU2#200011-200308

64780APANEL ASSY, BACK DOOR TRIM

main64780-48040-B0iACU2#,MCU2#200011-200308

SHADOW GRAY,TRIM15

main64780-48040-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM14

main64780-48040-B2iACU2#,MCU2#200308-200705

NEW GRAY,TRIM1#

main64780-48040-C0iACU2#,MCU2#200308-200705

BLACK,TRIM2#

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-48030-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM14

sub64783-48030

main64783-48030-B2iACU2#,MCU2#200011-200308

LT.GRAY,TRIM15

sub64783-48030

main64783-48030-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#,2#

sub64783-48030

64791CCOVER, BACK DOOR TRIM, RH

main64791-48020-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM14

sub64791-48020

main64791-48020-B2iACU2#,MCU2#200011-200308

LT.GRAY,TRIM15

sub64791-48020

main64791-48020-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#,2#

sub64791-48020

64792COVER, BACK DOOR TRIM, LH

main64792-48020-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM14

sub64792-48020

main64792-48020-B2iACU2#,MCU2#200011-200308

LT.GRAY,TRIM15

sub64792-48020

main64792-48020-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#,2#

sub64792-48020

74629BCOVER, ASSIST STRAP HOLE

main74629-35010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM14

sub74629-35010

main74629-35010-B3iACU2#,MCU2#200011-200308

SHADOW GRAY,TRIM15

sub74629-35010

main74629-35010-B4iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub74629-35010

main74629-35010-C0iACU2#,MCU2#200308-200705

BLACK,TRIM2#

sub74629-35010

74650CSTRAP ASSY, ASSIST, RH

main74650-48020-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub74650-48020

main74650-48020-B0iACU2#,MCU2#200011-200308

GRAY,TRIM14

sub74650-48020

main74650-48020-C0iACU2#,MCU2#200308-200705

BLACK,TRIM2#

sub74650-48020

main74650-48020-C0iACU2#,MCU2#200011-200308

BLACK,TRIM15

sub74650-48020

9046710161

main90467-10161

9046805060

main90468-05060

9163160622

main91631-60622

10 parts on this diagram · 2 diagrams in section
