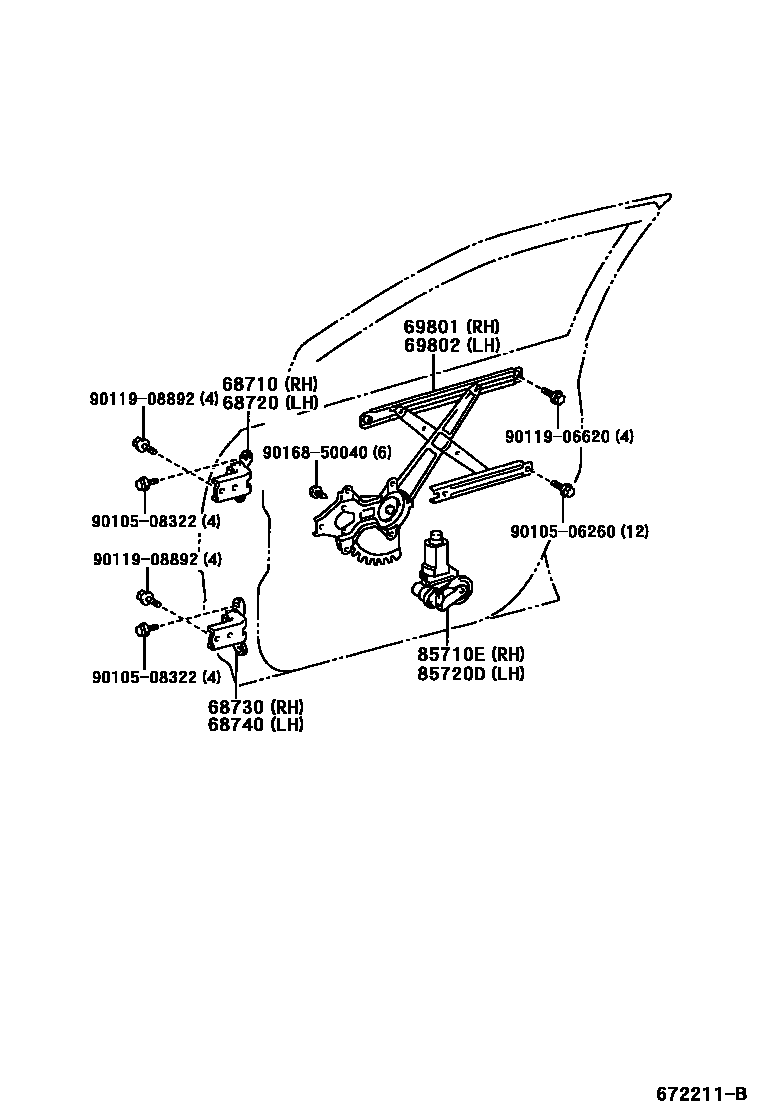

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iACU2#,MCU2#200011-200609

main68710-12151iACU2#,MCU2#200610-200705

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iACU2#,MCU2#200011-200609

main68720-12151iACU2#,MCU2#200610-200705

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12150iACU2#,MCU2#200011-200609

main68720-12151iACU2#,MCU2#200610-200705

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12150iACU2#,MCU2#200011-200609

main68710-12151iACU2#,MCU2#200610-200705

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-48020iACU2#,MCU2#200011-200308

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-48030iACU2#,MCU2#200011-200308

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-42090iACU2#,MCU2#200011-200308

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-32150iACU2#,MCU2#200011-200308

9010506260

main90105-06260

9010508322

main90105-08322

9011906620

main90119-06620

9011908892

main90119-08892

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
