ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
LT. GRAY,TRIM1#,2#
LT. GRAY,TRIM13,23
63310HEADLINING ASSY, ROOF
MEDIUM CHARCOAL,TRIM14
LT. GRAY,TRIM15
LT. GRAY,TRIM1#,2#
63310DCLIP, ROOF HEADLINING
63328CKNOB, SUNSHADE TRIM
LT.GRAY,TRIM15
MD.CHARCOAL,TRIM14
63342PAD, ROOF SILENCER, NO.2
63344PAD, ROOF SILENCER, NO.4
63345PAD, ROOF SILENCER, NO.5
63650BBULB, ROOF CONSOLE BOX
63652CCOVER, ROOF CONSOLE BOX
LT.GRAY,TRIM15
MD.CHARCOAL,TRIM14
63654BCOVER, ROOF CONSOLE BOX, INNER
sub63654-33011
63660CBOX ASSY, ROOF CONSOLE W/O RELAY
81231DLENS, COURTESY
9356755016
main93567-55016

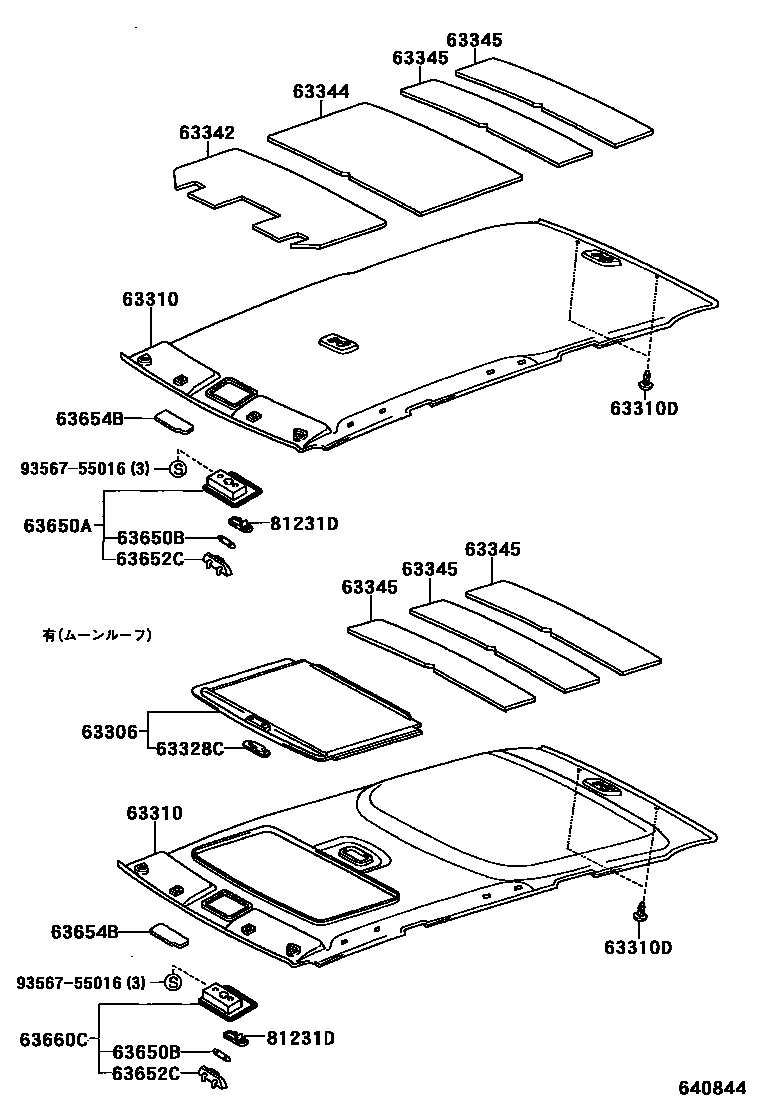

14 parts on this diagram · 3 diagrams in section
