SIDE MEMBER

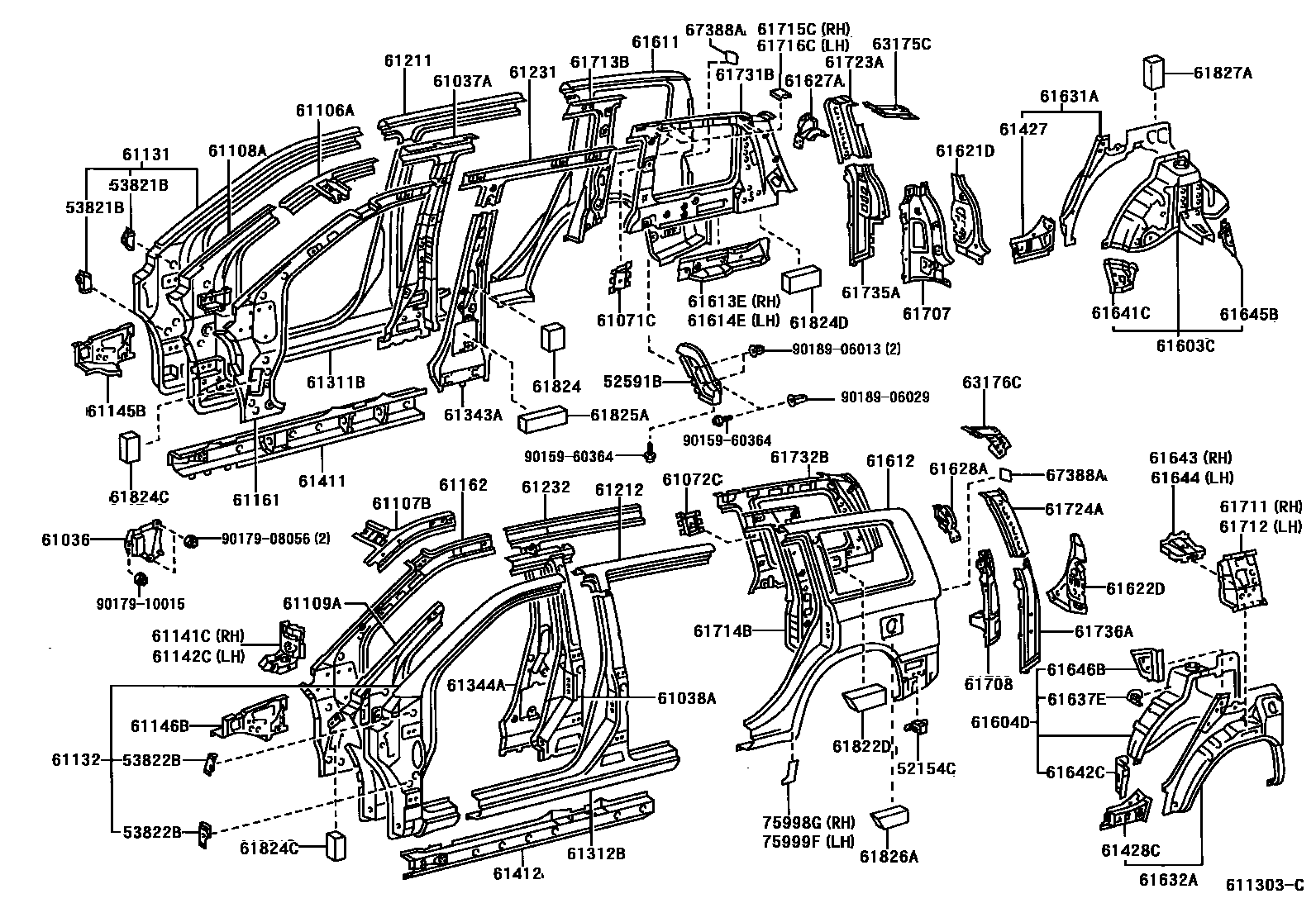

Parts diagram
52154CSUPPORT, REAR BUMPER, NO.1
main52154-48010i200011-200308
52591BSEAL, REAR BUMPER SIDE, RH
main52591-48040i200011-200308
main52591-48070i200308
53821BBRACKET, FRONT FENDER, REAR RH
main53821-48010i200011-200308
53822BBRACKET, FRONT FENDER, REAR LH
main53822-48010i200011-200308
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
main61166-48020i200011-200308
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-48020i200011-200308
main61037-48040i200308-200407
sub61037-48060
main61037-48060i200407
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-48020i200011-200308
main61038-48040i200308-200407
sub61038-48060
main61038-48060i200407
61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH
main61071-48020i200011-200308
61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH
main61072-48020i200011-200308
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
main61106-48020i200011-200308
main61106-48040i200308
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
main61107-48020i200011-200308
main61107-48040i200308
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-48030i200011-200308
sub61108-48060
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61109-48030i200011-200308
sub61109-48060
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-48020i200011-200108
sub61131-48021
main61131-48021i200108-200308
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-48020i200011-200108
sub61132-48021
main61132-48021i200108-200308
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
main61141-48020i200011-200308
61142CEXTENSION, FRONT PILLAR, UPPER INNER LH
main61142-48020i200011-200308
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-48010i200011-200308
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-48010i200011-200308
61161PILLAR, FRONT BODY, UPPER INNER RH
main61161-48040i200011-200308
main61161-48060i200308
61162PILLAR, FRONT BODY, UPPER INNER LH
main61162-48040i200011-200308
main61162-48060i200308
61211RAIL, ROOF SIDE, OUTER RH
main61213-48010i200011-200308
61212RAIL, ROOF SIDE, OUTER LH
main61214-48010i200011-200308
61231RAIL, ROOF SIDE, INNER RH
main61231-48030i200011-200308
main61231-48040i200308
61232RAIL, ROOF SIDE, INNER LH
main61232-48030i200011-200308
main61232-48040i200308
61311BPILLAR, CENTER BODY, OUTER RH
main61311-48020i200011-200308
61312BPILLAR, CENTER BODY, OUTER LH
main61312-48020i200011-200308
61343APILLAR, CENTER BODY, INNER RH
main61343-48020i200011-200308
main61343-48040i200308
61344APILLAR, CENTER BODY, INNER LH
main61344-48020i200011-200308
main61344-48040i200308
61411PANEL, ROCKER, OUTER RH
main61401-48010i200011-200308
61412PANEL, ROCKER, OUTER LH
main61402-48010i200011-200308
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
main61427-48020i200011-200308
main61427-48040i200308
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
main61428-48020i200011-200308
main61428-48040i200308
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
main61603-48900i200011-200308
main61603-48904i200308
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
main61604-48900i200011-200308
main61604-48904i200308
61611PANEL, QUARTER, RH
main61611-48030i200011-200308
61612PANEL, QUARTER, LH
main61612-48030i200011-200412
sub61612-48031
sub90950-01919
main61612-48031i200412
61613EPANEL, QUARTER, INNER RH
main61613-48020i200011-200308
main61613-48040i200308
61614EPANEL, QUARTER, INNER LH
main61614-48020i200011-200308
main61614-48040i200308
61621DTROUGH, BACK DOOR OPENING, RH
main61621-48020i200011-200308
61622DTROUGH, BACK DOOR OPENING, LH
main61622-48020i200011-200308
61627AEXTENSION, QUARTER PANEL, LOWER RH
main61601-48010i200011-200308
61628AEXTENSION, QUARTER PANEL, LOWER LH
main61602-48010i200011-200308
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-48900i200011-200302
sub61631-48901
main61631-48901i200302-200308
main61631-48902i200308
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-48900i200011-200308
main61632-48901i200308
61637EBRACKET, QUARTER WHEEL HOUSE
main61637-32020i200011-200308
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
main61641-48010i200011-200308
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
main61642-48010i200011-200308
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
main61643-48010i200011-200308
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
main61644-48010i200011-200308
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-48010i200011-200308
main61645-48020i200308
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-48010i200011-200308
61707PANEL SUB-ASSY, QUARTER, INNER RH
main61707-48010i200011-200308
main61733-48040i200308
61708PANEL SUB-ASSY, QUARTER, INNER LH
main61708-48010i200011-200308
main61734-48040i200308
61711PANEL, ROOF SIDE, OUTER RH
main61711-48020i200011-200308
61712PANEL, ROOF SIDE, OUTER LH
main61712-48020i200011-200308
61713BREINFORCE, ROOF SIDE, OUTER RH
main61713-48010i200011-200302
sub61713-48011
main61713-48011i200302-200308
61714BREINFORCE, ROOF SIDE, OUTER LH
main61714-48010i200011-200302
sub61714-48011
main61714-48011i200302-200308
61715CBRACKET, ROOF SIDE, RH
main61715-48010i200011-200308
sub61715-48011
main61715-48010i200308-200601
sub61715-48011
main61715-48011i200602
main61715-48030i200308
main61716-48020i200308
61716CBRACKET, ROOF SIDE, LH
main61715-48010i200011-200308
sub61715-48011
main61715-48010i200308-200601
sub61715-48011
main61715-48011i200602
main61715-48030i200308
main61716-48020i200308
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
main61723-48020i200011-200308
main61723-48040i200308
61724AREINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1
main61724-48020i200011-200308
main61724-48040i200308
61731BPANEL, ROOF SIDE, INNER RH
main61731-48020i200011-200308
main61731-48040i200308
61732BPANEL, ROOF SIDE, INNER LH
main61732-48020i200011-200308
main61732-48040i200308
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-48020i200011-200302
sub61735-48021
main61735-48021i200302-200308
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-48020i200011-200302
sub61736-48021
main61736-48021i200302-200308
61822DPLATE, NOISE CONTROL, LH
main61822-48010i200011-200308
61824PLATE, NOISE CONTROL, NO.1
main61824-30050i200011-200304
sub61824-12080
main61826-48010i200304-200308
61824CPAD, NOISE SHUTTER, NO.1
main61824-17010i200011-200308
sub61824-12090
61824DPLATE, NOISE CONTROL, NO.1
main61824-48010i200011-200308
61825APLATE, NOISE CONTROL, NO.2
main61825-48010i200011-200308
61826APLATE, NOISE CONTROL, NO.3
main61826-48020i200011-200308
61827APLATE, NOISE CONTROL, NO.4
main61827-48010i200011-200307
sub61827-48011
main61827-48011i200307-200308
63175CREINFORCEMENT, BACK DOOR HINGE FEMALE, RH
main61703-48010i200308
main63175-48020i200011-200308
63176CREINFORCEMENT, BACK DOOR HINGE FEMALE, LH
main61704-48010i200308
main63176-48020i200011-200308
67388APROTECTOR, BACK DOOR EDGE
main67388-48010i200011-200308
75998GSTRIPE, QUARTER, LOWER RH
main75998-48010i200011-200308
75999FSTRIPE, QUARTER, LOWER LH
main75999-48010i200011-200308
9015960364
main90159-60364
9017908056
main90179-08056
9017910015
main90179-10015
9018906013
main90189-06013
9018906029
main90189-06029

83 parts on this diagram · 4 diagrams in section
