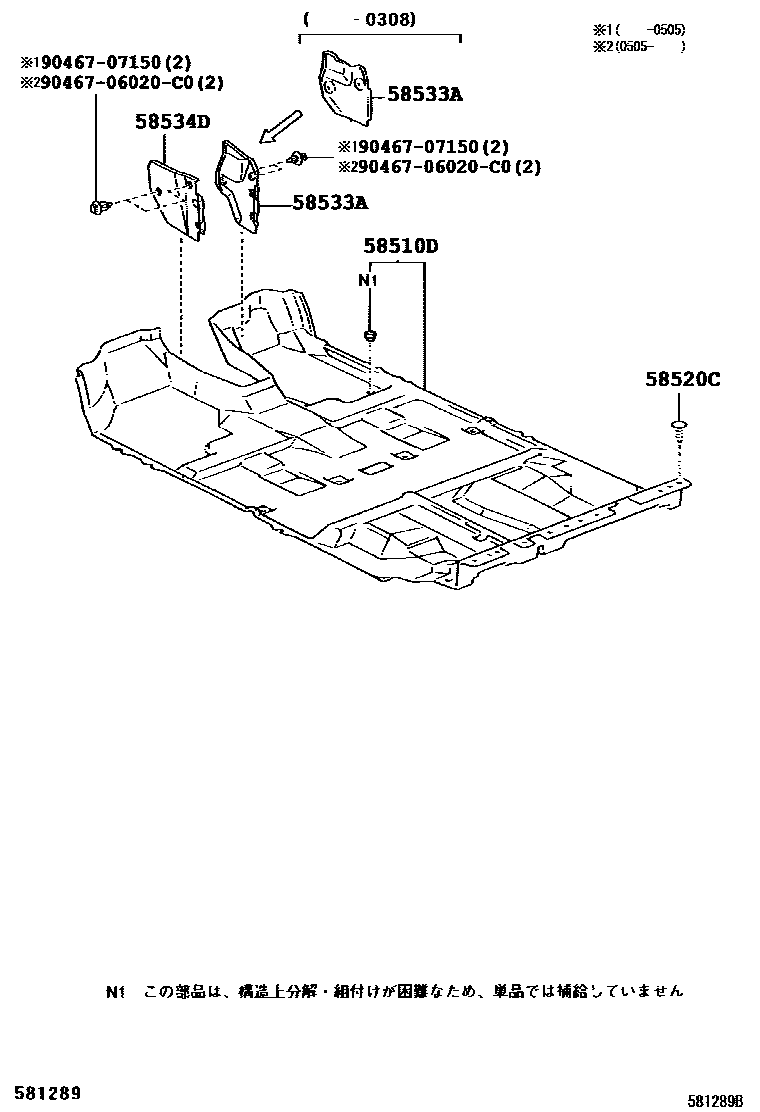

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-48050-B0iACU2#,MCU2#200011-200108

MEDIUM CHARCOAL,TRIM14

main58510-48050-B1iACU2#,MCU2#200011-200108

SHADOW GRAY,TRIM15

main58510-48051-B0iACU2#,MCU2#200108-200308

MEDIUM CHARCOAL,TRIM14

main58510-48051-B1iACU2#,MCU2#200108-200308

SHADOW GRAY,TRIM15

main58510-48100-B0iACU2#,MCU2#..05S200308-200510

LT.GRAY,TRIM1#

main58510-48100-C0iACU2#,MCU2#..05S200308-200510

BLACK,TRIM2#

main58510-48101-B0iACU2#,MCU2#..05S200510-200705

LT.GRAY,TRIM1#

main58510-48101-C0iACU2#,MCU2#..05S200510-200705

BLACK,TRIM2#

main58510-48120-B0iACU2#,MCU2#..07S200308-200510

LT.GRAY,TRIM1#

main58510-48120-C0iACU2#,MCU2#..07S200308-200510

BLACK,TRIM2#

main58510-48121-B0iACU2#,MCU2#..07S200510-200705

LT.GRAY,TRIM1#

main58510-48121-C0iACU2#,MCU2#..07S200510-200705

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iACU2#,MCU2#200011-200303

BLACK,TRIM14,15

sub90467-06016

sub90467-07049

main90467-07049-C0iACU2#,MCU2#200303-200308

BLACK,TRIM14,15

sub90467-07049

main90467-07049-C0iACU2#,MCU2#200308-200705

BLACK,TRIM2#

sub90467-07049

main90467-07049-P6iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub90467-07049

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-48040-B0iACU2#,MCU2#200011-200308

SHADOW GRAY,TRIM15

main58533-48040-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM14

main58533-48050-B1iACU2#,MCU2#200308-200705

NEW GRAY,TRIM1#

sub58533-48050

main58533-48050-C0iACU2#,MCU2#200308-200705

BLACK,TRIM2#

sub58533-48050

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-48040-B0iACU2#,MCU2#200011-200308

SHADOW GRAY,TRIM15

sub58534-48040

main58534-48040-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM14

sub58534-48040

main58534-48040-B3iACU2#,MCU2#200308-200705

NEW GRAY,TRIM1#

sub58534-48040

main58534-48040-C0iACU2#,MCU2#200308-200705

BLACK,TRIM2#

sub58534-48040

9046706020C0

main90467-06020C0

9046707150

main90467-07150

6 parts on this diagram · 2 diagrams in section
