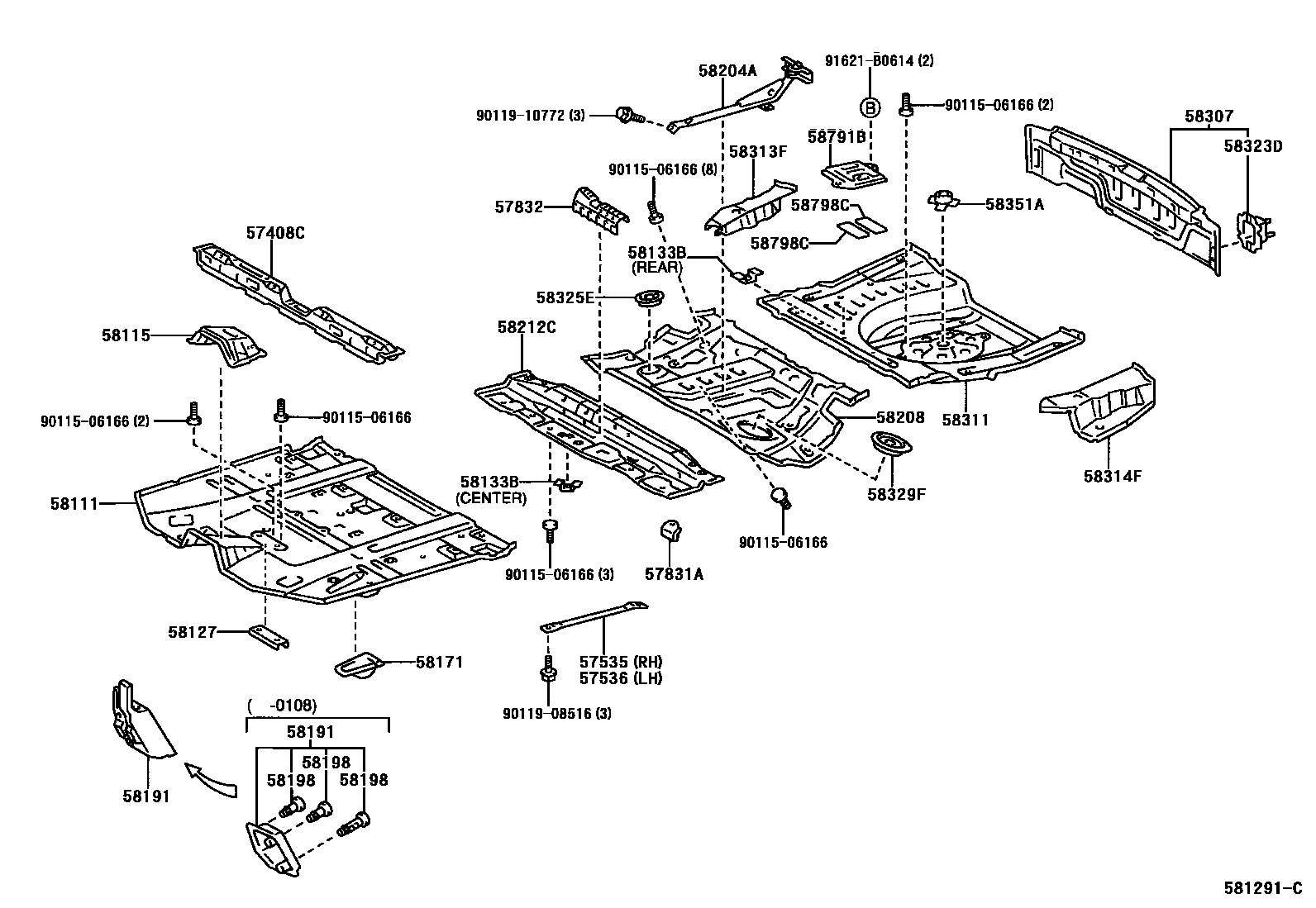

FLOOR PAN & LOWER BACK PANEL
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58127PATCH, FRONT FLOOR PANEL
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58351ABRACKET, SPARE WHEEL CARRIER
58791BCARRIER, JACK
58798CCUSHION, JACK CARRIER
9011506166
9011908516
9011910772
91621B0614
29 parts on this diagram · 4 diagrams in section
