INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SADDLE GRAY,TRIM14
SADDLE GRAY,TRIM1#
BLACK,TRIM15
BLACK,TRIM2#
55429CRETAINER, INSTRUMENT PANEL FINISH PANEL, LOWER NO.3
55548ACOVER, INSTRUMENT PANEL HOLE
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
SADDLE GRAY,TRIM14
SADDLE GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM15
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
SADDLE GRAY,TRIM1#
SADDLE GRAY,TRIM14
BLACK,TRIM15
BLACK,TRIM2#
55950ANOZZLE ASSY, DEFROSTER
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
SADDLE GRAY,TRIM1#
BLACK,TRIM2#
9010506228
main90105-06228
9011906144
main90119-06144
9011906251
main90119-06251
9017906115
main90179-06115
9017906206
main90179-06206
9017906278
main90179-06278
9017908086
main90179-08086
9018305094
main90183-05094
9018305103
main90183-05103
91621J0814
main91621-J0814
91631B0818
main91631-B0818
9356855016
main93568-55016

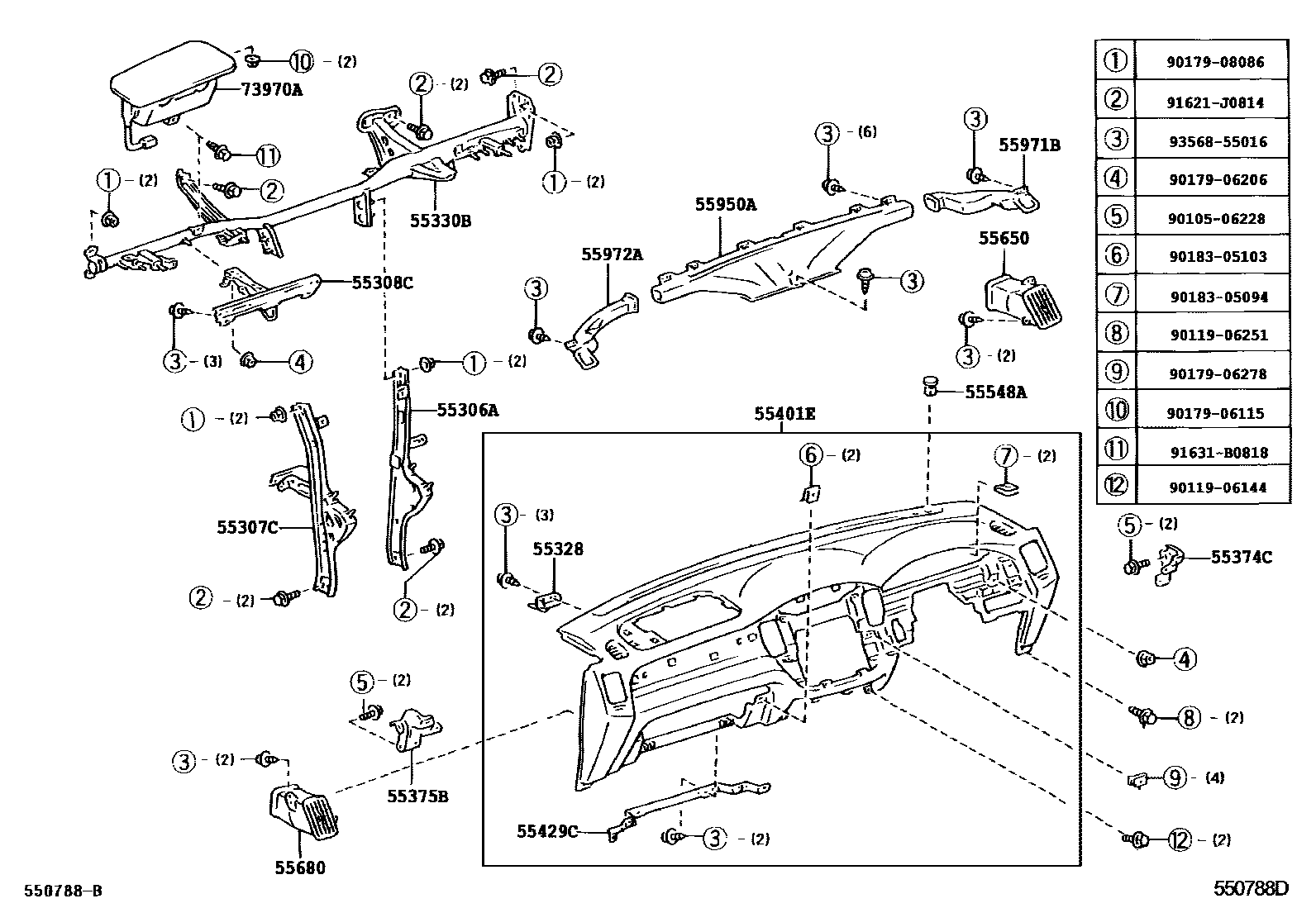

28 parts on this diagram · 4 diagrams in section
