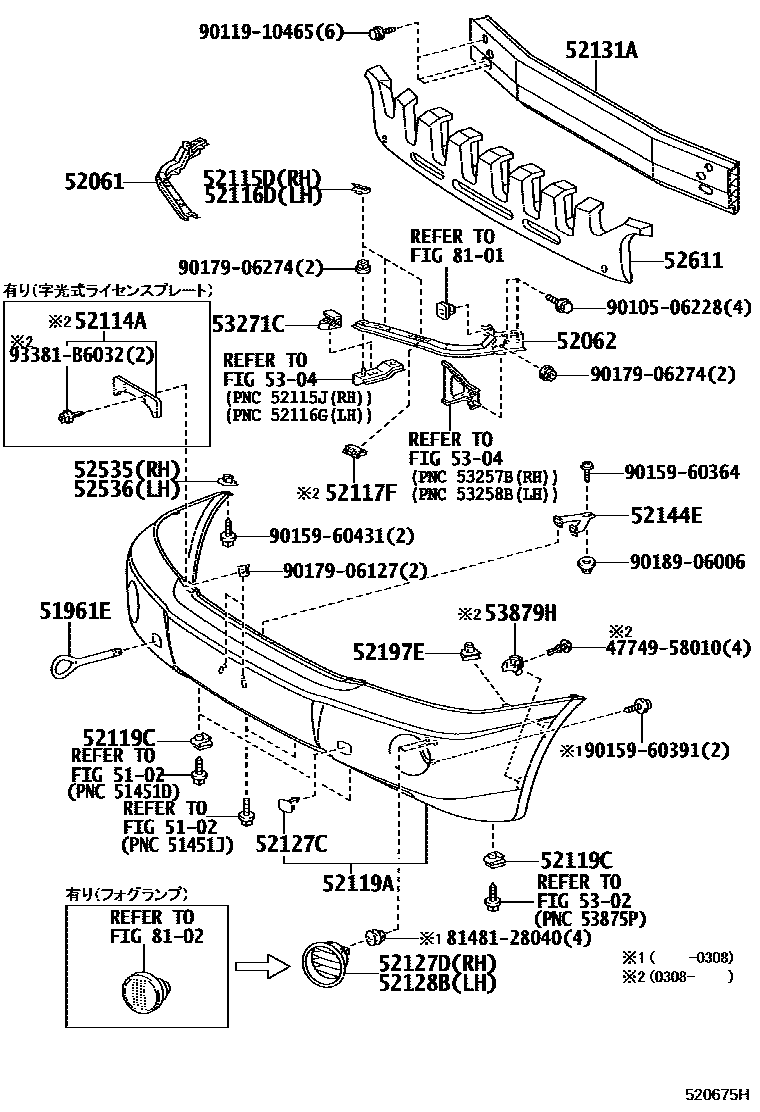

FRONT BUMPER & BUMPER STAY
5102
52061SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52062SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52117FSUPPORT, FRONT BUMPER, UPPER
52119CCLIP, FRONT BUMPER COVER
52127DCOVER, FRONT BUMPER HOLE, RH
sub81481-48903
52128BCOVER, FRONT BUMPER HOLE, LH
sub81482-48901
52144ESTAY, FRONT BUMPER, CENTER
52197EBRACKET, FRONT BUMPER SEAL
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5302
5304
53271CBRACKET, HEADLAMP MOUNTING
53879HRETAINER, FRONT FENDER LINER
8101
8102
4774958010CLIP, PIN HOLD
main47749-58010
8148128040BRACKET, FOG LAMP
main81481-28040
9010506228
main90105-06228
9011910465
main90119-10465
9015960364
main90159-60364
9015960391
main90159-60391
9015960431
main90159-60431
9017906127
main90179-06127
9017906274
main90179-06274
9018906006
main90189-06006
93381B6032
main93381-B6032
36 parts on this diagram · 1 diagram in section
