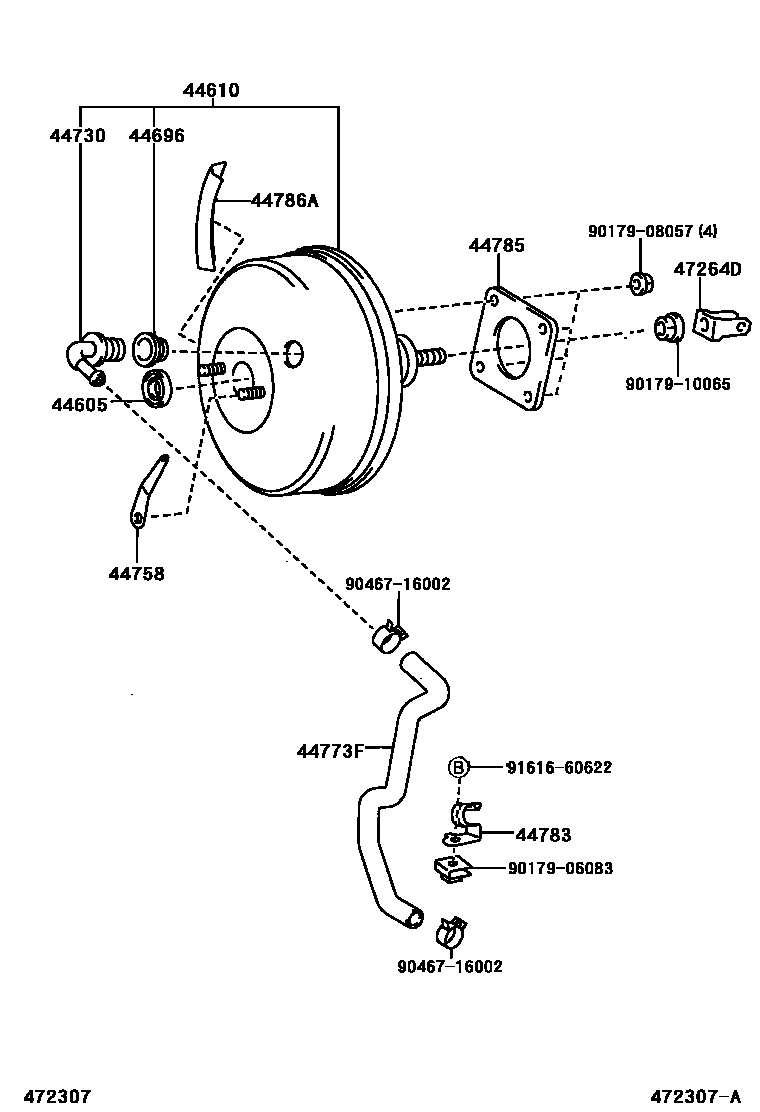

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-48010iACU2#,MCU2#200011-200308

44610BOOSTER ASSY, BRAKE

main44610-48090iACU2#,MCU2#200011-200308

main44610-48100iMCU2#200011-200308

main44610-48250iACU2#200308

sub44610-48251

main44610-48260iMCU2#200308

sub44610-48261

44696GROMMET, CHECK VALVE

main90480-24015iACU2#,MCU2#200011-200308

main90480-24439iACU2#,MCU2#200308

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iMCU2#200308

main44730-22150iACU2#200308

main44730-28010iACU2#,MCU2#200011-200308

44758BRACKET, VACUUM CHECK VALVE

main44758-12300iACU2#,MCU2#200011-200308

main44758-48010iMCU2#200308

44773FHOSE, UNION TO CHECK VALVE

main44773-48060iACU2#200011-200308

main44773-48070iMCU2#200011-200308

main44773-48090iACU2#200308

main44773-48120iMCU2#200308

44783CLAMP, VACUUM HOSE

main44783-28010iACU2#200011-200308

44785GASKET, BRAKE BOOSTER

main44785-10020iACU2#,MCU2#200308-200309

main44785-16020iACU2#,MCU2#200309

main44785-32010iACU2#,MCU2#200011-200308

44786AINSULATOR, BRAKE BOOSTER HEAT

main44786-48010iACU2#,MCU2#200011-200308

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iACU2#,MCU2#200011-200308

9017906083

main90179-06083

9017908057

main90179-08057

9017910065

main90179-10065

9046716002

main90467-16002

9161660622

main91616-60622

15 parts on this diagram · 4 diagrams in section
