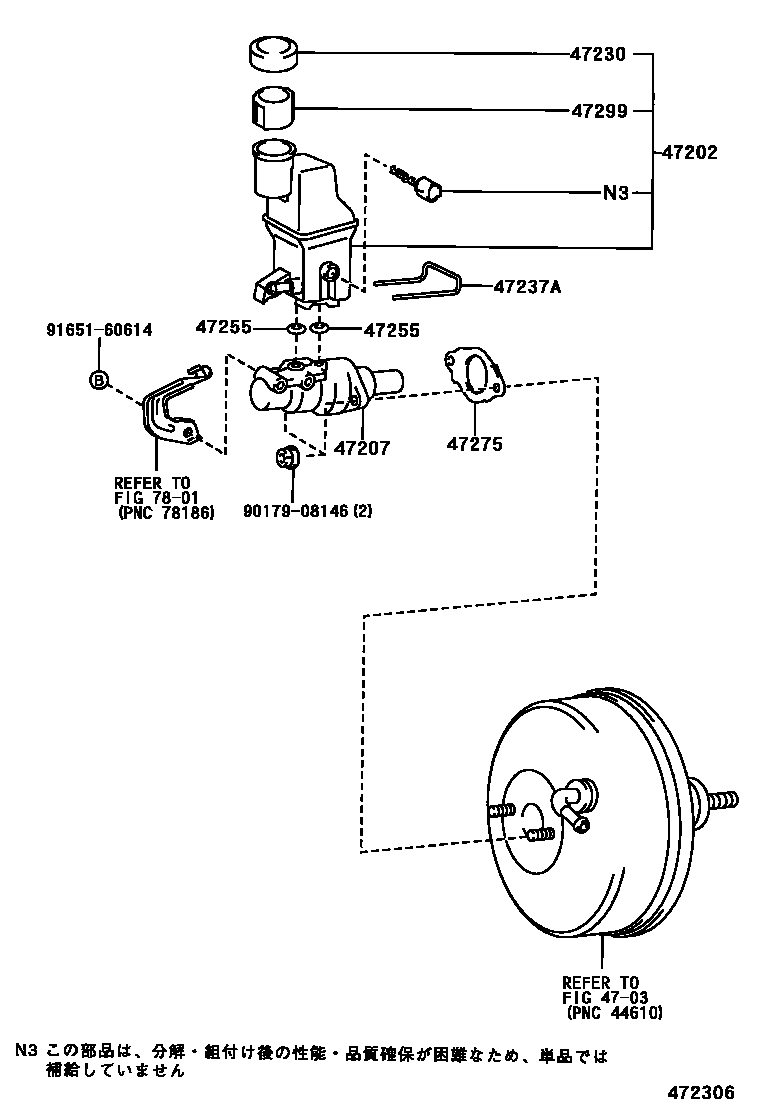

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48091iACU2#,MCU2#200011-200308

main47220-48101iMCU2#200011-200308

main47220-48150iACU2#,MCU2#200308

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-48010iACU2#,MCU2#200011-200308

main47207-48020iMCU2#200011-200308

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACU2#,MCU2#200308

main47230-48090iACU2#,MCU2#200011-200308

sub47230-48091

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-48010iACU2#,MCU2#200011-200308

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iACU2#,MCU2#200011-200308

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iACU2#,MCU2#200011-200308

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACU2#,MCU2#200308

main47299-52010iACU2#,MCU2#200011-200308

7801

9017908146

main90179-08146

9165160614

main91651-60614

11 parts on this diagram · 2 diagrams in section
