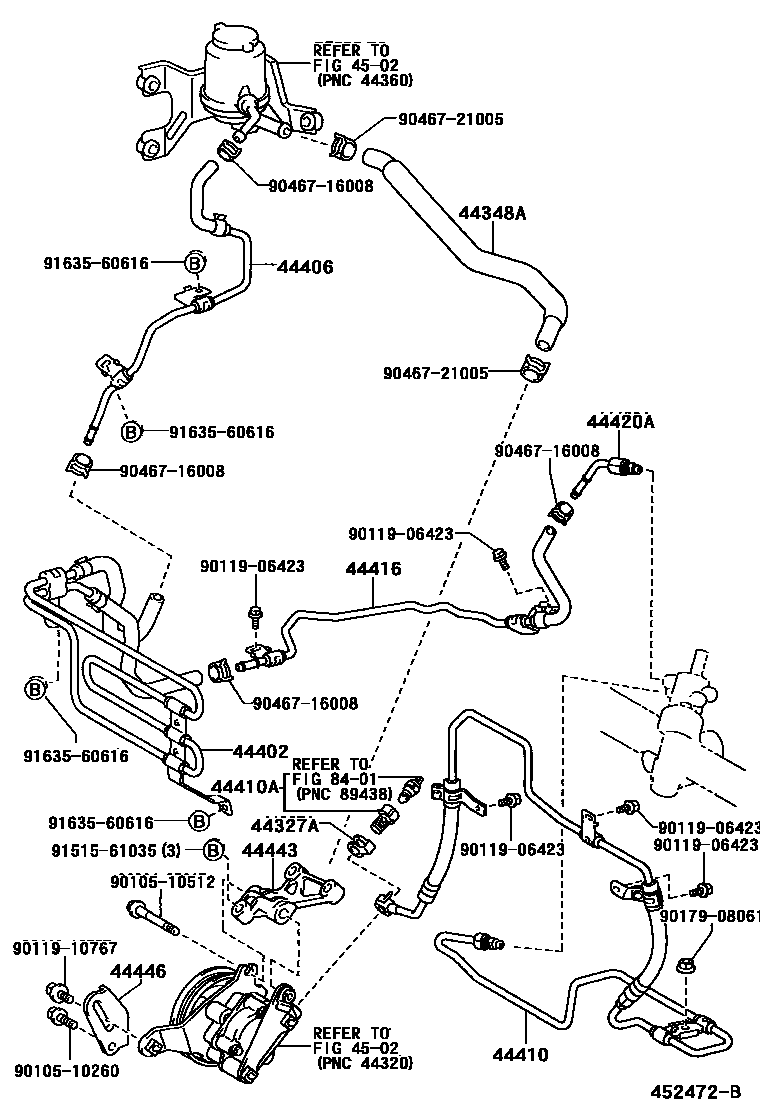

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACU2#,MCU2#200011-200308

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-48050iACU2#200011-200307

sub44348-48051

main44348-48051iACU2#200307-200308

main44348-48060iMCU2#200011-200307

sub44348-48061

main44348-48061iMCU2#200307-200308

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-48030iMCU2#200011-200307

sub44402-48031

main44402-48031iMCU2#200307-200412

sub44402-48032

main44402-48032iMCU2#200412

44406TUBE SUB-ASSY, RETURN

main44406-48050iACU2#200011-200308

sub44406-48051

main44406-48060iMCU2#200011-200308

sub44406-48061

main44406-48110iACU2#200308-200412

sub44406-48111

main44406-48111iACU2#200412

main44406-48120iMCU2#200308-200412

sub44406-48121

main44406-48121iMCU2#200412

44410TUBE ASSY, PRESSURE FEED

main44410-48060iACU2#200011-200302

sub44410-48130

main44410-48070iMCU2#200011-200308

main44410-48130iACU2#200302-200308

main44410-48151iMCU2#200308

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCU2#200011-200308

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-48040iACU2#,MCU2#200011-200307

sub44416-48041

main44416-48041iACU2#,MCU2#200307-200411

sub44416-48042

main44416-48042iACU2#,MCU2#200412-200604

sub44416-48043

main44416-48043iACU2#,MCU2#200605

44420ATUBE ASSY, RETURN

main44420-48020iACU2#,MCU2#200011-200308

44443BRACKET, PUMP

main44443-33041iMCU2#200011-200308

44446STRUT, ADJUSTING

main44446-28030iMCU2#200011-200308

4502

8401

9010510260

main90105-10260

9010510512

main90105-10512

9011906423

main90119-06423

9011910767

main90119-10767

9017908061

main90179-08061

9046716008

main90467-16008

9046721005

main90467-21005

9151561035

main91515-61035

9163560616

main91635-60616

21 parts on this diagram · 3 diagrams in section
