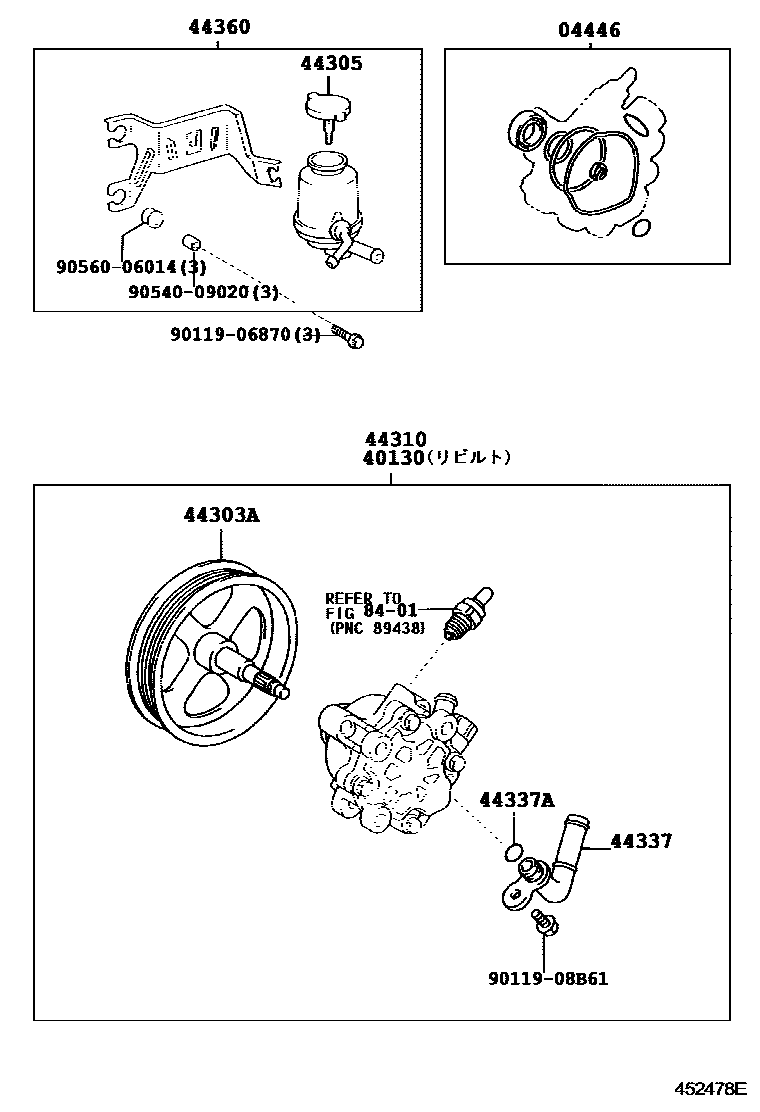

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iACU2#¥970200011-200308

main04446-34010iMCU2#¥2,320200011-200308

sub04446-53030¥1,360

main04446-53030iMCU2#¥1,360200308

40130PUMP ASSY,VANE REBUILT

main40130-48030iACU2#¥66,200200011-200308

sub40130-28240¥66,500

main40130-48050iACU2#¥66,500200308

sub44310-48050¥94,600

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iACU2#¥5,400200011-200308

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACU2#,MCU2#¥1,590200011-200308

sub44305-28060¥1,590

44310PUMP ASSY, VANE

main44310-48030iACU2#¥94,500200011-200308

sub44310-28240¥94,600

main44310-48050iACU2#¥94,600200308

44337UNION, POWER STEERING SUCTION PORT

main44337-48010iACU2#¥1,670200011-200308

main44337-48020iMCU2#¥1,870200011-200308

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMCU2#¥140200011-200308

main90301-11020iACU2#¥140200011-200308

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-48030iACU2#,MCU2#¥10,300200011-200308

8401

9011906870

main90119-06870¥90

9011908B61

main90119-08B61¥60

9054009020

main90540-09020¥260

9056006014

main90560-06014¥350

13 parts on this diagram · 2 diagrams in section
