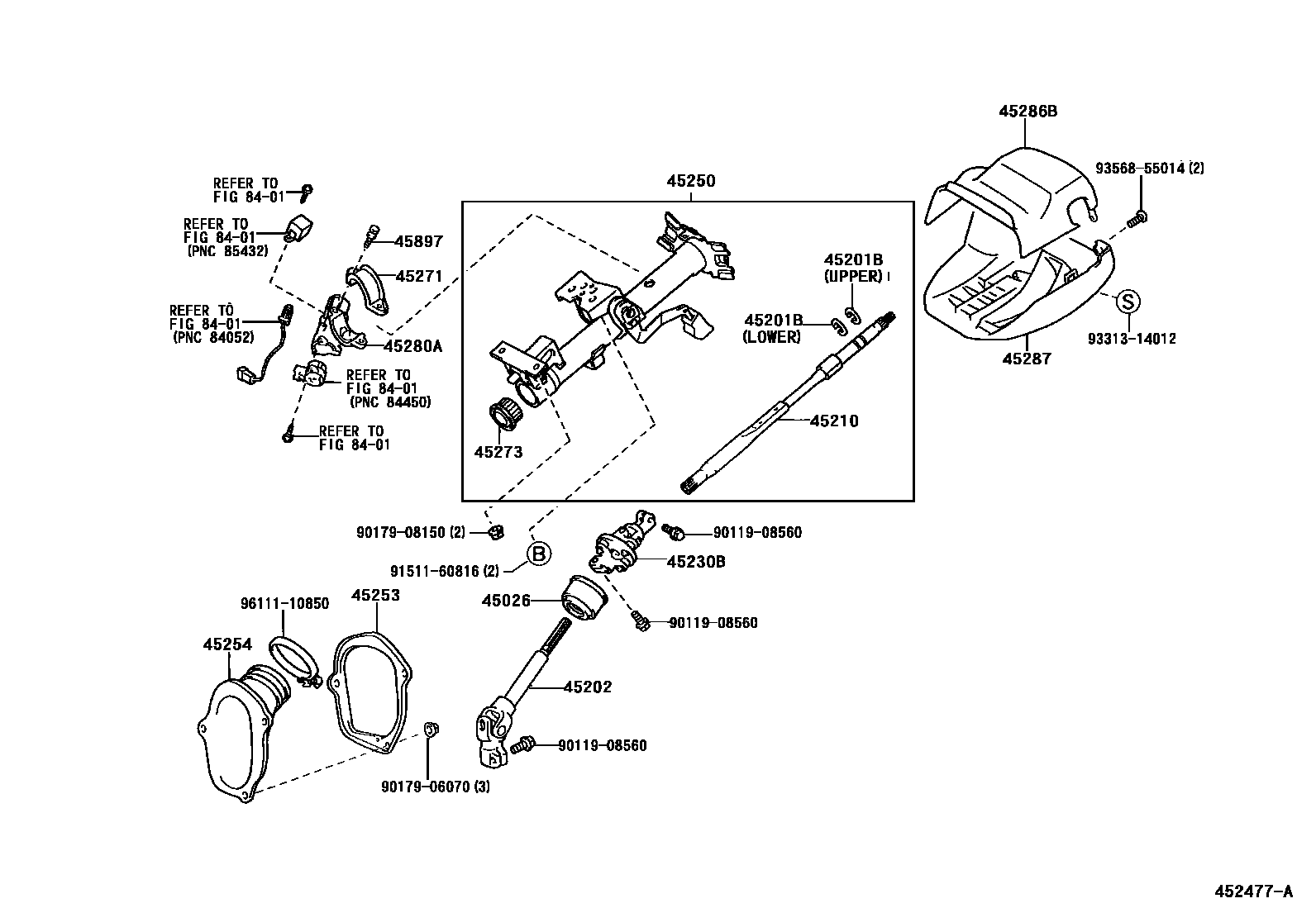

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45210SHAFT ASSY, STEERING MAIN
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45250COLUMN ASSY, STEERING
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9017906070
main90179-06070
9017908150
main90179-08150
9151160816
main91511-60816
9331314012
main93313-14012
9356855014
main93568-55014
9611110850
main96111-10850
22 parts on this diagram · 2 diagrams in section
