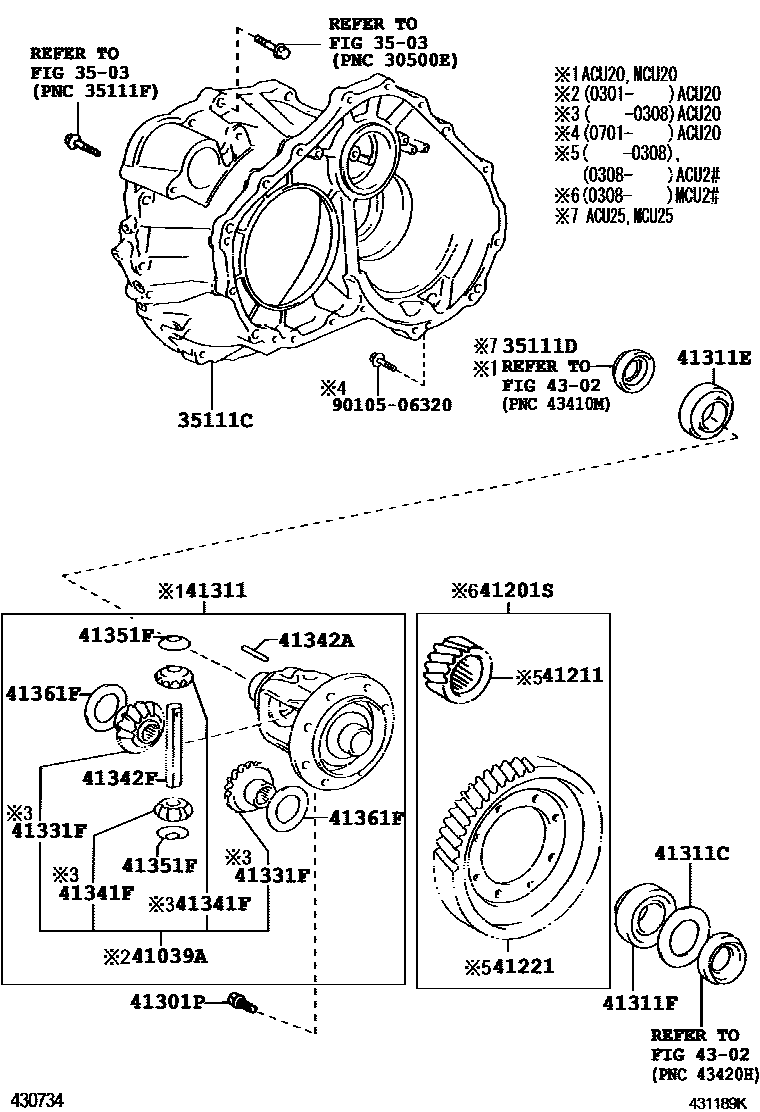

FRONT AXLE HOUSING & DIFFERENTIAL
3503
35111CHOUSING, TRANSAXLE
sub35105-28011
sub35105-28012
sub35105-28031
sub35105-42011
sub35105-42012
sub35105-42013
sub35105-44060
sub35105-48021
sub35105-48022
41039AGEAR KIT, DIFFERENTIAL
sub41039-28030
41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302
9010506320
main90105-06320
20 parts on this diagram · 1 diagram in section
