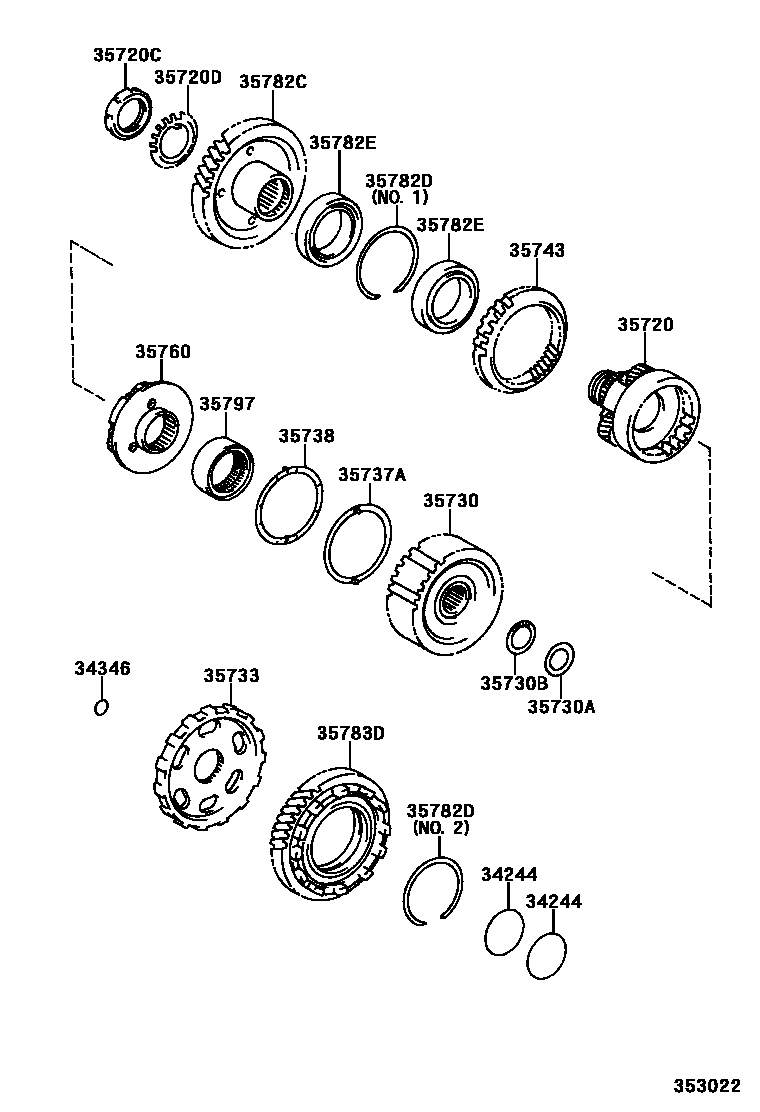

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U140E,U140F,U241E 0003 1U151E,U151F

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010iACU2#,MCU2#200011-200308

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iACU20200407

main34346-28010iACU25,MCU2#200011-200611

sub34346-21011

35720GEAR ASSY, FRONT PLANETARY

main35720-28030iMCU2#200011-200207

sub35720-28070

main35720-28040iACU2#200011-200207

sub35720-28080

main35720-28070iMCU2#200207-200308

main35720-28080iACU20200207-200407

main35720-44010iACU20200407

sub35720-28080

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iACU2#,MCU2#200011-200308

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iACU2#,MCU2#200011-200308

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iACU20200407

sub35730-28020

main35730-28010iACU2#,MCU2#200011-200203

sub35730-28020

sub35737-28020

main35730-28020iACU20200203-200407

main35730-33010iMCU2#200308-200601

sub35730-33011

main35730-33011iMCU2#200601

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35788-33010iMCU2#200308

main35789-21010iACU2#,MCU2#200011-200308

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-31007iMCU2#200308

main90374-33003iACU2#,MCU2#200011-200308

main90374-55002iMCU2#200308

main90374-55003iMCU2#200308

35733GEAR, PARKING LOCK

main35733-21010iMCU20200011-200308

main35733-32040iACU20200011-200308

main35733-48010iACU25,MCU25200011-200308

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iACU20200407

main35737-28010iACU25200011-200407

main35737-28020iMCU2#200308

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iACU20200407

main35737-28010iACU2#,MCU2#200011-200203

main35737-28020iACU20200203-200407

main35738-33030iMCU2#200308

35743GEAR, FRONT PLANETARY RING

main35743-21010iACU20200407

sub35743-28010

main35743-28010iACU20200011-200407

35760GEAR ASSY, REAR PLANETARY

main35760-28010iACU2#,MCU2#200011-200407

main35760-33030iACU20200407

sub35760-28010

main35760-33040iMCU2#200308

sub35760-42010

sub35737-42010

35782CGEAR, COUNTER DRIVE

main35782-28010iACU25,MCU2#200011-200308

main35782-28020iACU20200011-200407

main35782-32031iACU20200407

sub35782-28020

main35782-33020iMCU2#200308

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iACU2#,MCU2#200011-200308

main90520-87004iMCU2#200308

main90520-89002iACU20200011-200407

sub90520-89004

main90520-89004iACU25,MCU2#200308

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-59001iMCU2#200308

main90366-60009iACU25200011-200407

main90369-59001iACU20200407

35783DGEAR, COUNTER DRIVEN

main35783-28010iACU25,MCU2#200011-200308

main35783-28020iACU20200011-200407

main35783-32031iACU20200407-200502

sub35783-33040

main35783-33030iMCU2#200308

main35783-33040iACU20200502

sub35783-28020

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iACU2#,MCU2#200011-200308

18 parts on this diagram · 2 diagrams in section
