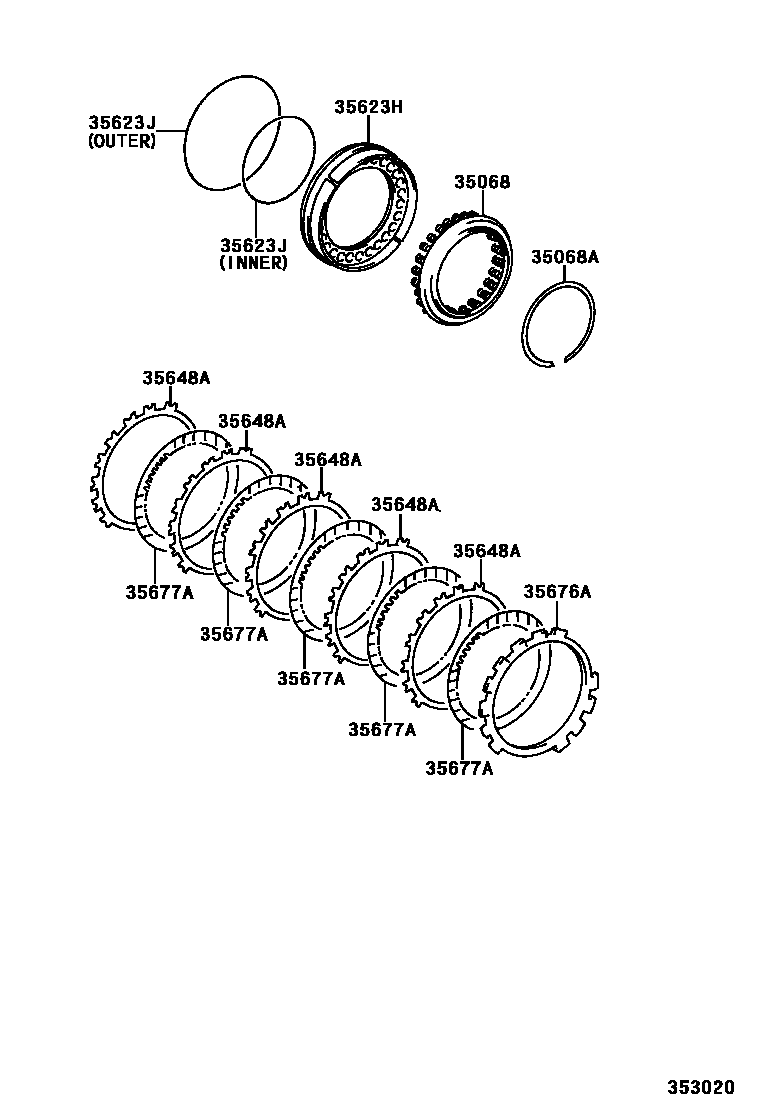

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U140F,U241E 0002 1U140E,U140F,U151E,U151F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iACU2#¥3,170200011-200705

main35068-21011iACU25¥2,490200404-200705

main35068-33020iMCU2#¥2,030200308-200404

sub35068-33021¥2,910

main35068-33021iMCU2#¥2,910200404

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iACU2#,MCU2#¥260200011-200308

35623HPISTON, 1ST & REVERSE BRAKE

main35623-28010iMCU2#¥3,070200011-200308

main35623-28020iACU25¥3,140200011-200407

main35623-33030iMCU2#¥4,250200308

main35623-48010iACU20¥3,760200407-200705

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iACU2#,MCU2#¥200200011-200308

main90301-99098iACU2#,MCU2#¥320200011-200308

sub90301-99134¥270

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21010iACU20¥1,070200407-200509

sub35692-21011¥890

main35692-21011iMCU2#¥890200509

main35692-28010iMCU2#¥1,070200011-200509

sub35692-21011¥890

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iACU2#,MCU2#¥2,500200011-200308

main35678-21020iACU2#,MCU2#¥2,500200011-200308

main35678-21030iACU2#,MCU2#¥2,570200011-200308

main35678-21040iACU2#,MCU2#¥2,570200011-200308

main35678-21050iACU2#,MCU2#¥2,670200011-200308

main35678-21060iACU2#,MCU2#¥2,670200011-200308

main35678-21070iACU2#,MCU2#¥2,740200011-200308

main35678-21080iACU2#,MCU2#¥2,820200011-200308

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-21010iACU20¥900200407-200705

main35682-28010iACU20¥750200011-200407

7 parts on this diagram · 2 diagrams in section
