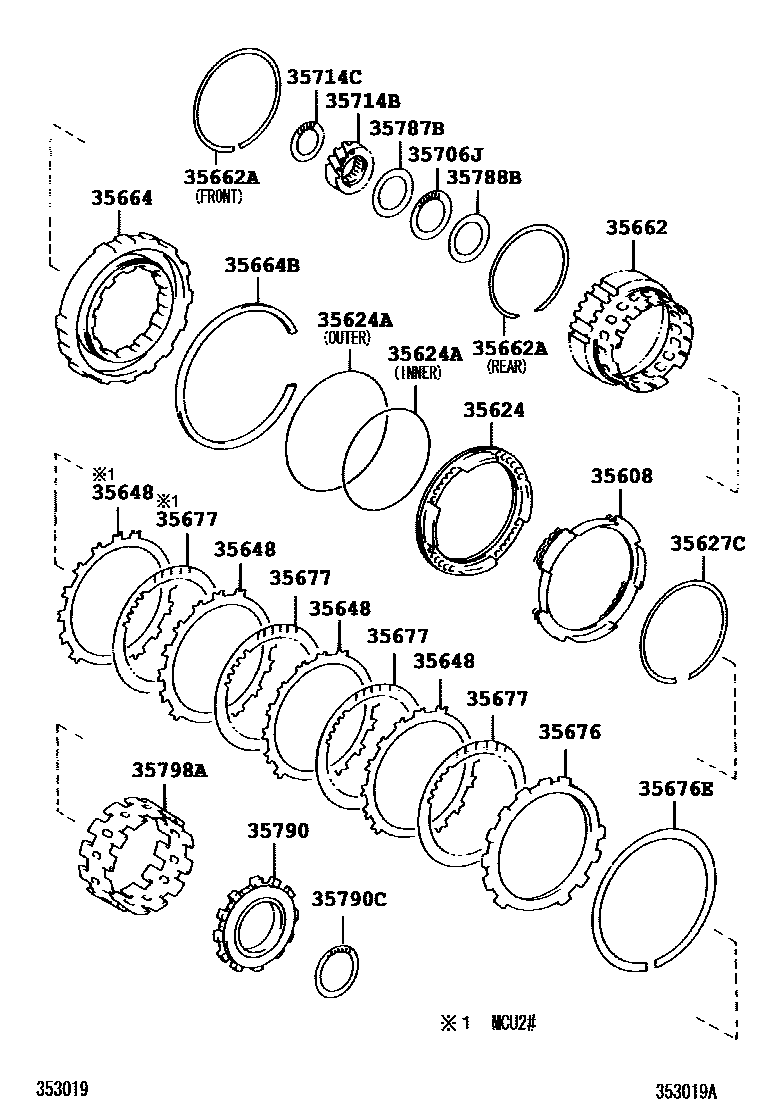

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1U140E,U140F,U241E 0003 1U151E,U151F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-21010iACU2#,MCU2#¥1,400200011-200705

35624PISTON, 2ND BRAKE

main35624-28010iMCU2#¥3,720200011-200308

main35624-28020iACU20¥3,330200011-200705

main35624-33020iMCU2#¥3,480200308

main35624-33030iACU20¥3,730200407-200705

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99093iACU2#,MCU2#¥200200011-200308

main90301-99095iACU2#,MCU2#¥200200011-200308

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-99036iACU2#,MCU2#¥260200011-200308

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35691-21010iACU20¥1,260200407-200705

main35691-28010iMCU2#¥1,050200011-200407

35662HUB, BRAKE

main35662-21010iACU20¥10,700200407-200705

sub35662-06010¥10,600

main35662-28010iACU20¥9,000200011-200407

sub35662-06010¥10,600

35662ARING, SNAP (FOR BRAKE HUB)

main90520-99024iACU2#,MCU2#¥260200011-200308

main90520-99033iACU2#,MCU2#¥330200011-200308

35664CYLINDER, 2ND BRAKE

main35664-21011iACU2#,MCU2#¥4,850200011-200308

sub35664-33010¥5,700

main35664-33010iACU2#,MCU2#¥5,700200308

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99027iACU2#,MCU2#¥470200011-200308

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-21010iACU20¥6,300200407-200705

main35676-21020iACU20¥6,100200407-200705

main35676-21070iACU2#,MCU2#¥4,700200011-200308

main35676-21080iACU2#,MCU2#¥4,840200011-200308

main35676-21090iACU2#,MCU2#¥4,970200011-200308

main35676-21100iACU2#,MCU2#¥5,100200011-200308

main35676-21110iACU2#,MCU2#¥5,100200011-200308

main35676-21120iACU2#,MCU2#¥5,100200011-200308

main35676-21130iACU2#,MCU2#¥5,300200011-200308

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90520-99026iACU2#,MCU2#¥400200011-200308

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35681-21010iACU20¥1,200200407-200705

main35681-28010iMCU2#¥990200011-200407

main35681-33010iMCU2#¥1,200200308

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-38002iACU2#,MCU2#¥1,180200011-200308

main90374-40004iMCU2#¥1,180200308

35714BGEAR, INPUT SUN

main35714-21010iACU20¥2,620200407-200705

sub35714-28010¥2,180

main35714-28010iACU20¥2,180200011-200407

main35714-33010iMCU2#¥2,500200308

35714CBEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)

main90374-32011iMCU2#¥730200308

main90374-34006iACU2#,MCU2#¥1,300200011-200308

35787BRACE, THRUST BEARING, NO.2

main34739-33010iMCU2#¥160200308

main35787-21010iACU2#¥500200308

main35787-21010iACU2#,MCU2#¥500200011-200308

35788BRACE, THRUST BEARING, NO.3

main35788-20010iMCU2#¥1,140200308-200602

sub35788-20011¥1,130

main35788-20011iMCU2#¥1,130200602

main35788-21010iACU2#,MCU2#¥460200011-200308

35790CLUTCH ASSY, 1 WAY

main35790-28020iMCU2#¥16,500200011-200308

main35790-28030iACU2#¥13,400200011-200407

main35790-33020iACU20¥16,000200407

35790CBEARING, THRUST NEEDLE ROLLER

main90374-53001iACU2#,MCU2#¥1,600200011-200308

sub90374-53006¥1,600

35798ASLEEVE, 1WAY CLUTCH, OUTER

main35798-21011iACU20¥1,530200407-200705

sub35798-28010¥1,260

main35798-28010iACU2#,MCU2#¥1,260200011-200407

20 parts on this diagram · 2 diagrams in section
