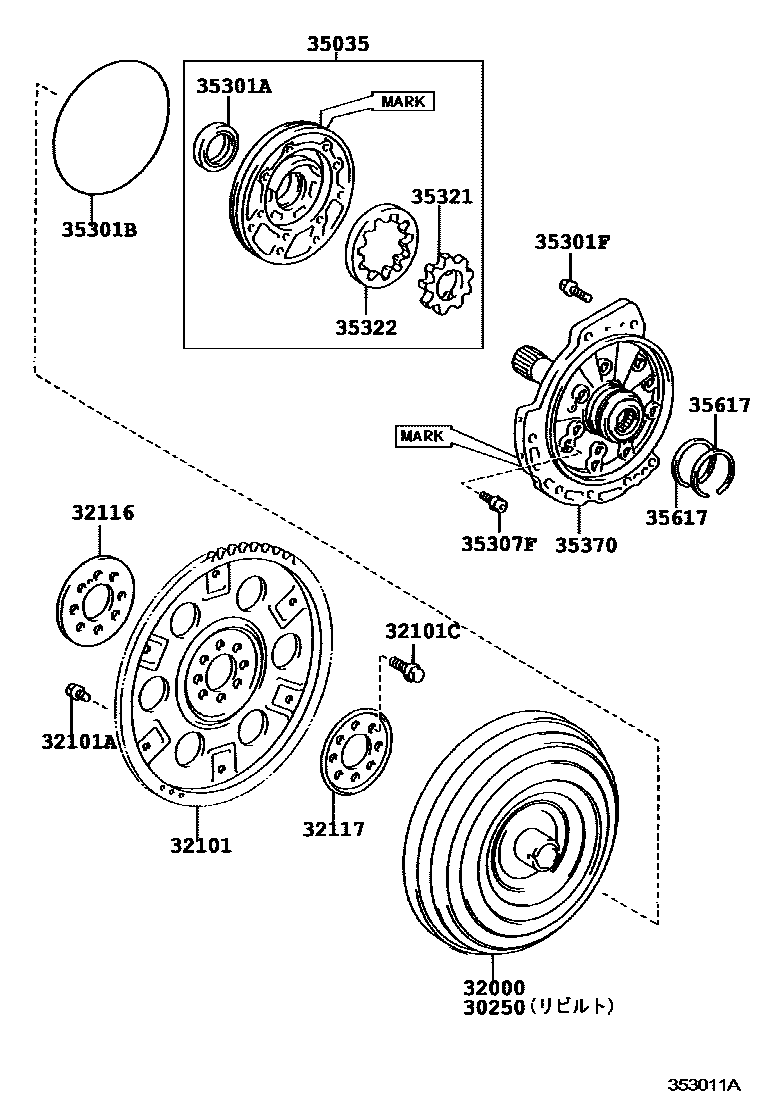

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1U140E,U140F,U241E 0003 1U151E,U151F

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-28140iMCU2#200011-200308

main30250-28150iACU25200011-200705

main30250-33110iMCU2#200308-200705

32000CONVERTER ASSY, TORQUE

main32000-28140iMCU2#200011-200308

main32000-28150iACU2#200011-200705

main32000-33110iMCU2#200308-200705

main32000-44060iACU20200407-200705

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06010iMCU2#200308

main32101-28040iACU2#200011-200308

main32101-33010iMCU2#200011-200211

sub32101-48010

main32101-48010iMCU2#200308

main32101-48010iMCU2#200211-200308

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iACU2#,MCU2#200011-200308

main90119-09025iACU2#,MCU2#200011-200308

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iMCU2#200011-200308

main90105-10048iACU25200303-200308

main90105-12184iACU2#200011-200308

sub90105-12384

main90105-A0022iMCU2#200303-200308

32116SPACER, DRIVE PLATE, FRONT

main32116-20050iACU2#200011-200308

main32116-32020iMCU2#200011-200308

32117SPACER, DRIVE PLATE, REAR

main32117-20060iACU2#200011-200308

main32117-32020iMCU2#200011-200308

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-08010iMCU2#200406

main35035-21020iACU20200407

sub35035-28010

main35035-28010iACU20200407

sub35035-12070

main35035-28010iACU2#,MCU2#200011-200407

sub35035-12070

main35035-33020iMCU2#200308

sub35035-12080

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90080-31068iMCU2#200406

main90311-38064iACU2#,MCU2#200011-200111

main90311-38083iACU2#,MCU2#200111-200308

main90311-38083iACU2#200308

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99099iACU2#,MCU2#200011-200308

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iACU2#,MCU2#200011-200403

main90105-08198iACU20200403-200407

35307FBOLT (FOR STATOR SHAFT)

main90080-14044iMCU2#200406

main90148-60027iMCU2#200308

main90148-60027iACU2#,MCU2#200011-200308

35321GEAR, FRONT OIL PUMP DRIVE

main35321-08010iMCU2#200406-200705

main35321-08020iMCU2#200406-200705

main35321-08030iMCU2#200406-200705

main35321-08040iMCU2#200406-200705

main35321-08050iMCU2#200406-200705

main35321-21060iACU20200407-200705

sub35321-28060

main35321-21070iACU20200407-200705

sub35321-28070

main35321-21080iACU20200407-200705

sub35321-28080

main35321-21090iACU20200407-200705

sub35321-28090

main35321-21100iACU20200407-200705

sub35321-28100

main35321-28060iACU2#,MCU2#200011-200705

main35321-28070iACU2#,MCU2#200011-200705

main35321-28080iACU2#200011-200705

main35321-28090iACU2#,MCU2#200011-200705

main35321-28100iACU2#200011-200705

main35321-33060iMCU2#200308-200705

main35321-33070iMCU2#200308-200705

main35321-33080iMCU2#200308-200705

main35321-33090iMCU2#200308-200705

main35321-33100iMCU2#200308-200705

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-08010iMCU2#200406-200705

main35322-08020iMCU2#200406-200705

main35322-08030iMCU2#200406-200705

main35322-08040iMCU2#200406-200705

main35322-08050iMCU2#200406-200705

main35322-21060iACU20200407-200705

sub35322-28060

main35322-21070iACU20200407-200705

sub35322-28070

main35322-21080iACU20200407-200705

sub35322-28080

main35322-21090iACU20200407-200705

sub35322-28090

main35322-21100iACU20200407-200705

sub35322-28100

main35322-28060iACU2#200011-200705

main35322-28070iACU2#200011-200705

main35322-28080iACU2#200011-200705

main35322-28090iACU2#200011-200705

main35322-28100iACU2#,MCU2#200011-200705

main35322-33060iMCU2#200308-200705

main35322-33070iMCU2#200308-200705

main35322-33080iMCU2#200308-200705

main35322-33090iMCU2#200308-200705

main35322-33100iMCU2#200308-200705

35370SHAFT ASSY, STATOR

main35370-06010iMCU2#200406

main35370-21020iACU20200407

sub35370-28010

main35370-28010iACU25200308

sub35370-12110

main35370-28010iACU20200407

sub35370-12110

main35370-28010iACU2#,MCU2#200011-200407

sub35370-12110

35617RING, CLUTCH DRUM OIL SEAL

main35613-21010iACU2#,MCU2#200011-200308
