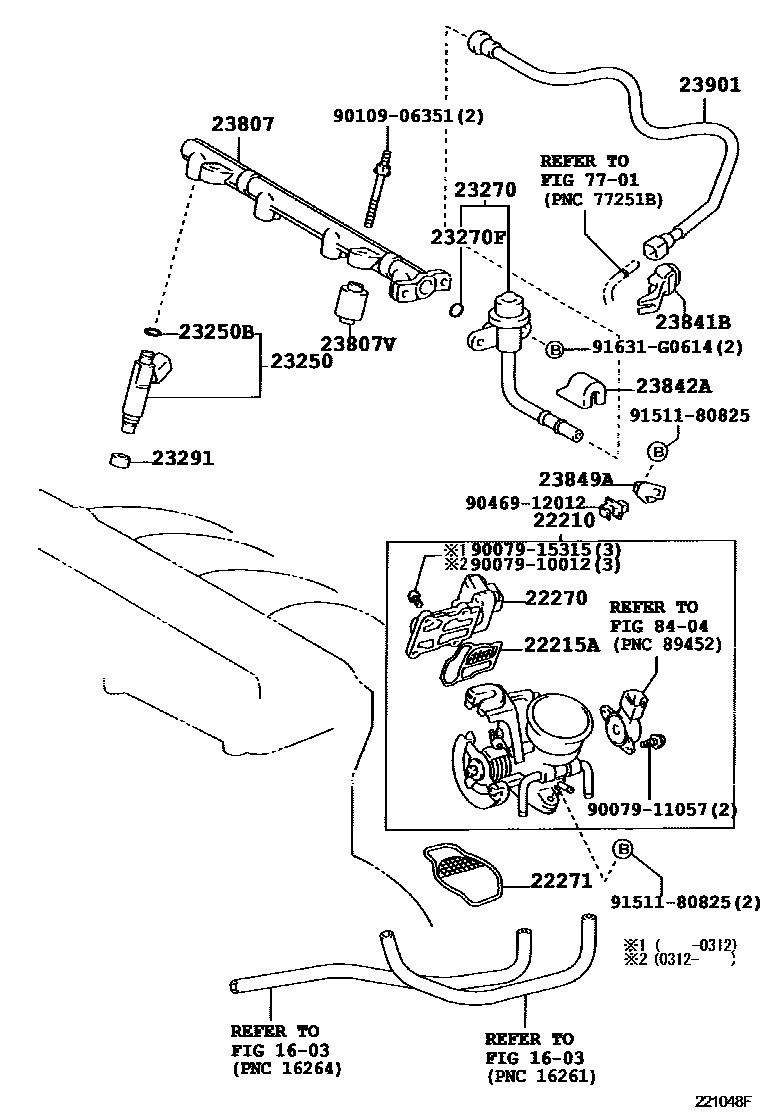

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

22210BODY ASSY, THROTTLE

main22030-20060i1MZFE..MCU2#200308-200705

main22210-20130i1MZFE..MCU2#200011-200308

main22210-28060i2AZFE..ACU2#200011-200312

sub22210-28090

main22210-28090i2AZFE..ACU2#200312-200705

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-20010i1MZFE..MCU2#200011-200308

main22215-28041i2AZFE..ACU2#200011-200108

sub22215-28042

main22215-28042i2AZFE..ACU2#200108-200312

main22215-7A680i2AZFE..ACU2#200312

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-20050i1MZFE..MCU2#200011-200308

main22270-28010i2AZFE..ACU2#200011-200312

main22270-28020i2AZFE..ACU2#200312

22271GASKET, THROTTLE BODY

main22271-20020i1MZFE..MCU2#200011-200308

main22271-28020i2AZFE..ACU2#200011-200308

23250INJECTOR ASSY, FUEL

main23209-20020i1MZFE..MCU2#200011-200308

main23209-20030i1MZFE..MCU2#200308

sub23209-20040

main23209-28020i2AZFE..ACU2#200011-200308

main23209-28080i2AZFE..ACU2#200308

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1MZFE..MCU2#200011-200607

main90301-07037i1MZFE..MCU2#200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i2AZFE..ACU2#200011-200308

sub23270-28021

main23270-62010i1MZFE..MCU2#200011-200410

sub23270-62011

main23270-62011i1MZFE..MCU2#200410

sub23207-20010

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACU2#200011-200705

23291INSULATOR, INJECTOR VIBRATION

main23291-20010i1MZFE..MCU2#200011-200308

main23291-41010i1MZFE..MCU2#200011-200308

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCU2#200011-200401

sub23814-20021

main23814-20021i1MZFE..MCU2#200401

main23814-28020i2AZFE..ACU2#200011-200312

sub23814-28031

main23814-28031i2AZFE..ACU2#200312

sub23814-28060

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1MZFE..MCU2#200011-200308

main90561-08053i2AZFE..ACU2#200011-200308

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1MZFE..MCU2#200705

main23841-28010i2AZFE..ACU2#200011-200704

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFE..ACU2#200011-200308

23849ASUPPORT, FUEL PIPE

main23849-28010i2AZFE..ACU2#200011-200308

23901TUBE SUB-ASSY, FUEL

main23901-28070i2AZFE..ACU2#200011-200302

sub23901-28071

main23901-28071i2AZFE..ACU2#200302-200408

sub23901-28072

main23901-28072i2AZFE..ACU2#200408

7701

8404

9007910012

main90079-10012

9007911057

main90079-11057

9007915315

main90079-15315

9010906351

main90109-06351

9046912012

main90469-12012

9151180825

main91511-80825

91631G0614

main91631-G0614

25 parts on this diagram · 6 diagrams in section
