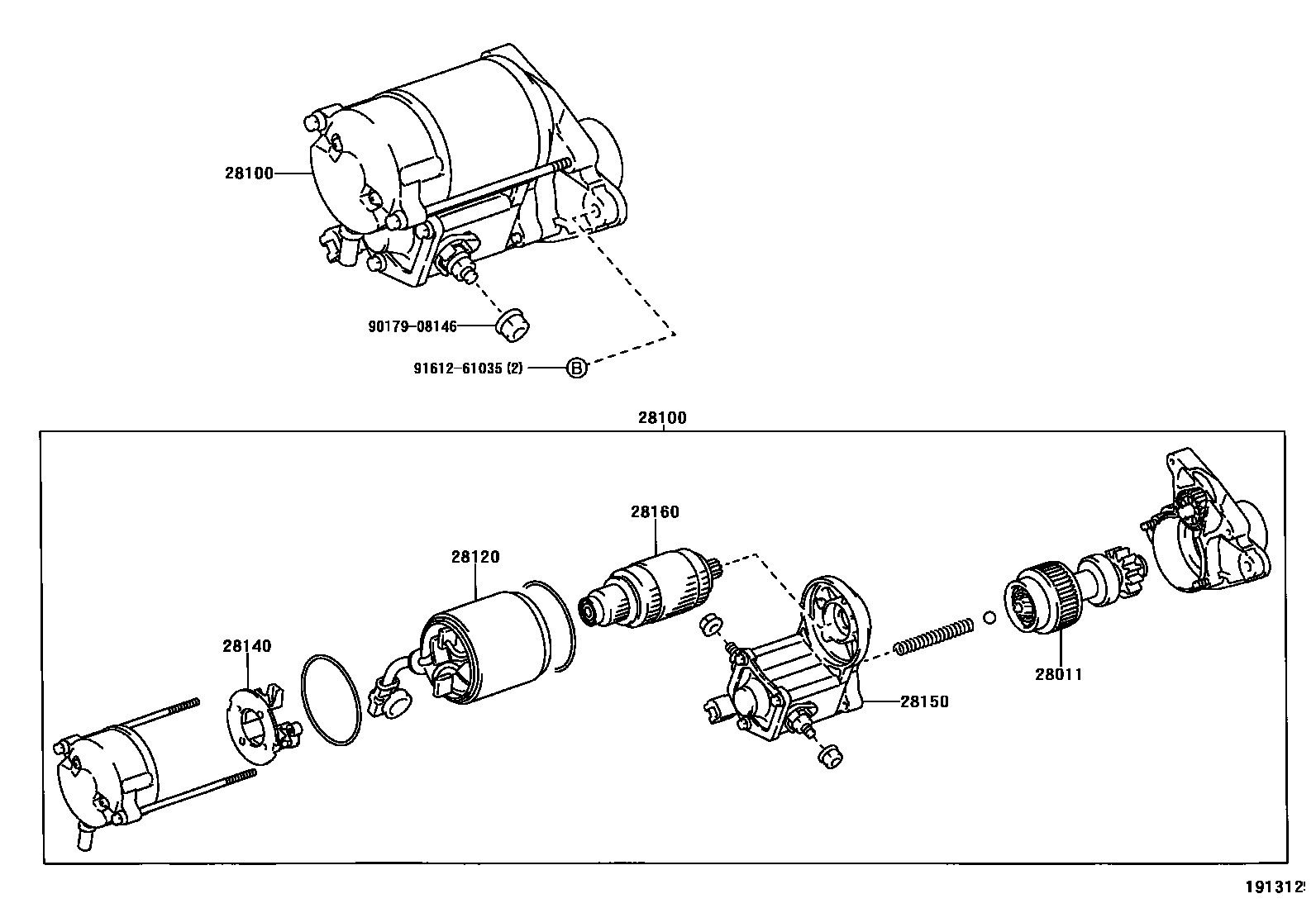

STARTER

0001 112V 1.4KW 0002 112V 1.0KW 0003 112V 1.3KW,1.6KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74060i2AZFE..ACU2#200011-200210

12V 1.0KW

main28011-74070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

12V 1.4KW

28100STARTER ASSY

main28100-03100i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main28100-28030i2AZFE..ACU2#200011-200210

main28100-28041i2AZFE,1MZFE..ACU2#,MCU2#200308

sub28100-28042

main28100-28051i2AZFE..ACU2#200308-200401

sub28100-28052

main28100-28052i2AZFE..ACU2#200401

sub28100-28053

main28100-74260i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

28120YOKE ASSY, STARTER

main28120-01030i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main28120-26071i2AZFE..ACU2#200011-200210

12V 1.0KW

main28120-28040i2AZFE,1MZFE..ACU2#,MCU2#200308

12V 1.6KW

sub28120-28060

main28120-28050i2AZFE..ACU2#200308

12V 1.3KW

sub28120-28080

main28120-66040i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

28140HOLDER ASSY, STARTER BRUSH

main28140-03010i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main28140-74010i2AZFE..ACU2#200011-200210

12V 1.0KW

main28140-74070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

28150SWITCH ASSY, MAGNET STARTER

main28150-03100i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main28150-28020i2AZFE..ACU2#200011-200210

12V 1.0KW

main28150-74270i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

28160ARMATURE ASSY, STARTER

main28160-01020i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main28160-26071i2AZFE..ACU2#200011-200210

12V 1.0KW

main28160-28040i2AZFE,1MZFE..ACU2#,MCU2#200308

main28160-74070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

9017908146

main90179-08146

9161261035

main91612-61035

8 parts on this diagram · 3 diagrams in section
