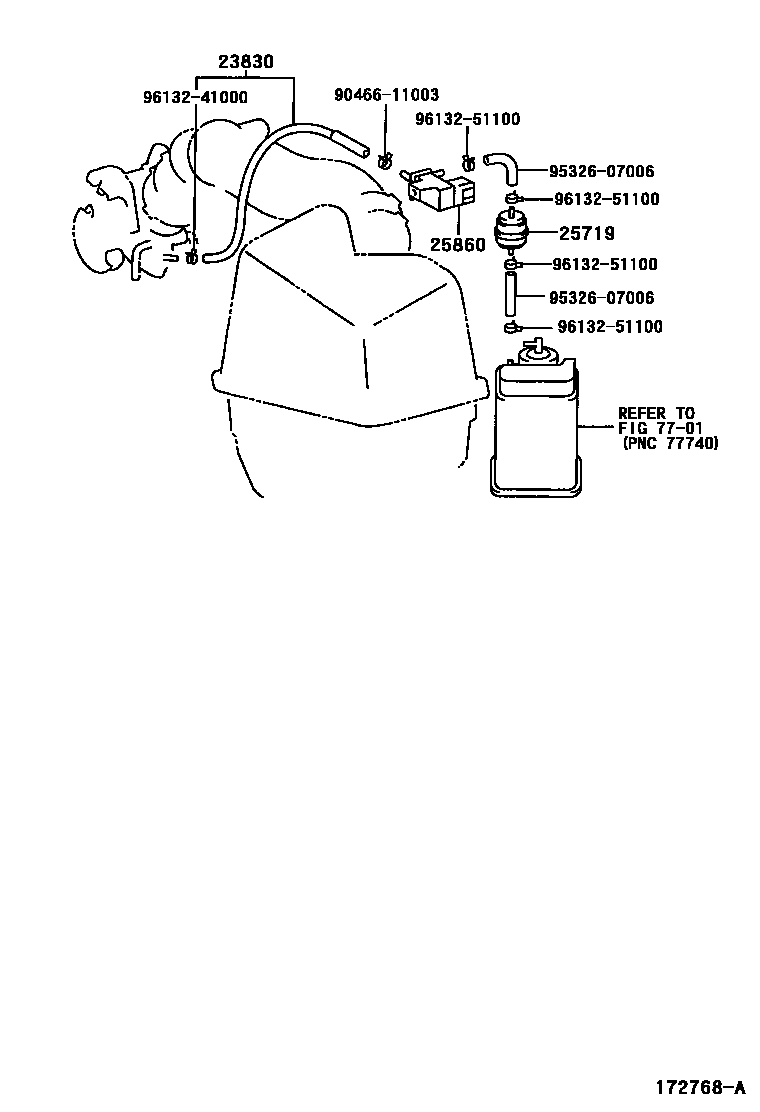

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-28040i2AZFE..ACU2#200011-200308

sub23829-28070

sub96132-41000

25719TANK, VACUUM SURGE

main25719-20020i1MZFE..MCU2#200011-200308

main25719-62040i2AZFE..ACU2#200308

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28010i2AZFE..ACU2#200011-200308

main25860-28050i2AZFE..ACU2#200308

main25860-62010i1MZFE..MCU2#200011-200308

7701

9046611003

main90466-11003

9532607006

main95326-07006

9613241000

main96132-41000

9613251100

main96132-51100

8 parts on this diagram · 4 diagrams in section
