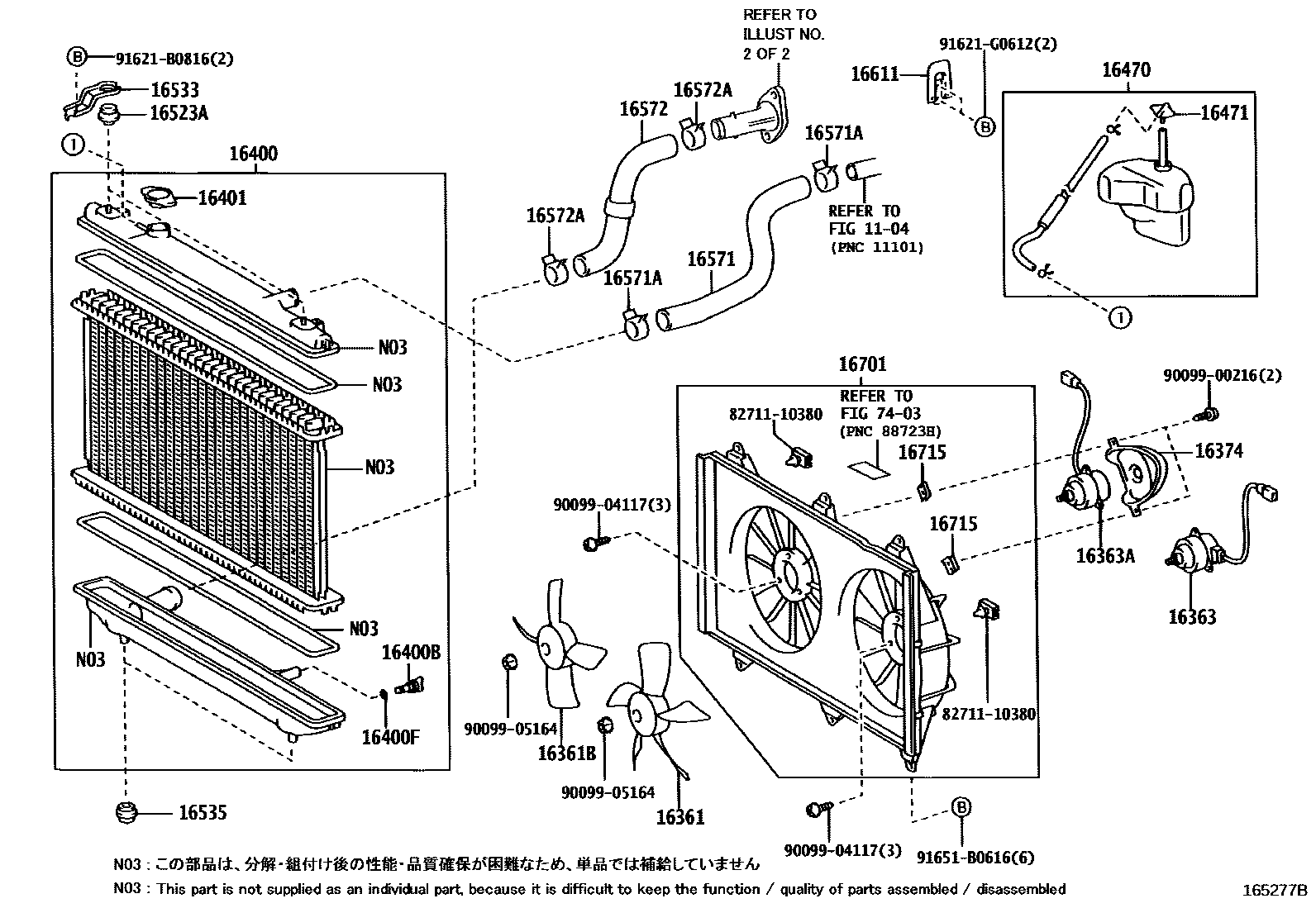

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1104

16361FAN

main16361-20140i1MZFE..MCU2#200011-200308

main16361-74140i2AZFE..ACU2#200011-200308

16361BFAN, NO.2

main16361-20050i1MZFE..MCU2#200011-200308

main88453-33010i2AZFE..ACU2#200011-200308

16363MOTOR, COOLING FAN

main16363-20200i1MZFE..MCU2#200011-200308

main16363-74280i2AZFE..ACU2#200011-200705

16363AMOTOR, COOLING FAN, NO.2

main16363-20190i1MZFE..MCU2#200011-200305

sub16363-20370

main16363-20370i1MZFE..MCU2#200305-200308

sub16363-31330

main16363-74290i2AZFE..ACU2#200011-200705

16374INSULATOR, COOLING FAN MOTOR

main16366-28130i2AZFE..ACU2#200011-200308

16400RADIATOR ASSY

main16400-20230i1MZFE..MCU2#200011-200308

sub16400-20220

sub16407-7A130

main16400-28250i2AZFE..ACU2#200011-200308

sub16400-28240

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1MZFE..MCU2#200011-200308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2AZFE..ACU2#200011-200308

16401CAP SUB-ASSY, RADIATOR

main16401-62100i1MZFE..MCU2#200011-200308

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-20070i1MZFE..MCU2#200011-200308

main16470-20100i2AZFE..ACU2#200308

16471CAP SUB-ASSY, RESERVE TANK

main16405-20050i1MZFE..MCU2#200011-200308

main16405-20090i1MZFE..MCU2#200308

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i2AZFE..ACU2#200011-200308

16533SUPPORT, RADIATOR, UPPER

main16533-20010i1MZFE..MCU2#200011-200308

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1MZFE..MCU2#200011-200308

main16535-74210i2AZFE..ACU2#200011-200308

16571HOSE, RADIATOR, INLET

main16571-20050i1MZFE..MCU2#200011-200308

main16571-28110i2AZFE..ACU2#200011-200308

main16571-28210i2AZFE..ACU2#200308

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001i1MZFE..MCU2#200206-200308

main90467-37005i2AZFE..ACU2#200204-200206

main90467-37006i1MZFE..MCU2#200011-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-20070i1MZFE..MCU2#200011-200308

main16572-28070i2AZFE..ACU2#200011-200308

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i2AZFE..ACU2#200206-200308

main90467-37005i2AZFE..ACU2#200204-200206

main90467-37006i1MZFE..MCU2#200011-200204

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-74170i1MZFE..MCU2#200011-200308

16701SHROUD SUB-ASSY, FAN

main16711-20130i1MZFE..MCU2#200011-200308

main16711-28190i2AZFE..ACU2#200011-200308

16715BRACKET, FAN SHROUD

main88688-18030i2AZFE..ACU2#200011-200308

7403

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009900216

main90099-00216

9009904117

main90099-04117

9009905164

main90099-05164

91621B0816

main91621-B0816

91621G0612

main91621-G0612

91651B0616

main91651-B0616

30 parts on this diagram · 7 diagrams in section
