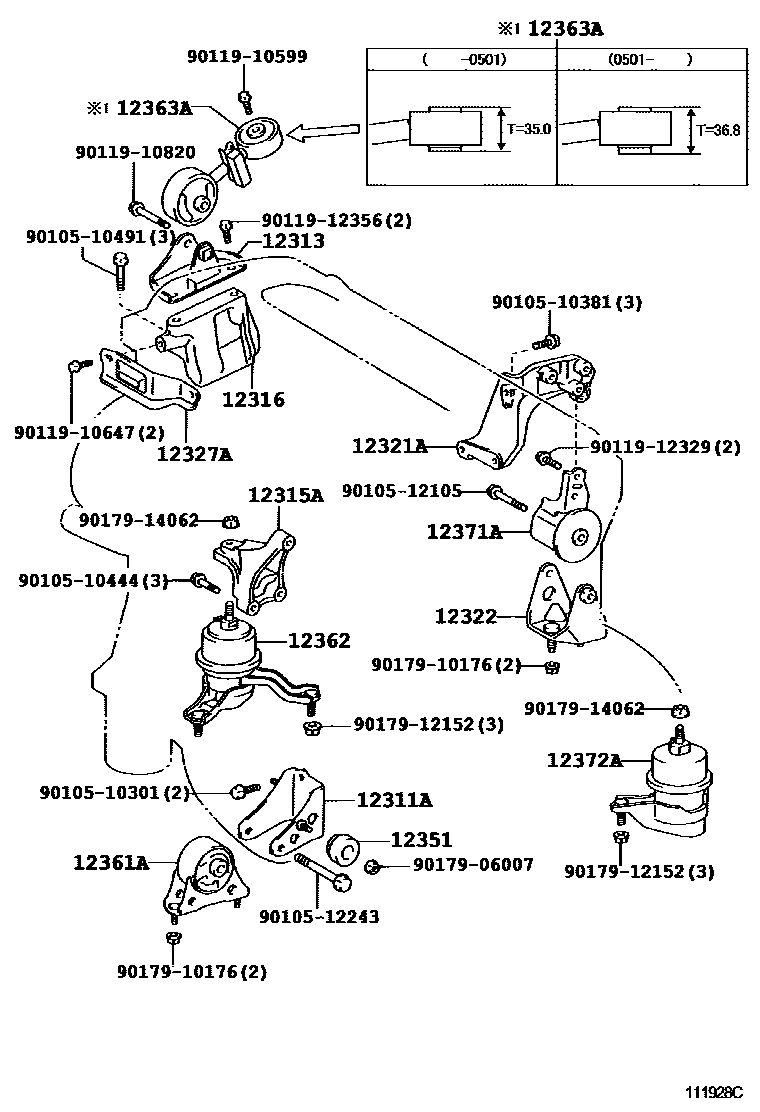

MOUNTING

0001 1 0002 1 0003 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-20060i1MZFE..MCU2#200011-200410

main12311-20070i1MZFE..MCU2#200410

main12311-28020i2AZFE..ACU20200011-200308

main12311-28030i2AZFE..ACU25200011-200308

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-20060i1MZFE..MCU2#200011-200308

main12313-20070i1MZFE..MCU20200011-200308

main12313-28010i2AZFE..ACU2#200011-200308

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-20020i1MZFE..MCU2#200011-200308

main12315-20030i1MZFE..MCU2#200011-200308

main12315-20040i1MZFE..MCU2#200308

main12315-28010i2AZFE..ACU20200011-200308

main12315-28020i2AZFE..ACU25200011-200308

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-20020i1MZFE..MCU2#200011-200308

main12316-28050i2AZFE..ACU2#200011-200308

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-20090i1MZFE..MCU25200011-200308

main12321-20100i1MZFE..MCU20200011-200308

main12321-28030i2AZFE..ACU25200011-200212

sub12321-28031

main12321-28031i2AZFE..ACU25200212-200308

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-20040i1MZFE..MCU2#200308

main12322-28020i1MZFE..MCU2#200011-200705

sub12322-20040

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-20020i1MZFE..MCU2#200011-200409

main12327-20030i1MZFE..MCU2#200409

main12327-28020i2AZFE..ACU2#200011-200308

12351DAMPER, ENGINE MOUNTING

main12351-28010i2AZFE..ACU2#200011-200308

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28100i2AZFE..ACU2#200011-200308

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-20020i1MZFE..MCU20200011-200308

main12362-20030i1MZFE..MCU25200011-200308

main12362-20040i1MZFE..MCU20200308

main12362-20050i1MZFE..MCU25200308

main12362-28020i2AZFE..ACU2#200011-200308

12363AROD, ENGINE MOVING CONTROL

main12363-20080i1MZFE..MCU20200011-200308

main12363-20090i1MZFE..MCU25200011-200308

main12363-20110i1MZFE..MCU2#200308-200501

main12363-20111i1MZFE..MCU2#200501

main12363-28020i2AZFE..ACU25200011-200308

main12363-28050i2AZFE..ACU20200011-200308

main12363-28120i2AZFE..ACU20200308-200501

main12363-28121i2AZFE..ACU20200501

main12363-28130i2AZFE..ACU25200308-200501

main12363-28131i2AZFE..ACU25200501

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-20080i1MZFE..MCU20200011-200308

main12371-20100i1MZFE..MCU20200308

main12371-20110i1MZFE..MCU25200308

main12371-28010i2AZFE..ACU25200011-200308

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-20060i1MZFE..MCU20200308

main12372-20070i1MZFE..MCU20200011-200308

main12372-20080i1MZFE..MCU25200011-200308

main12372-28020i2AZFE..ACU2#200011-200308

9010510301

main90105-10301

9010510381

main90105-10381

9010510444

main90105-10444

9010510491

main90105-10491

9010512105

main90105-12105

9010512243

main90105-12243

9011910599

main90119-10599

9011910647

main90119-10647

9011910820

main90119-10820

9011912329

main90119-12329

9011912356

main90119-12356

9017906007

main90179-06007

9017910176

main90179-10176

9017912152

main90179-12152

9017914062

main90179-14062

28 parts on this diagram · 3 diagrams in section
