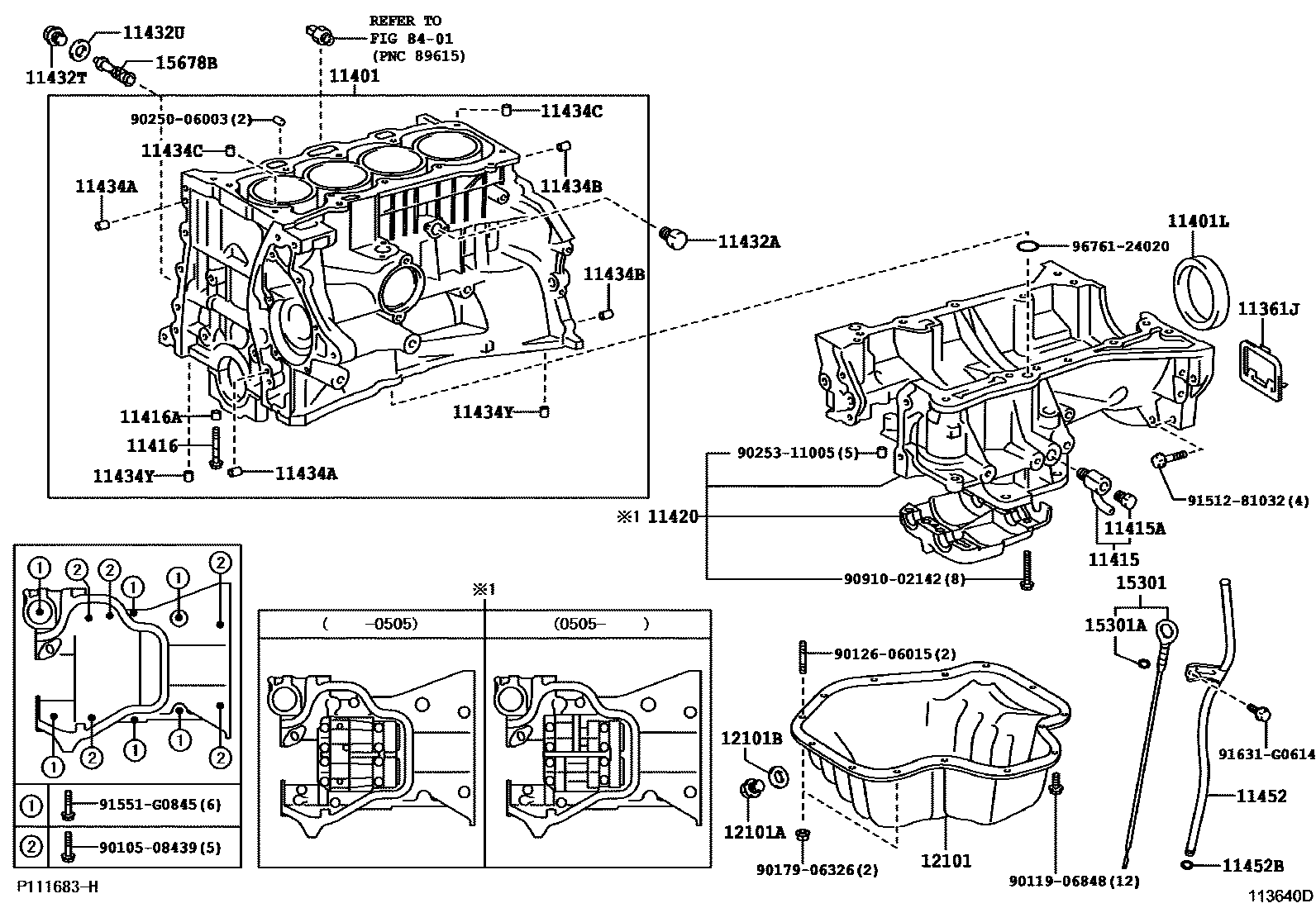

CYLINDER BLOCK

0001 1 0002 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-20011i1MZFE..MCU2#200011-200308

main11361-28010i2AZFE..ACU2#200308

11401BLOCK SUB-ASSY, CYLINDER

main11401-29556i1MZFE..MCU20200308

main11401-29566i1MZFE..MCU25200308

main11410-29105i2AZFE..ACU2#200308-200508

main11410-29325i2AZFE..ACU2#200508-200608

main11410-29326i2AZFE..ACU2#200608

11401LSEAL, ENGINE REAR OIL

main90311-89003i2AZFE..ACU2#200011-200308

sub90311-89007

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i1MZFE..MCU25200011-200308

main90910-09120i2AZFE..ACU2#200011-200308

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i2AZFE..ACU2#200011-200308

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02114×16i1MZFE..MCU2#200011-200308

main90910-02124×10i2AZFE..ACU2#200011-200308

sub90910-02206

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i2AZFE..ACU2#200011-200308

11420CRANKCASE ASSY, STIFFENING

main11420-28011i2AZFE..ACU2#200308-200505

sub11420-0H020

main11420-28031i2AZFE..ACU2#200508

sub11420-28032

main11420-28040i2AZFE..ACU2#200505-200508

main11420-28901i2AZFE..ACU2#200011-200112

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i2AZFE..ACU2#200011-200308

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i2AZFE..ACU2#200308

main90341-20013i1MZFE..MCU2#200308

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i2AZFE..ACU2#200011-200304

main90430-14011i2AZFE..ACU2#200304-200308

main90430-16009i1MZFE..MCU2#200308

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074×2i2AZFE..ACU2#200011-200302

main90250-08120×2i2AZFE..ACU2#200302-200308

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i2AZFE..ACU2#200011-200308

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i1MZFE..MCU2#200011-200308

main90253-14003×2i2AZFE..ACU2#200011-200308

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i1MZFE..MCU2#200308

main90250-08074×2i2AZFE..ACU2#200011-200308

11452GUIDE, OIL LEVEL GAGE

main11452-20020i1MZFE..MCU2#200308

main11452-28010i2AZFE..ACU2#200011-200301

main11452-28011i2AZFE..ACU2#200301-200308

main11452-28040i2AZFE..ACU2#200510

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i2AZFE..ACU2#200011-200308

12101PAN SUB-ASSY, OIL

main12101-28030i2AZFE..ACU2#200308

main12111-20032i1MZFE..MCU2#200011-200308

main12111-20060i1MZFE..MCU2#200308

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2AZFE..ACU2#200308

main90341-12026i2AZFE..ACU2#200011-200210

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2AZFE..ACU2#200308

15301GAGE SUB-ASSY, OIL LEVEL

main15301-20021i1MZFE..MCU2#200308

main15301-28020i2AZFE..ACU2#200011-200301

main15301-28050i2AZFE..ACU2#200301-200304

main15301-28051i2AZFE..ACU2#200304-200308

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AZFE..ACU2#200301-200304

15678BFILTER, OIL CONTROL VALVE

main15678-28010i2AZFE..ACU2#200011-200308

8401

9010508439

main90105-08439

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9025311005

main90253-11005

9091002142

main90910-02142

9151281032

main91512-81032

91551G0845

main91551-G0845

91631G0614

main91631-G0614

9676124020

main96761-24020

35 parts on this diagram · 2 diagrams in section
